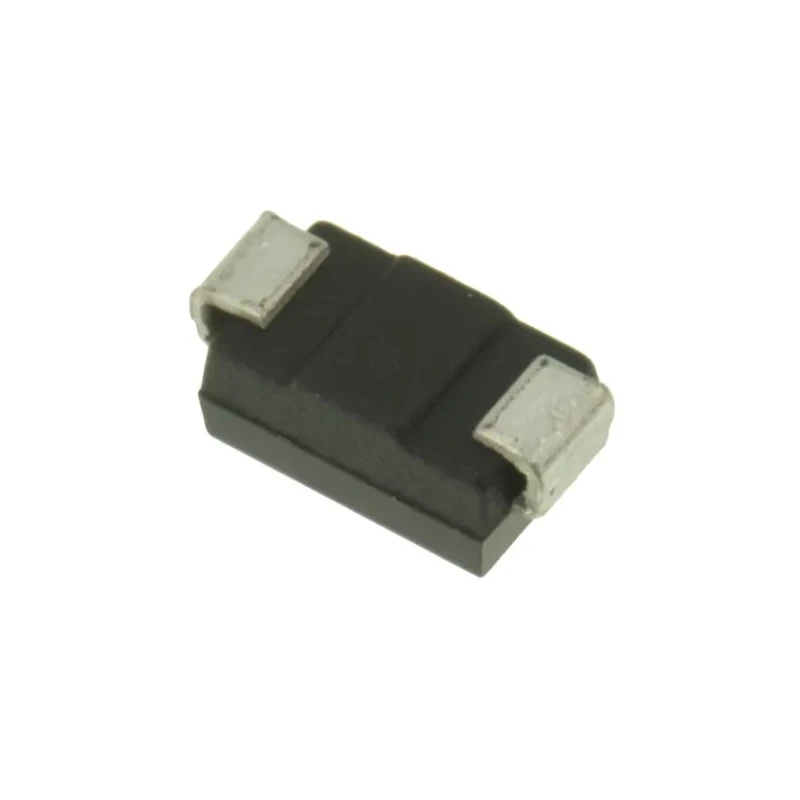

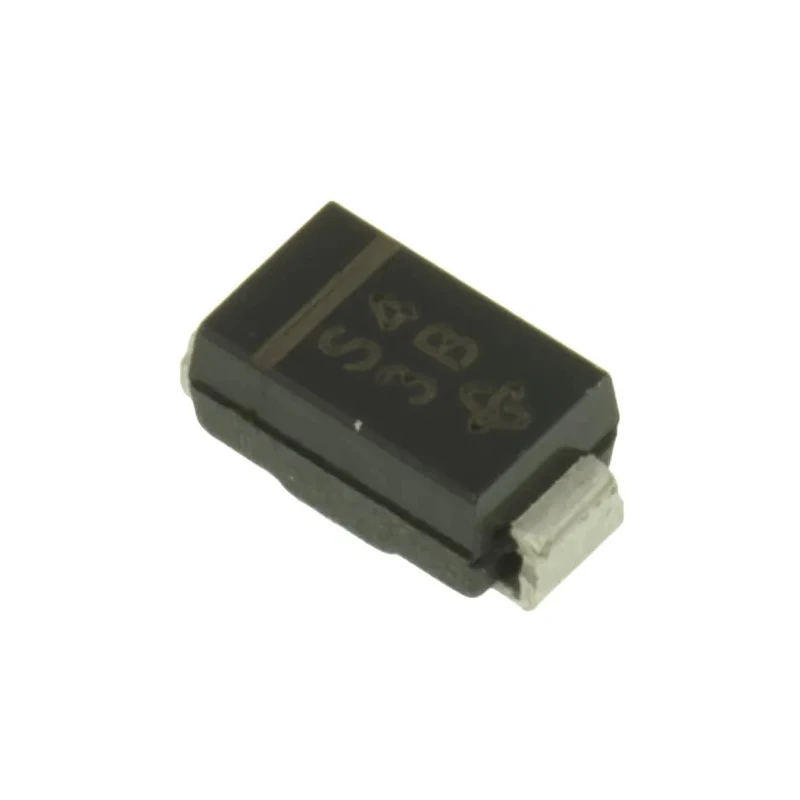

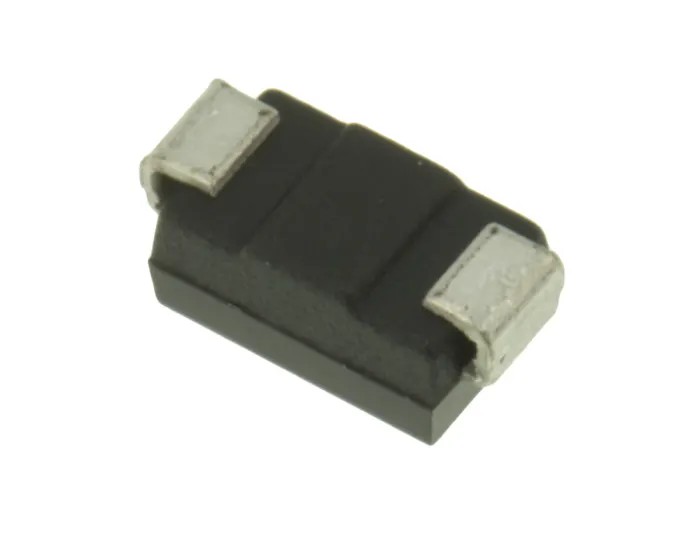

Vishay 40 V 1 A Schottky Diode 2-Pin Surface Mount DO-214AC Package SS14-E3/61T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.09mm |
| Length | 4.5mm |
| Model | SS14-E3/61T |
| Width | 2.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | +150°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 6mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 500mV |
| Taiwan Semiconductor 40 V 1 A Diode Schottky 2-Pin DO-214AC SS14 R2Brand | Taiwan Semiconductor |
Key Features
- Designed for use in low voltage, high frequency applications including DC/DC converters and polarity protection.
- Features low forward voltage drop for enhanced efficiency.
- Over-voltage protection guard ring enhances device reliability.
- Wide operating temperature range from -65°C to +150°C.
- Compact dimensions with length 4.5 mm, width 2.9 mm, and height 2.09 mm.
- Supports peak non-repetitive forward surge currents up to 40 A.
- Schottky barrier rectifier technology for low power losses.
- Maximum continuous forward current rating of 1 A and peak reverse repetitive voltage of 40 V.
Product Description
Vishay SS14-E3/61T is a Schottky diode with a maximum continuous forward current of 1 A and peak reverse repetitive voltage of 40 V, manufactured in a 2-pin surface mount DO-214AC (SMA) package. This diode features an over-voltage protection guard ring and a low forward voltage drop, making it highly efficient for power conversion and rectifying applications.
It operates effectively in a temperature range from -65°C to +150°C, providing robustness for demanding environments. Its compact size, measuring 4.5 mm in length, 2.9 mm in width, and 2.09 mm in height, allows for space-saving electronic assemblies.
The Schottky barrier rectifier design minimizes power losses and supports peak non-repetitive forward surge currents up to 40 A, making it suitable for high frequency inverters, freewheeling circuits, DC/DC converters, and polarity protection roles in industrial, automotive, HVAC, and electronic manufacturing sectors.
Designed for low voltage, high frequency switching applications. Low forward voltage drop reduces power dissipation and improves efficiency. Over-voltage protection guard ring ensures device longevity. Wide operating temperature range from -65°C up to +150°C allows use in harsh environments.
Compact DO-214AC surface mount package enables space-efficient design integration. High surge current capability supports transient conditions without damage. Single diode configuration ideal for rectification and protection in circuits.
Reliable performance in industrial, laboratory, and commercial electronics.
This Vishay Schottky diode SS14-E3/61T combines efficiency and durability in a compact footprint, suitable for advanced electronic circuit designs requiring fast switching and low forward voltage drop.
Explore more components like the Vishay SS14-E3/61T in the Schottky Diodes & Rectifiers category on EnvMart for your electronic and semiconductor needs.
