Vishay Bridge Rectifier 400 V 300 A 4-Pin Single GBPC2504-E4/51

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 400 V 300 A 4-Pin Single GBPC2504-E4/51

Name: Vishay Bridge Rectifier 400 V 300 A 4-Pin Single GBPC2504-E4/51
Brand: Vishay
SKU: 200787
Price: 4.7 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	7.62mm
Length	28.8mm
Model	GBPC2504-E4/51
Width	28.8mm
Mount Type	Screw
Mounting Torque	20 inches-lbs. max
Series	GBPC25
Configuration	Single
Maximum Operating Temperature	150°C
Case	GBPC, GBPC-W
Package Type	GBPC
Minimum Operating Temperature	-55°C
Polarity	As marked, positive lead by beveled corner
Terminals	Nickel plated on faston lugs or silver plated on
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	400V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	300A
Forward Current If	25A
Peak Forward Voltage Vf	1.1V
Vishay Bridge Rectifier, 200 V 300 A, 4-Pin SingleBrand	Vishay
Universal 3-way terminals	snap-on, wire wrap-around, or PCB mounting

Key Features

This bridge rectifier features high surge current capability of 300 A peak non-repetitive forward surge current.
Designed for screw mount with a package type GBPC suitable for industrial applications.
Operates within a temperature range of -55°C to a maximum of 150°C.
Low peak forward voltage drop of 1.1 V ensures efficient power conversion.
Universal 3-way terminals support snap-on, wire wrap-around, or PCB mounting for flexible installation.
Nickel plated faston lugs or silver plated wire leads ensure reliable terminals compliant with J-STD-002 and JESD22-B102 standards.
Compact dimensions with 28.8 mm length and width, and 7.62 mm height for space-saving designs.
Positive lead identified by beveled corner for correct polarity connection.

Product Description

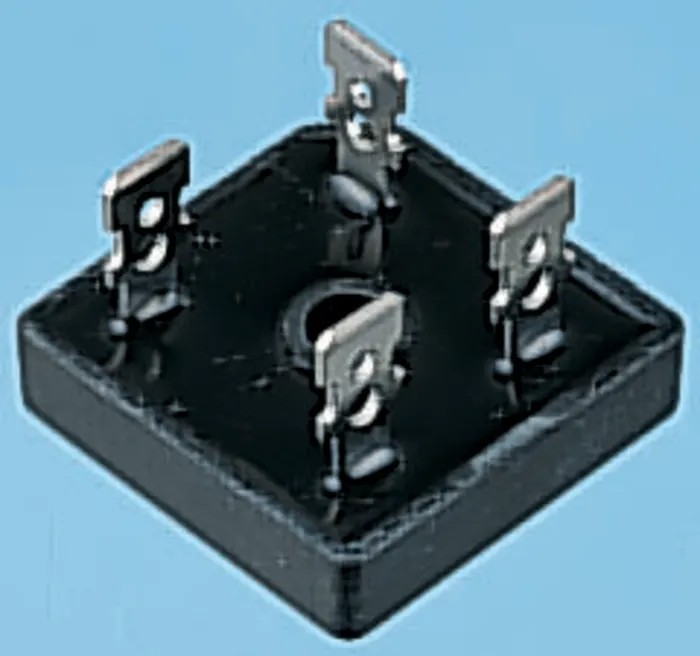

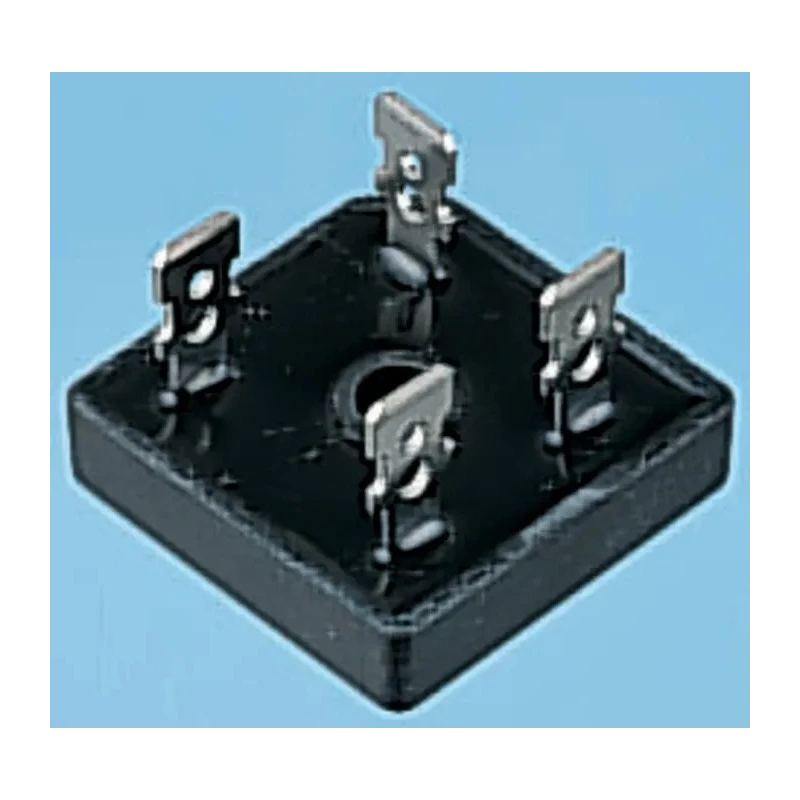

Vishay GBPC2504-E4/51 Bridge Rectifier is a high-performance 4-pin single-phase device designed for converting alternating current (AC) to direct current (DC) using full-wave rectification. Rated for a peak reverse repetitive voltage of 400 V and a forward current of 25 A, it is capable of handling surge currents up to 300 A.

The bridge rectifier package, GBPC type, supports screw mounting and meets commercial grade standards with RoHS compliance. The device operates reliably within a wide temperature range from -55°C minimum to 150°C maximum, ensuring stable performance in various industrial environments.

Featuring low thermal resistance and a peak forward voltage drop of 1.1 V, it optimizes power efficiency while minimizing losses. The universal 3-way terminal design allows installation flexibility, supporting snap-on, wire wrap-around, and printed circuit board (PCB) mounting options.

Terminals are nickel plated on faston lugs or silver plated on wire leads, conforming to industry solderability standards for robust electrical connections. The rectifier's polarity is clearly marked by a beveled corner, enabling accurate circuit assembly.

Its compact dimensions of 28.8 mm length and width and 7.62 mm height make it suitable for space-constrained applications. High surge current capacity for durability under transient conditions. Universal terminal mounting provides versatile installation.

RoHS-compliant molding compound with UL 94 V-0 flammability rating enhances safety. Applications include power supply rectification for home appliances, office equipment, and industrial automation systems. Manufactured in China adhering to quality standards.

This bridge rectifier is a reliable component choice in electronic and electrical semiconductor applications requiring efficient AC to DC conversion with compact form factor and robust mechanical features.

Explore more Vishay semiconductor components and Bridge Rectifiers in EnvMart for comprehensive industrial and engineering solutions.
