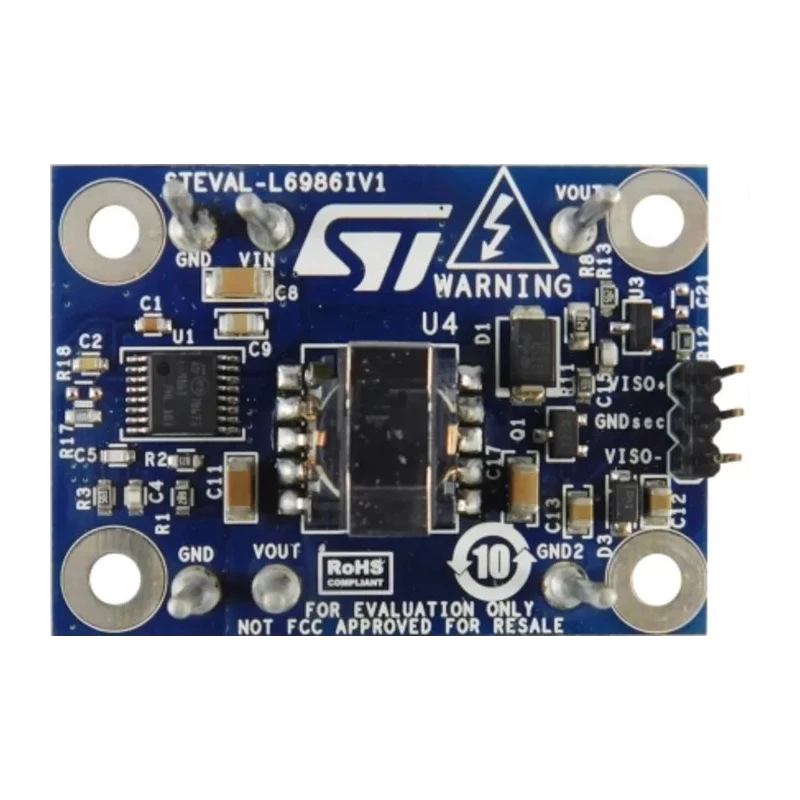

STMicroelectronics Evaluation Board Step Down Regulator for L6986I STEVAL-L6986IV1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-L6986IV1 |
| For Use With | L6986I |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Kit Name | Evaluation Board |
Key Features
- The board is based on a 38 V, 5 W synchronous step-down switching regulator for isolated buck topology.
- Primary output voltage is accurately adjustable for precise power control.
- Includes an isolated secondary output generated by a transformer to enable versatile power delivery.
- Features adjustable soft start time to reduce inrush current and stress on components.
- Internal primary current limiting protects the device from overload conditions.
- Thermal shutdown circuitry safeguards the board against overheating.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
STMicroelectronics STEVAL-L6986IV1 evaluation board is an advanced power management development tool based on the L6986I integrated circuit, a 38 V, 5 W synchronous step-down switching regulator designed to work in isolated buck topology applications. This evaluation board facilitates the testing and development of power regulation solutions with high efficiency and safety features.
The primary output voltage of the evaluation board can be adjusted accurately, providing fine control essential for sensitive industrial, laboratory, and commercial electronic applications. Additionally, the board generates an isolated secondary output using a transformer, supporting innovative designs where isolation is required between power stages.
The integrated adjustable soft start feature allows smoother power-up sequences, reducing inrush current and enhancing system longevity. The board also incorporates internal primary current limiting to prevent damage from excessive current, as well as a thermal shutdown mechanism to protect against overheating scenarios.
This product complies with RoHS standards, ensuring that it meets environmental and health safety regulations. The evaluation board is suitable for use in Power Management, motor control, and robotics development environments, offering engineers and designers a reliable platform for prototyping and testing.
The evaluation board supports efficient power conversion for industrial and scientific instrumentation. It provides an effective solution for isolated power supply applications requiring precision and safety. The adjustable soft start and protective features increase device durability under variable operating conditions.
Designed to facilitate rapid development cycles with easy integration in development setups. Suitable for educational purposes within STEM and electronics training environments. Explore the range of STMicroelectronics evaluation boards for comprehensive support in power electronics and motor control applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary output voltage of this evaluation board is accurately adjustable, allowing for precise power control in various applications.
The L6986I step-down regulator can handle a maximum input voltage of 38 V.
Key features include adjustable soft start time, internal primary current limiting, thermal shutdown circuitry, and compliance with RoHS standards.
The board includes internal primary current limiting to prevent overload and thermal shutdown circuitry to protect against overheating.
This evaluation board is suitable for power management, motor control, and robotics development environments, as well as scientific instrumentation.
The STEVAL-L6986IV1 evaluation board is manufactured in India.
This evaluation board complies with RoHS standards, ensuring it meets environmental and health safety regulations.
The adjustable soft start feature reduces inrush current during power-up, which decreases stress on components and enhances system longevity.
The L6986I is designed for use in isolated buck topology applications, which allows for versatile power delivery.
The evaluation board itself is included, which is designed for testing and development of power regulation solutions.
The isolated secondary output is generated by a transformer to enable innovative designs that require isolation between power stages.
The kit classification for this product is an Evaluation Board, which is intended for development and testing purposes.
