STMicroelectronics Power Management Evaluation Board Double Output Isolated SSR Flyback Converter 12 V 0.7 STEVAL-VP26K02F

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Power Management Evaluation Board Double Output Isolated SSR Flyback Converter 12 V 0.7 STEVAL-VP26K02F

Name: STMicroelectronics Power Management Evaluation Board Double Output Isolated SSR Flyback Converter 12 V 0.7 STEVAL-VP26K02F
Brand: STMicroelectronics
SKU: 161022
Price: 89.87 USD
Availability: InStock



Category Power Management Brand STMicroelectronics Condition New

Specifications

Country of Origin	Italy
Brand	STMicroelectronics
Model	STEVAL-VP26K02F
Kit Classification	Evaluation Board
Featured Device	STEVAL-VP26K02F
Kit Name	Isolated SSR Flyback
Double output voltage	12 V at 0.7 Arms (1 A peak) and 6 V at 200 mA

Key Features

The evaluation board uses the VIPER267KDTR offline high-voltage converter with 1050 V avalanche-rugged power section.
Operates with PWM at 60 kHz frequency jittering to reduce EMI.
Includes current limiting with a fixed set point of 700 mA and onboard soft-start.
Provides 12 V at 0.7 Arms (1 A peak) output and 6 V at 200 mA secondary voltage output.
Supports wide AC mains input range of 85 to 500 VAC for flexible operation.
Designed with safe auto-restart after fault and low standby power consumption.
Suitable for powering power line modems and analog/digital circuitry in industrial applications.

Product Description

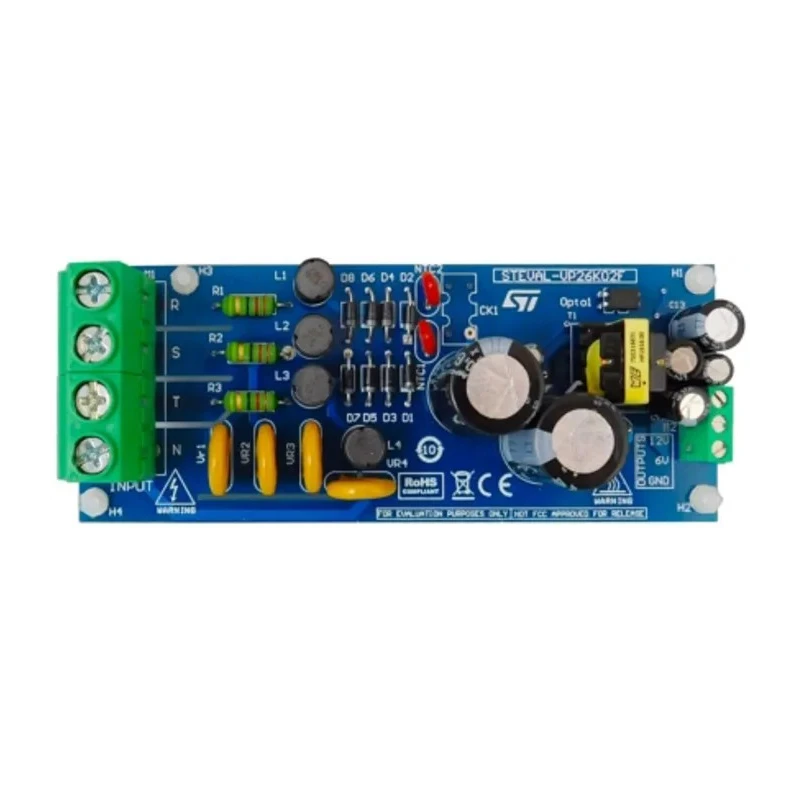

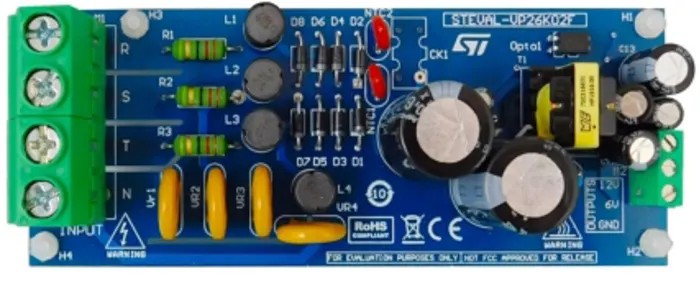

STMicroelectronics STEVAL-VP26K02F is a Power Management evaluation kit implementing a double output isolated SSR flyback converter. This evaluation board is specifically designed to supply smart meter and PLC systems with reliable power outputs.

The board is built around the VIPER267KDTR offline high-voltage converter featuring a robust 1050 V avalanche-rugged power section. It operates using PWM at 60 kHz with frequency jittering to reduce electromagnetic interference (EMI), ensuring stable operation under varying conditions.

Key features include a current limiting set point of 700 mA, onboard soft-start functionality, and a safe auto-restart mechanism after fault conditions, enhancing device safety and longevity. The design achieves low standby power to improve energy efficiency.

The power supply delivers dual output voltages: 12 V at up to 0.7 Arms (with a peak current of 1 A) intended for powering power line modems and analog circuitry, and 6 V at 200 mA for digital circuitry and other low voltage components.

This evaluation board supports a wide input AC mains voltage range from 85 to 500 VAC, suitable for single-phase or three-phase input systems operating between 50 and 290 VAC nominally, providing flexible deployment options for industrial and commercial power applications.

The evaluation board is ideal for use in industrial power management, smart metering, and programmable logic controller (PLC) supply systems. Its isolated SSR flyback topology ensures system isolation and reliable power delivery.

Low EMI and safety features make it suitable for sensitive electrical environments. Its comprehensive design enables rapid prototyping and evaluation for power supply development projects. Explore other Power Management development tools and evaluation boards in the Electronics & Electricals category at EnvMart.
