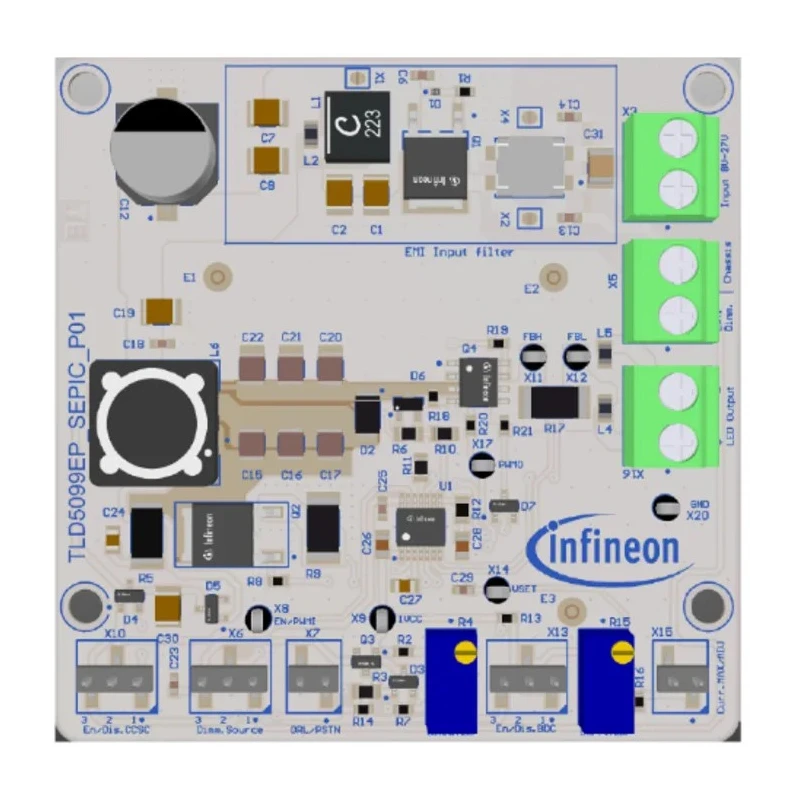

Infineon TLD5099EP SEPIC Evaluation Kit Boost Controller for High Power LED Application TLD5099EPSEPICEVALKTOBO1

Free Delivery in India | Lowest Global Shipping Charges

Infineon TLD5099EP SEPIC Evaluation Kit Boost Controller for High Power LED Application TLD5099EPSEPICEVALKTOBO1

Name: Infineon TLD5099EP SEPIC Evaluation Kit Boost Controller for High Power LED Application TLD5099EPSEPICEVALKTOBO1
Brand: Infineon
SKU: 173196



Category Power Management Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Model	TLD5099EPSEPICEVALKTOBO1
For Use With	High power LED application
Standards/Approvals	AEC-Q
Kit Classification	Evaluation Kit
Featured Device	TLD5099EP
Kit Name	TLD5099EP-SEPIC EVALK

Key Features

Designed specifically for high power LED drive applications.
Implements SEPIC topology for flexible power regulation.
Delivers up to 21 watts to the load with high efficiency.
Features an output current adjustment trimmer for precise control.
Includes power derating circuitry to protect the device.
Integrated embedded PWM engine enhances regulation performance.
Built-in Cold Crank Survival Circuit (CCSC) for automotive robustness.
Meets AEC-Q standards for automotive-grade reliability.

Product Description

Infineon's TLD5099EP SEPIC Evaluation Kit (model TLD5099EPSEPICEVALKTOBO1) is an advanced boost controller board designed for high power LED applications. It uses the SEPIC topology to provide stable and efficient power delivery, enabling up to 21 watts of output with efficiency exceeding 84%. This evaluation board allows designers to test and optimize LED lighting circuits effectively.

The kit features an output current adjustment trimmer for fine-tuning the LED current, power derating circuitry to protect the device from overheating or electrical stress, and an embedded PWM engine that manages the switching operations internally. Additionally, the board includes a Cold Crank Survival Circuit (CCSC) to ensure reliable operation in automotive environments during engine start conditions.

Certified to AEC-Q standards, the board meets automotive reliability requirements, making it suitable for automotive lighting and other robust high power LED applications. As an evaluation board, it offers designers a practical platform for development and prototyping with the TLD5099EP device.

Designed for high power LED applications requiring efficient power conversion. SEPIC topology enables flexible input voltage range and power regulation. Output current adjustment trimmer for precise LED current control. Power derating circuitry prevents device damage under stress conditions.

Embedded PWM engine for enhanced regulation and performance. Cold Crank Survival Circuit ensures dependable operation in automotive starts. Meets AEC-Q standards for automotive-grade applications. Evaluation kit enables practical testing and development of LED power circuits.

Featured device on the kit is the Infineon TLD5099EP power controller.

This evaluation kit is ideal for use in industrial, automotive, commercial LED lighting design, and prototyping environments. Its robust features and automotive-focused certifications support reliable and efficient LED driver development. Explore Infineon and Power Management components on EnvMart for additional design solutions and support.
