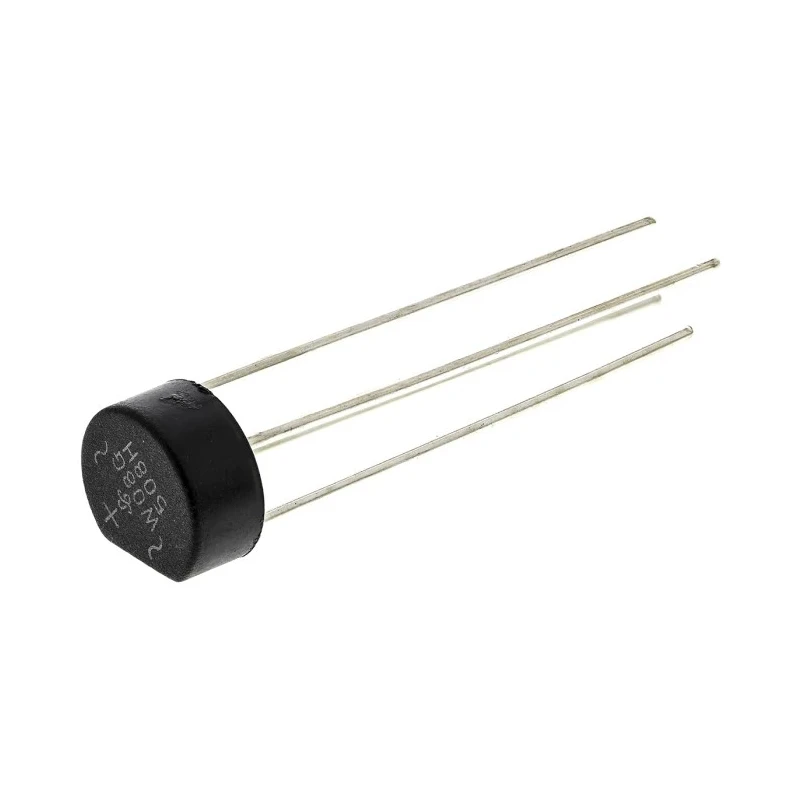

Vishay Bridge Rectifier 4-Pin Through Hole Package WOG, 800 V Peak Reverse Voltage, 50 A Peak Surge Current, 1.5 W08G-E4/51
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.86mm |
| Brand | Vishay |
| Height | 5.6mm |
| Length | 9.86mm |
| Model | W08G-E4/51 |
| Width | 8.84mm |
| Mount Type | Through Hole |
| Series | W08G |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Case | WOG |
| Package Type | WOG |
| Minimum Operating Temperature | -55°C |
| Polarity | As marked on body |
| Terminals | Silver plated leads, solderable per |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 1.5A |
| Peak Forward Voltage Vf | 1V |
| Material categorization | For definitions of compliance |
| SIL.BRIDGES 1A/800VBrand | NEUTRAL |
| Vishay Bridge Rectifier, 1.5A, 800V, 4-PinBrand | Vishay |
Key Features
- Supports peak reverse repetitive voltage of 800 volts.
- Forward current rating of 1.5 amperes for continuous operation.
- Includes four pins in a through-hole WOG package for easy PCB mounting.
- Operates reliably between -55°C and 150°C maximum temperature.
- Silver plated leads ensure solderability and durability.
- High surge current capability up to 50 amperes peak.
- Compact dimensions approximately 9.86mm length and 8.84mm width.
- Ideal for consumer power supplies, adapters, chargers, and lighting ballasts.
Product Description
Vishay W08G-E4/51 Bridge Rectifier is a high-performance semiconductor device designed for use in electronic circuits requiring AC to DC full-wave rectification. Featuring a 4-pin through-hole WOG package, this bridge rectifier supports a peak reverse repetitive voltage of 800 V and can handle surge currents up to 50 A, making it suitable for demanding power supply applications.
Constructed with high case dielectric strength and silver plated leads compliant with J-STD-002 for solderability, it ensures robust mechanical and electrical performance. The device offers typical leakage current less than 0.1 μA, enhancing efficiency and reliability in operation over a wide temperature range from -55°C to 150°C maximum.
The Vishay W08G series with model W08G-E4/51 is UL recognized under file number E54214 and meets commercial-grade RoHS compliance for environmental safety. Its compact dimensions and high surge capability make it ideal for use on printed circuit boards in power supplies, adapters, chargers, and lighting ballasts used in consumer and industrial electronics.
This bridge rectifier features a single-phase configuration with a forward current rating of 1.5 A and a peak forward voltage of 1 V, optimizing performance in AC/DC conversion. The silver plated terminals assure durable and easy soldering to the PCB, while clear polarity markings on the body facilitate correct installation.
Overall, Vishay's W08G-E4/51 bridge rectifier offers industrial-grade reliability suited to a broad range of applications in electronics manufacturing, HVAC, water treatment, and other commercial sectors requiring dependable DC power rectification.
Supports peak reverse repetitive voltage of 800 volts. Forward current rating of 1.5 amperes for continuous operation. Includes four pins in a through-hole WOG package for easy PCB mounting. Operates reliably between -55°C and 150°C maximum temperature.
Silver plated leads ensure solderability and durability. High surge current capability up to 50 amperes peak. Compact dimensions approximately 9.86mm length and 8.84mm width. Ideal for consumer power supplies, adapters, chargers, and lighting ballasts.
Manufactured with UL recognition and commercial-grade materials. Low leakage current of 5 microamperes and peak forward voltage of 1 volt. Explore our full selection of Bridge Rectifiers and other semiconductor components for your industrial and laboratory needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a peak reverse repetitive voltage of 800 volts.
The forward current rating is 1.5 amperes for continuous operation.
It operates reliably between -55°C and 150°C maximum temperature.
It can handle surge currents up to 50 amperes peak.
The compact dimensions are approximately 9.86mm in length and 8.84mm in width.
It includes four pins in a through-hole WOG package for easy PCB mounting.
The peak forward voltage is 1 volt.
It comes in a WOG package type, which is suitable for through-hole mounting.
Yes, it meets commercial-grade RoHS compliance for environmental safety.
The typical leakage current is less than 0.1 μA.
It features a single-phase configuration.
The country of origin is India.
