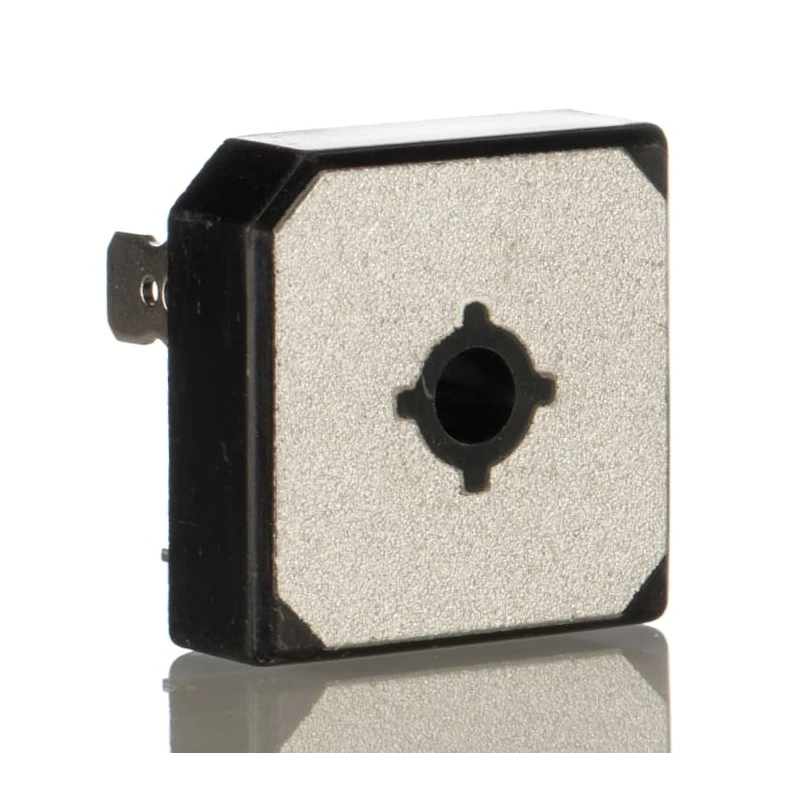

Vishay Bridge Rectifier 4-Pin Single Phase, Screw Mount, 600 V, 420 A, VS-26MB60A

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 4-Pin Single Phase, Screw Mount, 600 V, 420 A, VS-26MB60A

Name: Vishay Bridge Rectifier 4-Pin Single Phase, Screw Mount, 600 V, 420 A, VS-26MB60A
Brand: Vishay
SKU: 172288
Price: 10.7 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	9.8mm
Length	28.5mm
Model	VS-26MB60A
Width	28.5mm
Mount Type	Screw
Series	VS-26MB
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	D-34
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	600V
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	420A
Forward Current If	25A
Peak Forward Voltage Vf	1.11V
Universal, 3 way terminals	push-on, wrap around, or solder
Vishay Bridge Rectifier, 400 V 420 A, 4-Pin SingleBrand	Vishay

Key Features

Compact D-34 package with 4-pin configuration for ease of installation.
Screw mounting ensures secure and durable attachment.
Peak reverse repetitive voltage of 600 volts supports high-voltage circuits.
Forward current rating of 25 amperes for steady operation.
Peak non-repetitive forward surge current of 420 amperes for transient handling.
Operating temperature range from -55°C to 150°C for versatile environment use.
Nickel-plated terminals are compatible with lead-free solder (SAC305).
High thermal conductivity package with electrically insulated case optimizes heat dissipation.

Product Description

Vishay VS-26MB60A is a high-performance, single-phase Bridge Rectifier designed for efficient conversion of alternating current (AC) to direct current (DC). This component is encapsulated in a compact D-34 package with a 4-pin configuration, providing flexibility in mounting with screw terminals. Its 600 V peak reverse repetitive voltage rating and 25 A forward current capacity make it ideal for demanding industrial and instrumentation applications.

The device supports a peak non-repetitive forward surge current of 420 A, ensuring durability under transient surges. It operates reliably across an extensive temperature range from -55°C to 150°C. The nickel-plated terminals facilitate soldering using lead-free solder alloys, and the high thermal conductivity package with an electrically insulated case enhances thermal management, contributing to the component’s longevity and stable operation.

Designed with universal 3-way terminals (push-on, wrap around, or solder), the VS-26MB60A offers versatile installation options. Its UL E300359 approval attests to its adherence to stringent quality standards, making it a dependable choice for industrial electronics, power supplies, HVAC systems, and manufacturing equipment.

Compact D-34 package with 4-pin single-phase configuration. Screw mount type for robust installation. 600 V peak reverse repetitive voltage (Vrrm). 25 A forward current (If) rating. 420 A peak non-repetitive forward surge current (Ifsm).

Operating temperature from -55°C to 150°C. Nickel-plated terminals compatible with lead-free solder. High thermal conductivity package with electrically insulated case. UL E300359 approved for quality assurance. Applications include industrial and instrumentation use.
