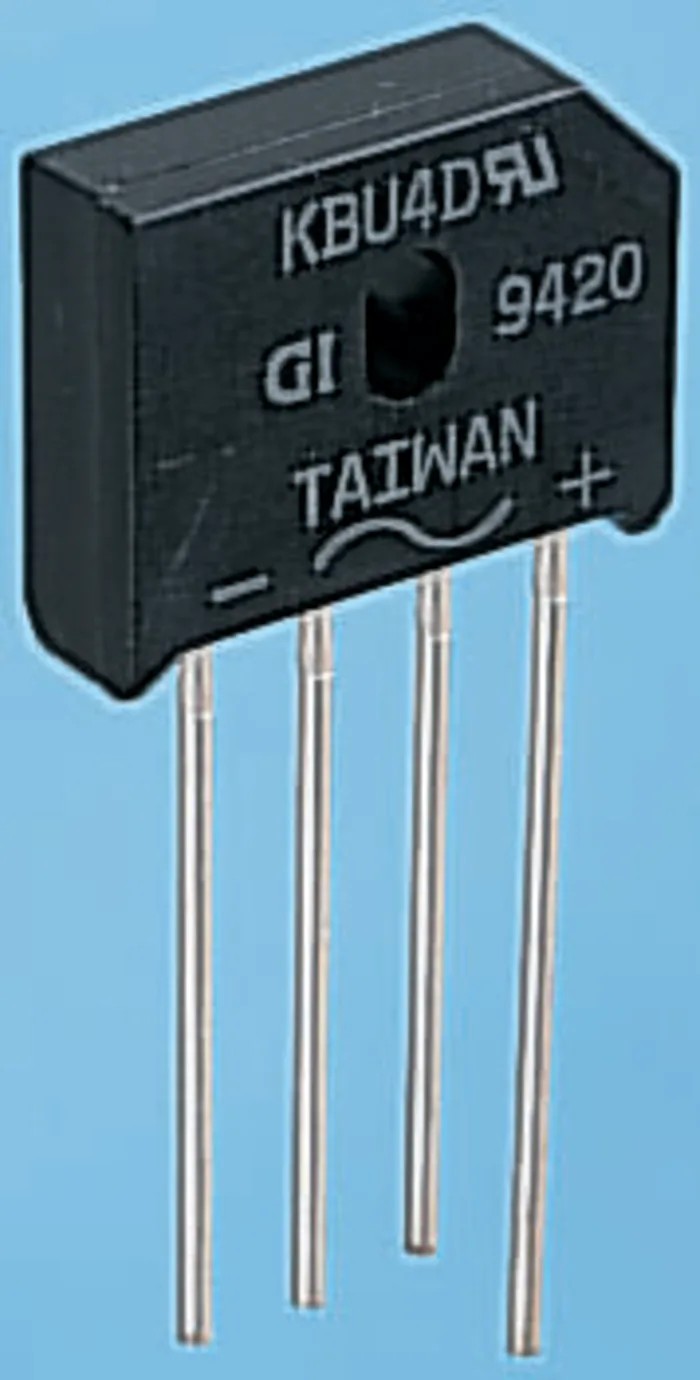

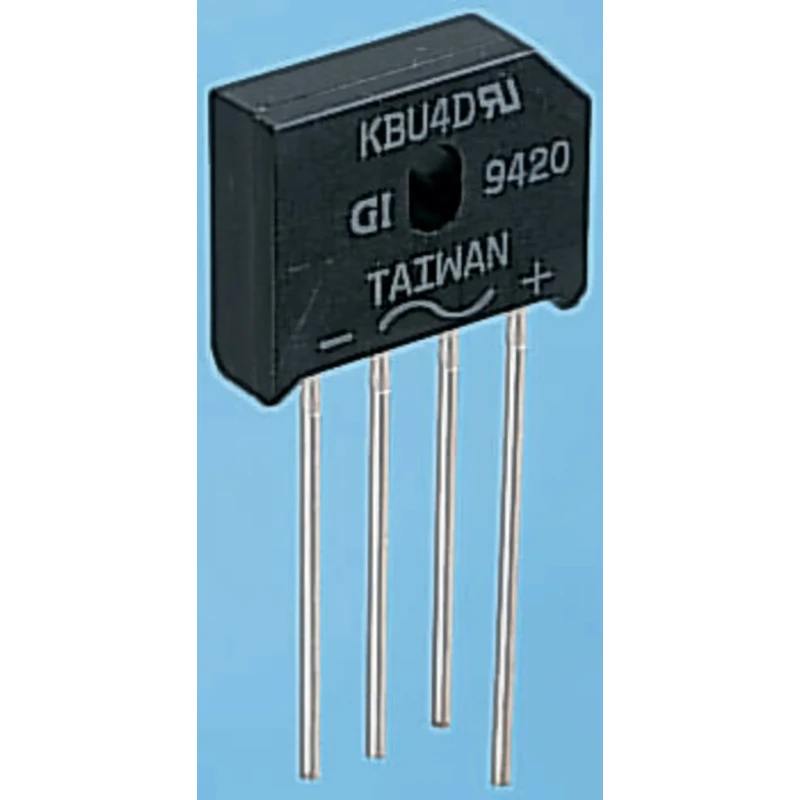

Vishay Bridge Rectifier, Through Hole, 200 V Peak Reverse Voltage, 200 A Peak Surge Current, 4-Pin Single KBU4D-E4/51

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier, Through Hole, 200 V Peak Reverse Voltage, 200 A Peak Surge Current, 4-Pin Single KBU4D-E4/51

Name: Vishay Bridge Rectifier, Through Hole, 200 V Peak Reverse Voltage, 200 A Peak Surge Current, 4-Pin Single KBU4D-E4/51
Brand: Vishay
SKU: 200772
Price: 2.95 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	19.3mm
Length	23.7mm
Model	KBU4D-E4/51
Width	7.1mm
Mount Type	Through Hole
Series	KBU4
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	KBU
Minimum Operating Temperature	-50°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	200V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Forward Current If	4A
Peak Forward Voltage Vf	1V
BRIDGE RECTIFR 4A/200VBrand	NEUTRAL
Vishay Bridge Rectifier, 4A, 200V, 4-PinBrand	Vishay

Key Features

Supports Peak Non-Repetitive Forward Surge Current of 200 A.
Operates reliably within temperature range of -50°C to 150°C.
Features low peak forward voltage drop of 1 V for high efficiency.
Compact dimensions of 23.7mm length, 7.1mm width, and 19.3mm height.
Designed for full-wave rectification in electronic circuits.
KBU package type with mounting hole for secure PCB attachment.
Suitable for SIL PCB through-hole mounting applications.
Provides minimal size with high thermal performance and surge current capability.

Product Description

Vishay KBU4D-E4/51 Bridge Rectifier is a highly reliable single-phase rectifier designed for converting alternating current (AC) to direct current (DC) in electronic circuits. It features a 4-pin single configuration with through hole mounting, making it ideal for printed circuit board (PCB) installations requiring secure mechanical fixation.

Operating at a peak reverse repetitive voltage (VRRM) of 200 V and forward current of 4 A, this device provides efficient full-wave rectification with minimal forward voltage drop of 1 V. Its robust construction supports a peak non-repetitive forward surge current (IFSM) of 200 A, allowing it to withstand high transient loads.

The component maintains stable performance across a broad temperature range from -50°C to 150°C, enhancing reliability in demanding industrial environments such as power supply systems, manufacturing electronics, and automation equipment. The compact size (23.7mm length, 7.1mm width, 19.3mm height) and KBU package including a centre hole allow easy mounting and optimal heat dissipation.

Supports Peak Non-Repetitive Forward Surge Current of 200 A. Operates reliably within temperature range of -50°C to 150°C. Features low peak forward voltage drop of 1 V for high efficiency. Compact dimensions of 23.7mm length, 7.1mm width, and 19.3mm height.

Designed for full-wave rectification in electronic circuits. KBU package type with mounting hole for secure PCB attachment. Suitable for SIL PCB through-hole mounting applications. Provides minimal size with high thermal performance and surge current capability.

Widely used in power supply, industrial equipment, and electronic component assemblies.

This bridge rectifier does not carry specific automotive or other certifications but is suited for commercial, industrial, electronics manufacturing, and laboratory use cases requiring reliable high current rectification.
