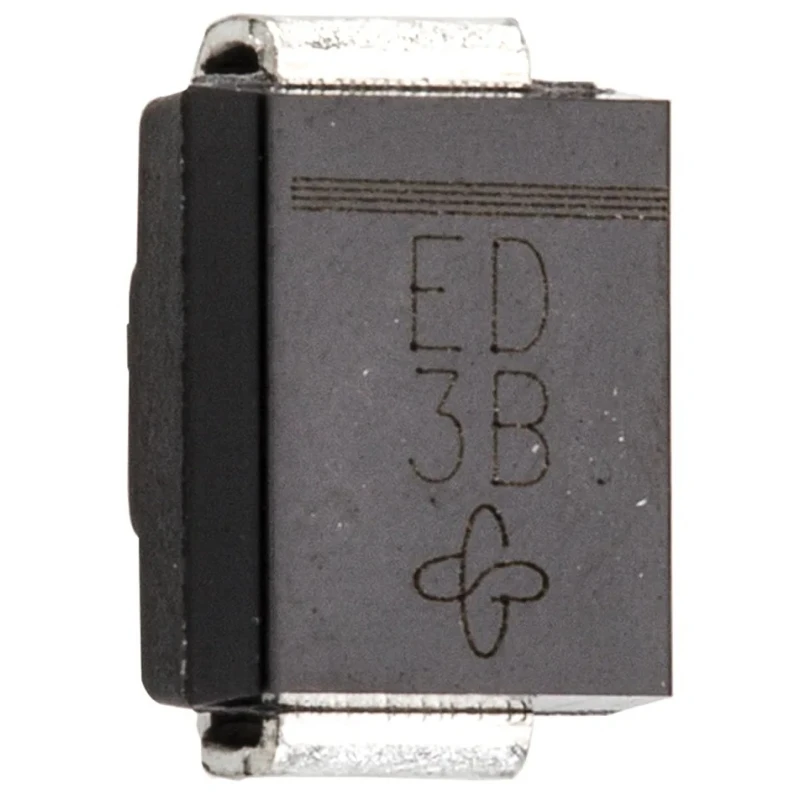

Vishay 200 V 2 A General Purpose Diode 2-Pin DO-214AA ES2D-E3/52T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | ES2D-E3/52T |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | ES2D |
| Maximum Operating Temperature | 150°C |
| Case | DO-201AD Moulding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Polarity | Colour band denotes cathode end |
| Terminals | Matte tin-plated leads, solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 900mV |
| Peak Reverse Recovery Time trr | 30ns |
| Vishay 200V 2A, Silicon Junction Diode, 2-Pin DO-214AA ES2DBrand | Vishay |
Key Features
- Surface mount package type DO-214AA suitable for compact PCB layouts.
- Maximum continuous forward current of 2 amperes with peak reverse voltage of 200 volts.
- Ultrafast reverse recovery time of 30 nanoseconds reduces switching losses.
- Low maximum forward voltage drop of 900 millivolts enhances energy efficiency.
- Automotive standard AEC-Q101 certified, ensuring reliability in automotive environments.
- Operating temperature range from -55°C to 150°C for robust performance.
- Matte tin-plated leads with solderability compliant with J-STD-002 standards.
- Colour band polarity marking for cathode identification.
Product Description
Vishay ES2D-E3/52T is a general purpose diode designed with a 2-pin DO-214AA surface mount package for efficient, compact electronic applications. Rated at a continuous forward current of 2 A and a peak reverse voltage of 200 V, this diode offers ultrafast switching capability and low forward voltage drop, making it suitable for high-frequency rectification and freewheeling duties.
The device features a glass passivated chip junction, low switching losses, and high forward surge capability supporting reliable operation in power management. Its matte tin-plated leads comply with J-STD-002 and JESD 22-B102 solderability standards, ensuring ease of assembly on PCBs.
Certified to AEC-Q101 automotive standard, the diode withstands a wide operating temperature range from -55°C to 150°C. Colour band marking clearly identifies the cathode end, simplifying circuit assembly and verification.
Applications for the ES2D-E3/52T include switching mode power supplies, inverters, consumer electronics, computer systems, and telecommunications equipment, where reliable, fast recovery diodes are essential.
Surface mount DO-214AA package enables space-saving circuit designs. 2 A forward current rating accommodates moderate power handling requirements. 200 V peak reverse voltage suitable for various power electronics. 30 ns reverse recovery time improves efficiency in switching circuits.
Robust construction meets automotive standards and flammability ratings. Low forward voltage drop minimizes energy losses during conduction. Wide temperature operating range ensures stable performance in harsh environments.
Reliable matte tin-plated terminals offer excellent solder adhesion. Polarized with colour band marking for installation accuracy.
This diode is ideal for industrial, automotive, telecommunications, and consumer electronics applications needing dependable, efficient switching diode performance. Explore more Vishay semiconductor components on EnvMart for enhanced power management solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 2 A.
The peak reverse voltage rating of this model is 200 V.
The reverse recovery time for this diode is 30 nanoseconds.
It comes in a surface mount package type DO-214AA, suitable for compact PCB layouts.
The operating temperature range for this diode is from -55°C to 150°C.
The maximum forward voltage drop is 900 millivolts.
This diode is certified to the AEC-Q101 automotive standard.
The terminals are matte tin-plated leads that comply with J-STD-002 and JESD 22-B102 solderability standards.
This diode is suitable for applications such as switching mode power supplies, inverters, consumer electronics, computer systems, and telecommunications equipment.
The height is 2.24 mm, the width is 3.94 mm, and the length is 4.57 mm.
The peak non-repetitive forward surge current is 50 A.
The cathode end is identified by a colour band marking.
