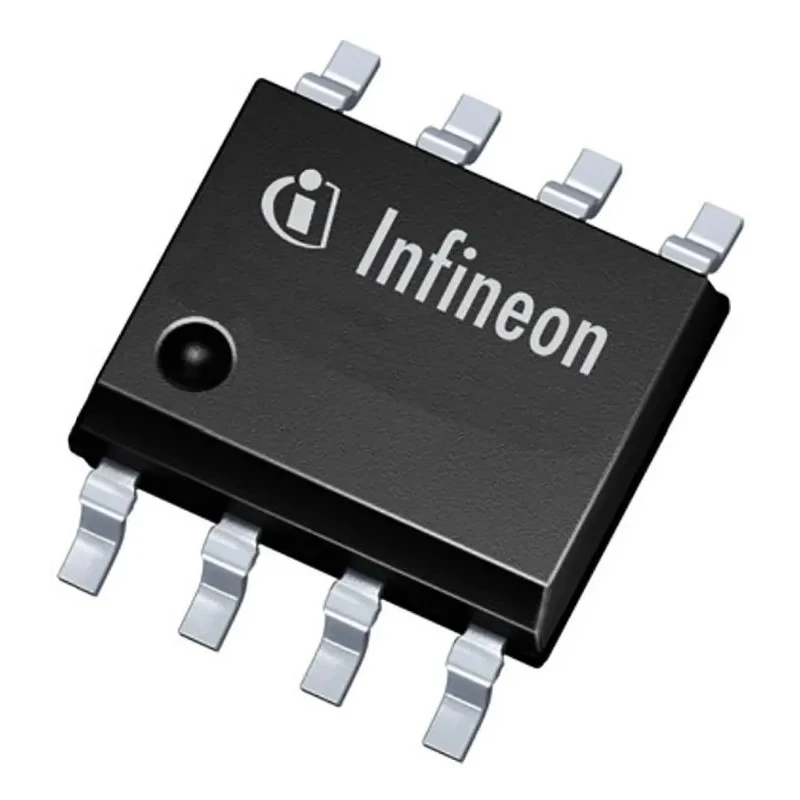

Infineon HEXFET Type P-Channel MOSFET 5.4 A 30 V Enhancement 8-Pin SOIC IRF9335TRPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.5mm |
| Length | 5mm |
| Model | IRF9335TRPBF |
| Width | 4mm |
| Mount Type | Surface |
| Series | HEXFET |
| Maximum Operating Temperature | 150°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 8 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 5.4A |
| Maximum Drain Source Voltage Vds | 30V |
| Maximum Drain Source Resistance Rds | 110mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 2.5W |
| Typical Gate Charge Qg @ Vgs | 9.1nC |
| Maximum Gate Source Voltage Vgs | -20, +20V |
| Forward Voltage Vf | -1.2V |
| P-Channel MOSFET, 5.4 A, 30 V, 8-Pin SOIC Infineon IRF9335PBFBrand | Infineon |
Key Features
- This device features a maximum continuous drain current of 5.4 amperes.
- The maximum drain-source voltage is rated at 30 volts.
- It uses the HEXFET series design for optimized conduction losses.
- The package type is SOIC with 8 pins suitable for surface mounting.
- The MOSFET operates in enhancement mode with a maximum power dissipation of 2.5 watts.
- Operating temperature ranges from -55°C to 150°C ensuring wide environmental compatibility.
- The maximum drain-source resistance is 110 milliohms minimizing energy loss.
- Typical gate charge is 9.1 nanocoulombs for efficient switching performance.
Product Description
Infineon IRF9335TRPBF is a HEXFET Type P-Channel MOSFET designed for power management with a maximum continuous drain current of 5.4 A and a maximum drain-source voltage of 30 V. It comes in a surface mount 8-Pin SOIC package, allowing for easy integration in various electronic and industrial applications such as power supplies, motor controls, and load switching.
This enhancement mode MOSFET ensures low conduction losses with a maximum drain-source resistance of 110 mΩ, improving efficiency and thermal performance. It supports a max power dissipation of 2.5 W and operates reliably across a broad temperature range from -55°C to 150°C, making it suitable for harsh industrial and automotive environments.
The gate charge of 9.1 nC supporting fast switching enhances circuit performance, while the gate-source voltage tolerance from -20 V to +20 V provides protection against overstress. Its compact 5 mm by 4 mm footprint with a height of 1.5 mm supports dense PCB layouts.
This MOSFET is ideal for industrial, automotive, and consumer electronics applications requiring efficient, compact, and reliable power switching components. The SOIC package facilitates automated assembly and excellent thermal dissipation.
Maximum continuous drain current of 5.4 A ensures handling of moderate loads efficiently. Maximum drain-source voltage of 30 V suits low-voltage power circuits. Low on-resistance of 110 mΩ reduces conduction losses and heat generation.
Enhanced HEXFET design provides superior performance in power switching. Wide operating temperature range from -55°C to 150°C for industrial use. Compact SOIC-8 package allows for space-saving board designs. Typical gate charge of 9.1 nC aids in fast and efficient switching.
Gate-source voltage rating of ±20 V protects against voltage spikes. Power dissipation rating of 2.5 W supports moderate power applications. Explore further power semiconductor options and related components available at EnvMart to meet various industrial and electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current of this model is 5.4 amperes.
The maximum drain-source voltage for this P-Channel MOSFET is rated at 30 volts.
It comes in an 8-pin SOIC package type suitable for surface mounting.
The maximum power dissipation is rated at 2.5 watts.
The typical gate charge is 9.1 nanocoulombs, which supports efficient switching performance.
This model operates within a temperature range from -55°C to 150°C.
The maximum drain-source resistance is 110 milliohms, which helps minimize energy loss.
It features a P-Channel type channel mode, operating in enhancement mode.
The dimensions are 5 mm in length, 4 mm in width, and 1.5 mm in height.
This model is suitable for applications such as power supplies, motor controls, and load switching.
The country of origin for this product is India.
