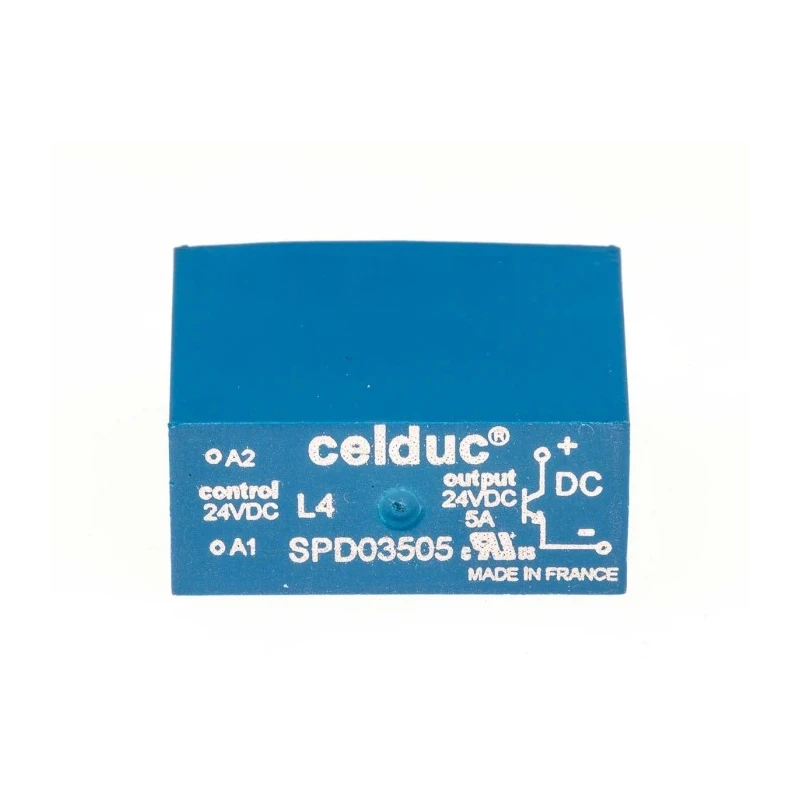

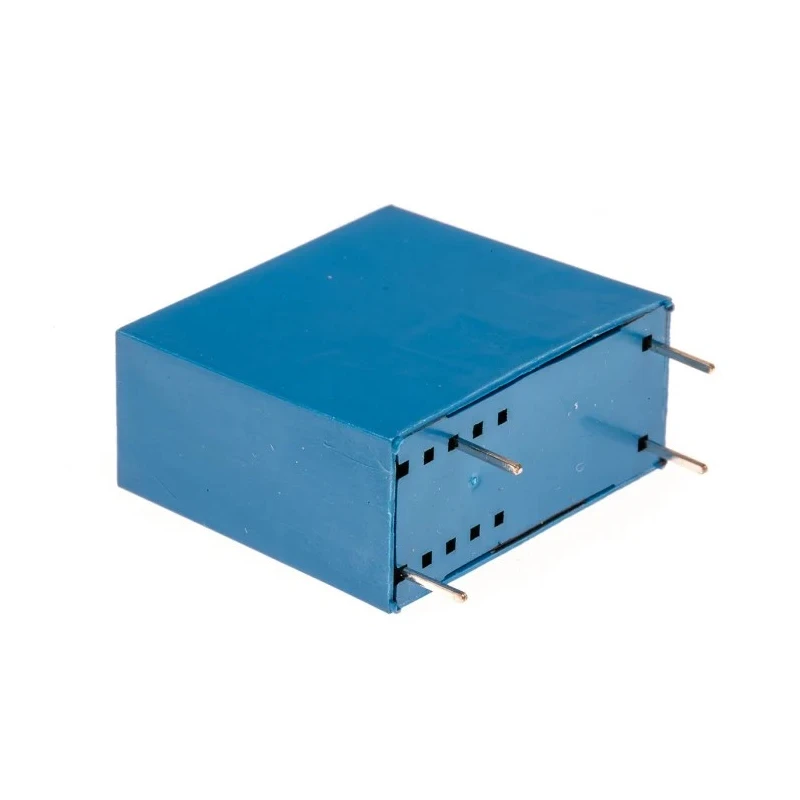

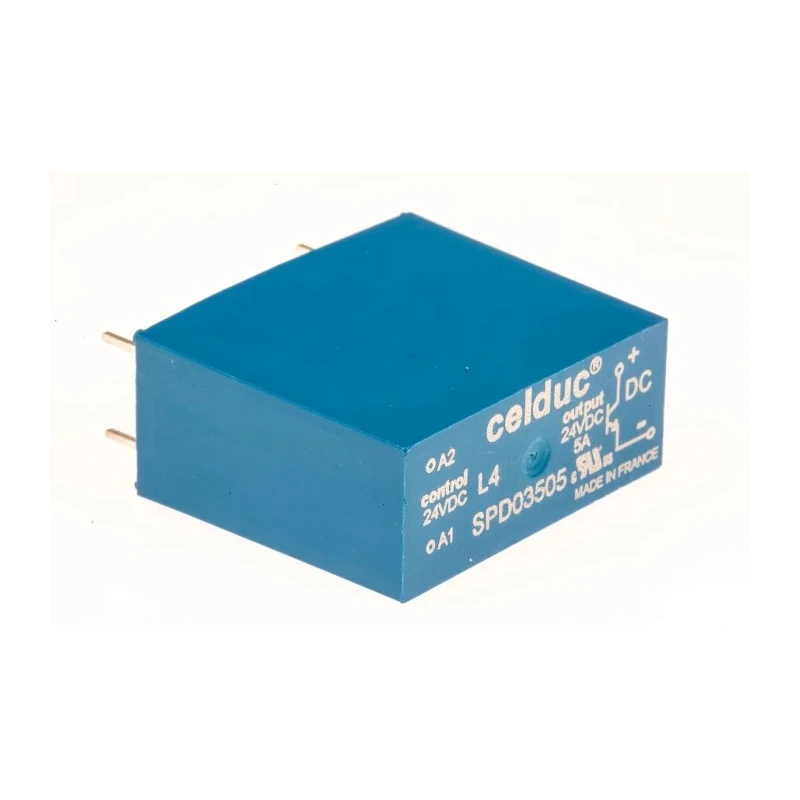

Celduc SP-ST-SL Series Solid State Relay PCB Mount 5 A Load 30 V DC Load 12-30 V DC Control SPD03505

Free Delivery in India | Lowest Global Shipping Charges

Celduc SP-ST-SL Series Solid State Relay PCB Mount 5 A Load 30 V DC Load 12-30 V DC Control SPD03505

Name: Celduc SP-ST-SL Series Solid State Relay PCB Mount 5 A Load 30 V DC Load 12-30 V DC Control SPD03505
Brand: Celduc
SKU: 105693
Price: 35.59 USD
Availability: InStock



Category Solid State Relay Brand Celduc Condition New

Specifications

Country of Origin	France
Brand	Celduc
Height	25.4mm
Length	29.2mm
Model	SPD03505
Width	12.7mm
Mount Type	PCB
Output type	MOSFET
Series	SP-ST-SL
Maximum Operating Temperature	100°C
Contact Configuration	SPST
Package Type	Module
Minimum Operating Temperature	-40°C
Terminal type	PCB Terminal
Maximum Load Current	5A
Standards/Approvals	EAC, CE
Maximum Load Voltage	30V dc
Minimum Load Voltage	0V dc
Minimum Control Voltage	12V dc
Off State Leakage Current	1mA

Key Features

Compact module with PCB terminal mounting for ease of installation.
High switching capacity with maximum load current of 5 A and load voltage up to 30 V DC.
SPST contact configuration for reliable on/off switching.
Wide operating temperature range from -40°C to 100°C suitable for various environments.
Low off-state leakage current of 1 mA for energy efficiency.
MOSFET output type ensures fast and noise-free switching.
Integrated clamping voltage and high immunity to electrical interference enhance durability.
Pin-to-pin compatible with electromechanical relays for easy replacement.

Product Description

Celduc SPD03505 is a high quality Solid State Relay designed for industrial and automation applications requiring reliable switching of DC loads. This PCB-mounted relay supports a maximum load current of 5 A at a load voltage of 30 V DC. It operates under a control voltage range from 12 V DC to 30 V DC, making it suitable for various control circuits.

The relay features a Single Pole Single Throw (SPST) contact configuration with MOSFET output type, ensuring fast and silent switching operations with low electrical noise. It maintains low off-state leakage current of only 1 mA, contributing to reduced power loss and improved energy efficiency.

Its rugged construction supports a wide operating temperature range from -40°C to 100°C, making it suitable for demanding environments in industrial, automation, process control, HVAC, and other electrical applications. The device includes integral protection features such as an integrated clamping voltage to protect against voltage spikes and ensure long-term reliability.

The SPD03505 model is pin-to-pin compatible with traditional electromechanical relays, facilitating direct replacement in existing system designs without modifications.

Manufactured in France under stringent quality standards and certifications including EAC and CE, this relay offers a dependable solution for controlling DC loads in laboratories, manufacturing facilities, and commercial electrical systems.

Compact module design with PCB terminals for easy mounting. Supports 5 A maximum load current at 30 V DC maximum load voltage. Control voltage range from 12 V DC to 30 V DC with MOSFET output. Operating temperature from -40°C to 100°C for versatile applications.

Low off-state leakage current of 1 mA for low power consumption. Pin-to-pin replacement for electromechanical relays. Integrated voltage clamping for transient protection. Certified with EAC and CE standards. Manufactured in France ensuring high quality and reliability.

This Celduc Solid State Relay is ideal for industrial automation, electrical control, and signal conditioning applications requiring efficient and reliable DC load switching. Explore similar Celduc relays and related products on EnvMart for complete automation solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Celduc SPD03505 solid state relay supports a maximum load current of 5 A and a maximum load voltage of 30 V DC.

This relay operates with a control voltage range from 12 V DC to 30 V DC.

It features a MOSFET output type, which ensures fast and silent switching operations.

The relay has a Single Pole Single Throw (SPST) contact configuration, allowing for reliable on/off switching.

The dimensions of this solid state relay are 29.2 mm in length, 12.7 mm in width, and 25.4 mm in height.

This model operates within a temperature range of -40°C to 100°C, making it suitable for various environments.

The off-state leakage current is 1 mA, contributing to energy efficiency.

Yes, the SPD03505 is pin-to-pin compatible with traditional electromechanical relays, allowing for easy replacement.

The relay is certified with EAC and CE standards, ensuring compliance with relevant regulations.

It uses PCB terminal mounting for ease of installation.

This solid state relay is suitable for industrial automation, electrical control, and signal conditioning applications requiring reliable DC load switching.

This solid state relay is manufactured in France under stringent quality standards.
