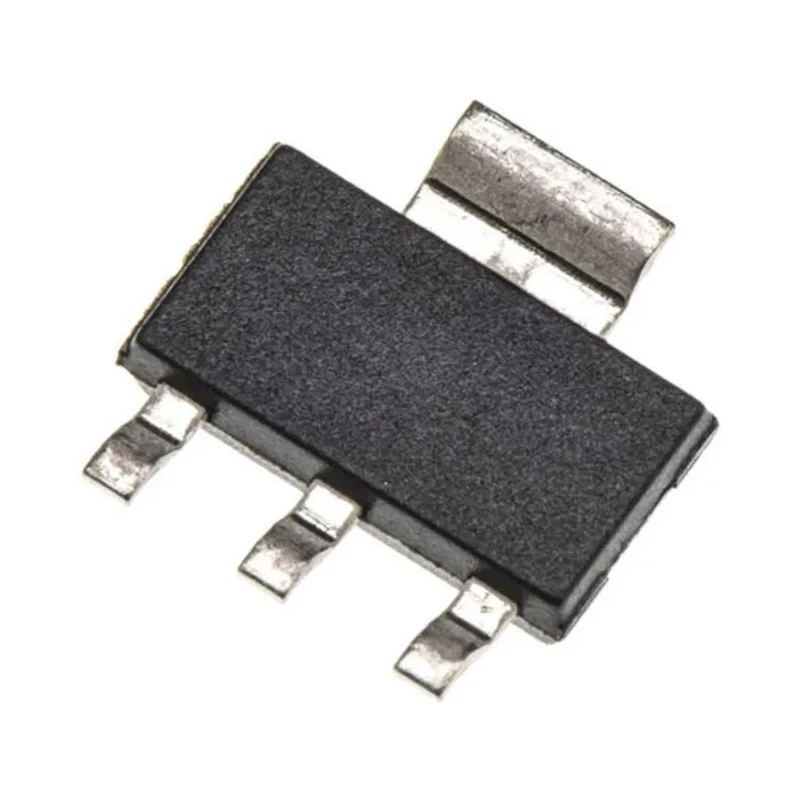

Infineon CoolMOS CE N-Channel MOSFET, 4.8 A, 550 V Enhancement Mode, 4-Pin SOT-223 IPN50R1K4CEATMA1

Infineon's IPN50R1K4CEATMA1 CoolMOS CE N-Channel MOSFET is designed for efficient power conversion applications, featuring a 4.8 A continuous drain current rating and a maximum drain-source voltage of 550 V. Housed in a compact 4-pin SOT-223 surface mount package, this device offers reliable operation in demanding industrial, electronic, and power management systems.

The MOSFET utilizes enhancement channel mode technology with a low maximum drain-source resistance of 1.4 Ω, resulting in minimal conduction losses. It supports a maximum power dissipation of 5 W and can operate at temperatures ranging from -40°C to 150°C, suitable for harsh environmental conditions.

With a typical gate charge of 8.2 nC at Vgs and a gate voltage rating from -30 V to +30 V, the device ensures optimized switching performance and protection. The forward voltage of 830 mV further contributes to efficient operation in power circuits.

Compact physical dimensions (6.7 mm length × 3.7 mm width × 1.7 mm height) enable flexible PCB space utilization in dense assemblies. This MOSFET is ideal for industrial power supplies, automotive electronics, and commercial electronic devices requiring enhanced efficiency and reliability.

4-pin SOT-223 surface mount package simplifies assembly and improves thermal management. Low on-resistance enhances efficiency in power conversion and switching. Wide operating temperature range supports industrial and automotive applications.

Robust gate voltage tolerance protects against voltage spikes. Compact size for space-constrained designs. Low gate charge enables fast switching speeds to reduce energy loss. Maximum power dissipation of 5 W ensures reliability in demanding conditions.

This product is part of Infineon's CoolMOS CE series, known for delivering best-in-class performance, power density, and cost-effectiveness. It is suitable for use in industrial, automotive, commercial, and manufacturing environments that require efficient and robust power semiconductors.
