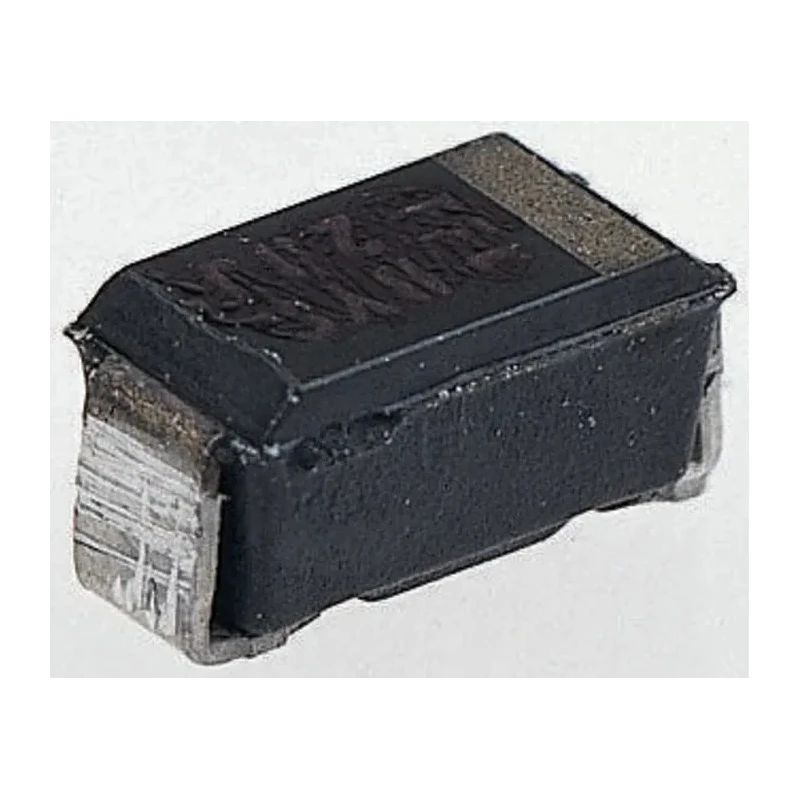

onsemi Schottky Diode 20 V 1 A Surface Mount DO-214AA Package MBRS120T3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.13mm |
| Length | 4.32mm |
| Model | MBRS120T3G |
| Width | 3.56mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 0.6V |
Key Features
- Designed for low voltage and high frequency rectification applications.
- Employs Schottky barrier for low forward voltage drop and fast switching.
- Compact surface mount package suitable for automated assembly.
- Peak non-repetitive forward surge current up to 40 A.
- Operating temperature range from -65°C to 125°C.
- Lightweight epoxy moulded case with 2-pin configuration.
- Conforms to automotive standard AEC-Q101 for high reliability.
- Ideal for freewheeling and polarity protection in power circuits.
Product Description
onsemi MBRS120T3G is a high-performance Schottky diode designed for surface mount applications with maximum continuous forward current of 1 amp and peak reverse repetitive voltage of 20 volts. Packaged in a rugged DO-214AA epoxy moulded case with a compact size profile of 4.32 mm length, 3.56 mm width, and 2.13 mm height, it provides excellent suitability for automated PCB assembly and space-constrained designs.
This diode utilizes Schottky barrier technology, enabling low forward voltage drop typically 0.6 V and high switching speed which enhances efficiency in high-frequency rectification and switching power supplies. It features a peak non-repetitive forward surge current rating of 40 A which makes it robust under transient conditions.
Operating over a temperature range from -65°C to 125°C, the MBRS120T3G diode is specified to reliably function in demanding environments including automotive electronic systems, backed by AEC-Q101 automotive qualification standards, ensuring stringent quality and performance compliance.
The diode’s 2-pin configuration and surface mount design provide versatile integration into various industrial, automotive, telecommunications, and power supply applications where compact size, low weight (approximately 11.7 mg), and efficiency are critical factors.
Typical uses include polarity protection, freewheeling diode in motor drives, voltage clamping, and rectification tasks in electronics equipment requiring fast recovery and minimal losses.
Designed for low voltage and high frequency rectification applications. Employs Schottky barrier for low forward voltage drop and fast switching. Compact surface mount package suitable for automated assembly. Peak non-repetitive forward surge current up to 40 A.
Operating temperature range from -65°C to 125°C. Lightweight epoxy moulded case with 2-pin configuration. Conforms to automotive standard AEC-Q101 for high reliability. Ideal for freewheeling and polarity protection in power circuits.
Explore more semiconductor and diode options within the Schottky Diodes & Rectifiers category on EnvMart for diverse industrial, automotive, and electronic applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the MBRS120T3G Schottky diode is 1 amp.
This model has a peak reverse repetitive voltage rating of 20 volts.
The operating temperature range for this diode is from -65°C to 125°C.
The MBRS120T3G is packaged in a DO-214AA surface mount case.
The dimensions of this model are 2.13 mm in height, 4.32 mm in length, and 3.56 mm in width.
The peak non-repetitive forward surge current rating for this diode is 40 A.
It conforms to the automotive standard AEC-Q101, ensuring high reliability.
This diode is a Schottky type rectifier, which utilizes Schottky barrier technology.
The maximum forward voltage drop for the MBRS120T3G is typically 0.6 V.
The MBRS120T3G features a 2-pin configuration suitable for surface mount applications.
This diode is suitable for applications such as freewheeling, polarity protection, and high-frequency rectification.
The weight of this model is approximately 11.7 mg.
