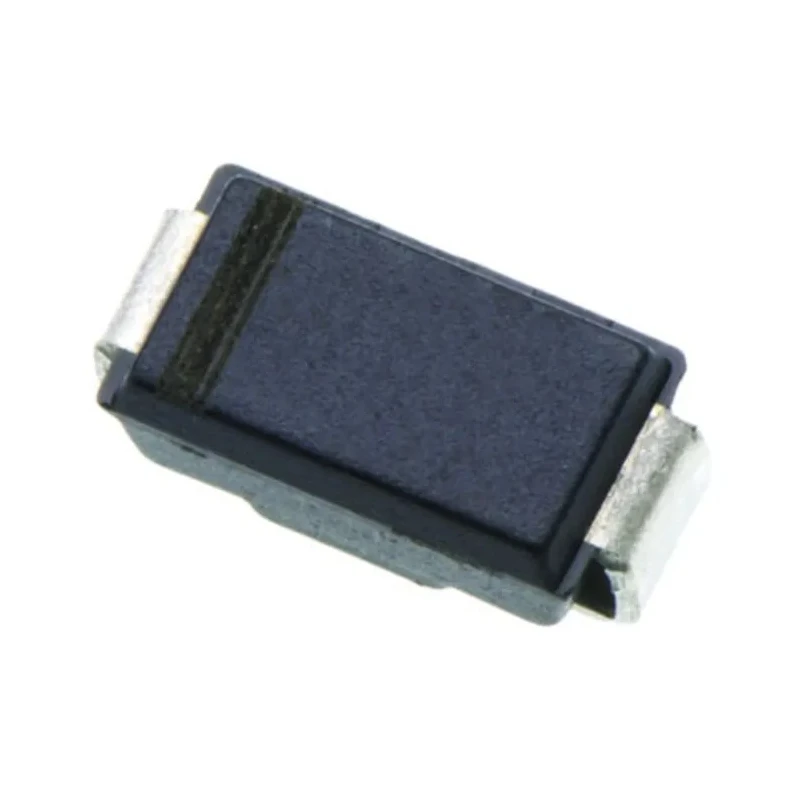

onsemi Silicon Junction Single Diode 1 A Forward Current 400 V Reverse Voltage 2-Pin DO-214AC S1G

onsemi S1G Silicon Junction Single Diode is a compact and efficient rectifier diode designed for surface mount applications. It handles a forward current of up to 1 ampere and can withstand peak reverse voltages of 400 V, making it suitable for various electronic circuits requiring reliable current control and high voltage blocking capability.

The diode features a DO-214AC package with 2 pins, enabling easy integration onto printed circuit boards (PCBs). Its maximum forward voltage of 1.1 V ensures minimal conduction losses, improving overall circuit efficiency. With a peak reverse recovery time of 1.8 μs, this diode supports high-speed switching applications.

Designed to operate over a wide temperature range of -55°C to 150°C, the S1G diode is ideal for industrial, commercial, and laboratory electronics. It can handle short surge currents up to 30 amps, providing robustness against transient conditions.

Dimensional specifications of 4.75 mm length, 2.95 mm width, and 2.2 mm height make it suitable for compact device designs where space is a premium. While the diode does not carry any automotive standards certification, it meets industry-standard quality and performance criteria for general semiconductor discrete components.

Single diode configuration ensuring efficient current control. Maximum forward current of 1 ampere for moderate power applications. Surface mount package type DO-214AC with 2 pins for PCB mounting. Peak reverse voltage rated at 400 volts for robust reverse blocking.

Forward voltage drop of 1.1 volts minimizing power loss. Peak reverse recovery time of 1.8 microseconds supports fast switching. Operates reliably in temperature range from -55°C to 150°C. Peak non-repetitive surge current capacity up to 30 amperes.

Compact dimensions measuring 4.75 mm length, 2.95 mm width, and 2.2 mm height. Complies with standard semiconductor manufacturing processes with no automotive certification.

This diode is extensively used in power conversion circuits, rectifiers, signal processing, switching power supplies, and other semiconductor electronic assemblies across industrial automation, manufacturing, research laboratories, and commercial electronic equipment.
