onsemi Small Signal NPN Transistor 100 mA 65 V 3-Pin SOT-23 BC846BLT1G

Free Delivery in India | Lowest Global Shipping Charges

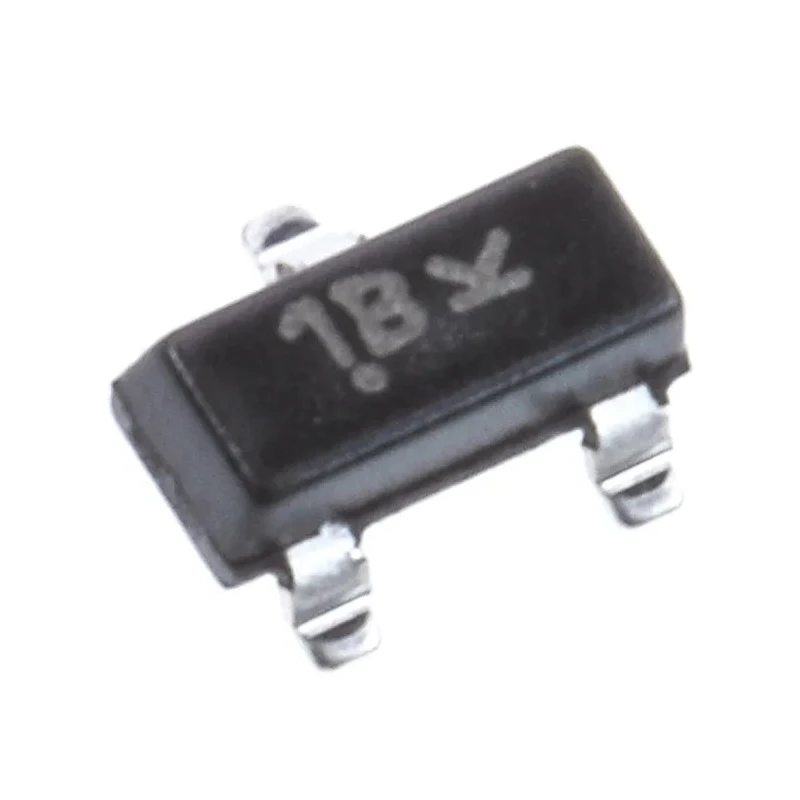

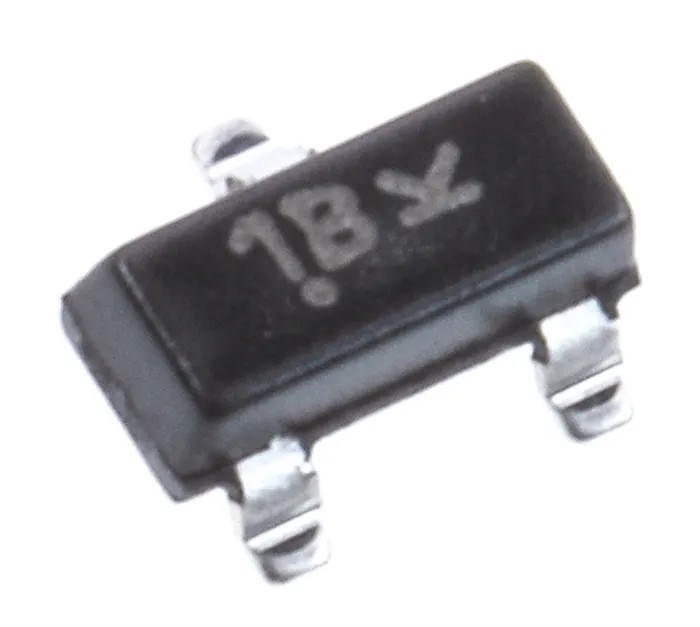

onsemi Small Signal NPN Transistor 100 mA 65 V 3-Pin SOT-23 BC846BLT1G

Name: onsemi Small Signal NPN Transistor 100 mA 65 V 3-Pin SOT-23 BC846BLT1G
Brand: onsemi
SKU: 196870
Price: 0.04 USD
Availability: InStock



Category Bipolar Transistors Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.11mm
Length	3.04mm
Model	BC846BLT1G
Width	1.4mm
Mount Type	Surface
Series	BC846BL
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-55°C
Pin Count	3
Maximum Collector Emitter Voltage Vceo	65V
Minimum DC Current Gain hFE	110
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	6V
Maximum Collector Base Voltage VCBO	80V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	300mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Single
Maximum Transition Frequency ft	100MHz
Infineon BC846B NPN Bipolar Transistor, 100 mA, 65 V, 3-Pin SOT-23Brand	Infineon
ON NPN transistor,BC846B 0.1A Ic 5VceBrand	ON Semiconductor

Key Features

This transistor supports a maximum DC collector current of 100 mA.
It has a maximum collector-emitter voltage rating of 65 V.
The package type is SOT-23 suitable for surface mount applications.
Maximum power dissipation is rated at 300 mW for reliable operation.
The transistor features a minimum DC current gain (hFE) of 110.
It supports a maximum transition frequency (ft) of 100 MHz.
Operating temperature ranges from -55°C to 150°C.
Complies with automotive standard AEC-Q101 for automotive applications.

Product Description

onsemi BC846BLT1G is a small signal NPN bipolar transistor designed for low power amplification and switching applications. It supports a maximum DC collector current of 100 mA and a maximum collector-emitter voltage of 65 V ensuring robust performance under varying circuit conditions. This transistor is housed in a 3-pin SOT-23 package allowing surface mounting on compact printed circuit boards.

The device offers a minimum DC current gain (hFE) of 110 and a maximum transition frequency of 100 MHz, making it suitable for high-frequency analog and switching circuits. The transistor can operate reliably in the temperature range from -55°C to 150°C and has a power dissipation rating of 300 mW.

Designed to meet the automotive AEC-Q101 standard, the BC846BLT1G transistor is suitable for industrial, automotive, and commercial electronic applications requiring small signal amplification. Its compact size with dimensions of 3.04 mm length, 1.4 mm width, and 1.11 mm height makes it ideal for densely packed circuit designs.

This transistor supports a maximum DC collector current of 100 mA. Maximum collector-emitter voltage rating is 65 V. Encapsulated in a 3-pin SOT-23 surface-mount package. Power dissipation is rated at 300 mW for stable operation.

Minimum DC current gain (hFE) of 110 ensures amplification efficiency. Maximum transition frequency (ft) of 100 MHz suitable for switching applications. Operating temperature range covers -55°C to 150°C. Meets automotive standard AEC-Q101.

Compact physical dimensions for space saving design. Ideal for automotive, industrial, and electronic circuits requiring reliable small signal transistors. Explore our wide range of Bipolar Transistors and semiconductor components to find compatible parts for your industrial or automotive electronics projects at EnvMart.
