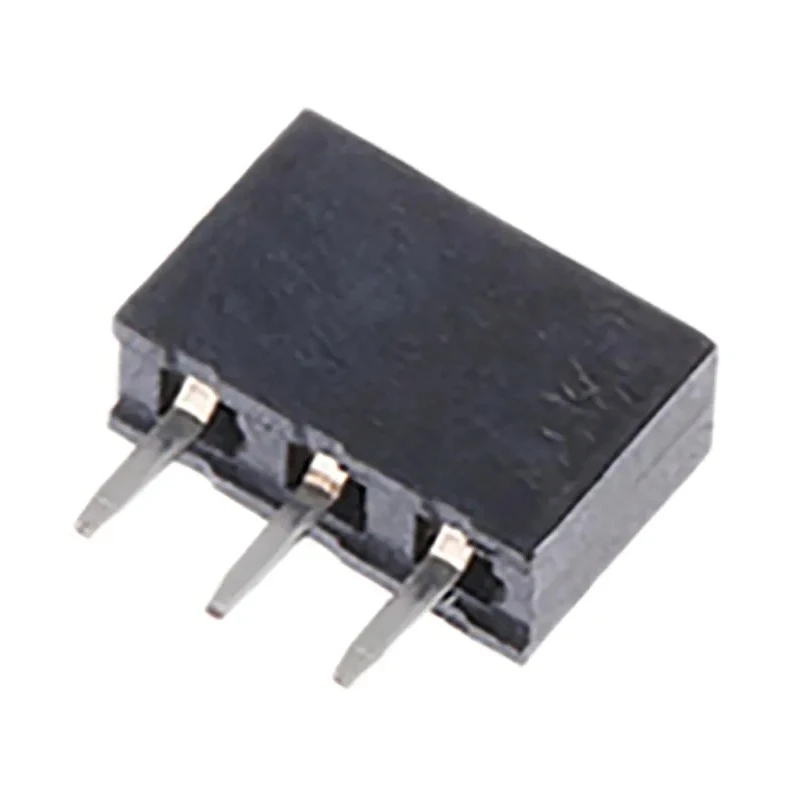

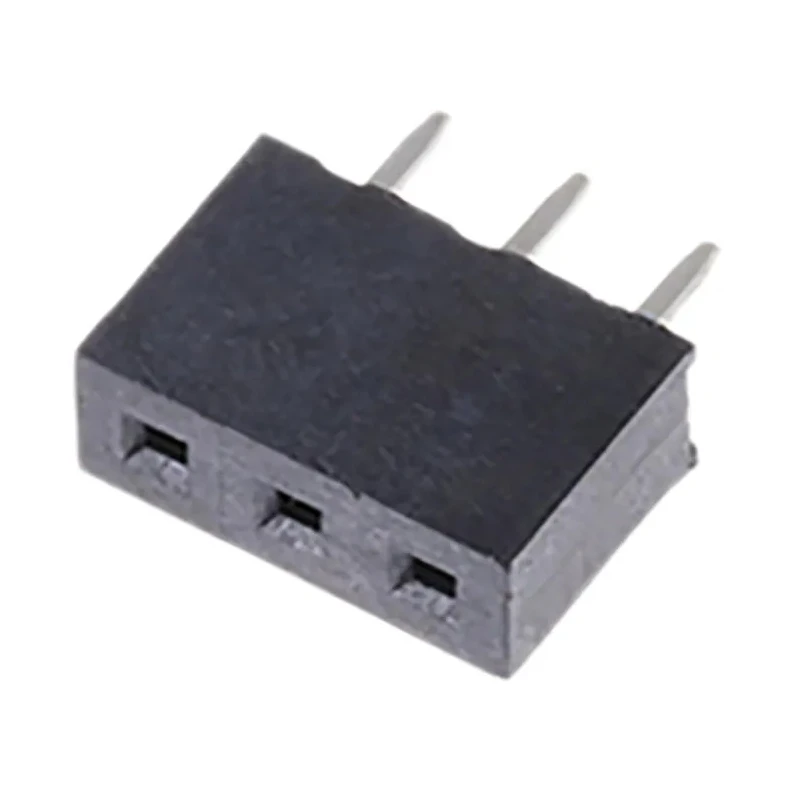

HARWIN M22 Series Straight Through Hole PCB Socket, 3-Contact, 1 Row, 2 mm Pitch, 12A, 500V M22-7130342
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M22-7130342 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features a fine 2 mm pitch for high-density PCB applications.
- Constructed with a durable Liquid Crystal Polymer housing rated to UL94V-0 standard.
- Gold-plated bronze contacts ensure reliable electrical connection and corrosion resistance.
- Suitable for board-to-board mounting with through hole solder termination.
- Operates within a temperature range of -25°C to 105°C for versatile usage.
- The compact design supports up to 300 mating cycles for longevity.
- Current rating supports up to 12 amperes per contact for demanding applications.
- Ideal for embedded PCs, motherboards, industrial monitoring, and consumer electronics.
Product Description
HARWIN M22-7130342 Series Straight Through Hole PCB Socket is a reliable and compact connector designed for board-to-board applications requiring a fine 2 mm pitch spacing. This 3-contact, single row socket offers a current rating of 12A and voltage rating of 500V, making it suitable for various industrial, telecommunications, and consumer electronic uses.
The housing material is a high-temperature Liquid Crystal Polymer (LCP) conforming to UL94V-0 flammability standards, ensuring durability and resistance during soldering processes. The bronze contacts feature gold plating with a dual beam design for improved electrical connectivity and connector reliability. This socket supports through hole mounting with solder termination and a straight orientation, allowing straightforward PCB integration.
Operating temperatures range from -25°C minimum up to 105°C maximum, enabling stable performance in various environments. The M22 series connector’s compact design meets increasing PCB density and height limitations while supporting up to 300 mating cycles, providing lasting mechanical and electrical performance.
Applications include embedded PCs, motherboards, industrial control systems, personal computing, drives and controls, and communication devices. This connector is a trusted standard in many electronics assemblies requiring board-to-board connections.
Fine 2 mm pitch supports compact PCB layouts. Liquid Crystal Polymer housing withstands high temperatures. Gold-plated bronze contacts for durability and optimal conductivity. Through hole solder termination and straight orientation for easy installation.
Supports currents up to 12A and voltages up to 500V. Extended operating temperature range from -25°C to 105°C. Up to 300 mating cycles for long-lasting connections. Suitable for multiple industrial and electronic applications.
Explore the comprehensive range of HARWIN connectors at EnvMart to find solutions for your PCB interconnect needs with confidence.
