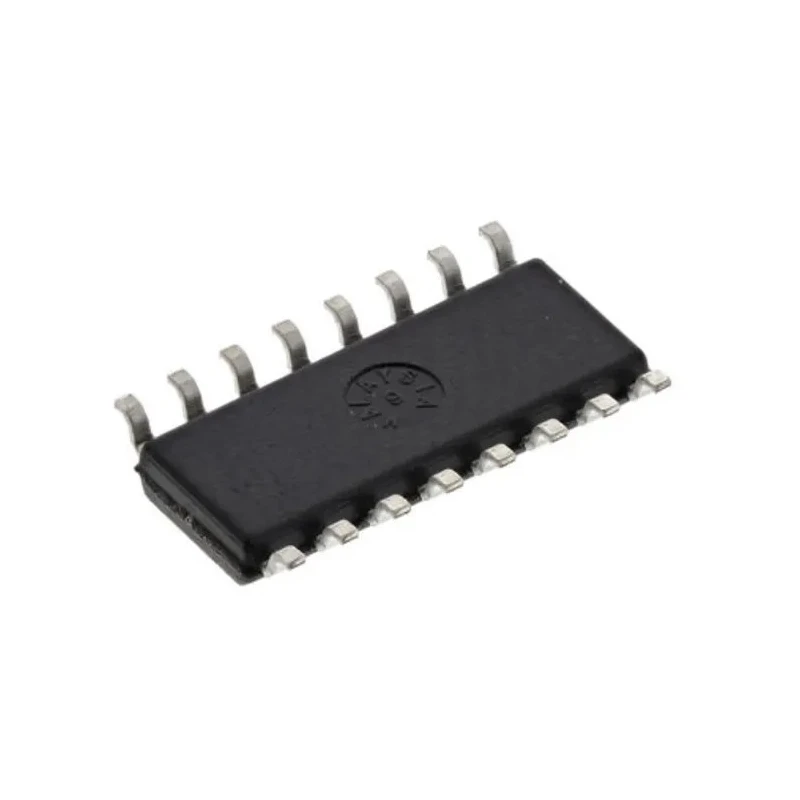

Renesas Electronics Line Transceiver CMOS/TTL Non-Inverting 16-Pin SOIC ICL3232IBNZ-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Renesas Electronics |
| Height | 2.65mm |
| Length | 10.5mm |
| Model | ICL3232IBNZ-T |
| Width | 7.6mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | ICL3232 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | TTL |
| Minimum Supply Voltage | 3V |
| Maximum Propagation Delay Time @ CL | 0.3μs |
| Supply Current | 1mA |
Key Features
- Operates with a minimum supply voltage of 3V and maximum of 5.5V.
- Features a maximum propagation delay time of 0.3 microseconds at capacitive load.
- Supports ambient operating temperatures from -40°C to 85°C.
- Compact package dimensions of 10.5mm length, 7.6mm width, and 2.65mm height.
- Low supply current consumption of 1mA for efficient power use.
- Designed for surface mount applications with 16 pins in SOIC package type.
- Suited for RS-232 line driver and receiver applications up to 1 Mbps data rate.
- Manufactured with robust CMOS/TTL technology ensuring reliable digital logic levels.
Product Description
Renesas Electronics ICL3232IBNZ-T Line Transceiver is a CMOS/TTL family line transceiver IC featuring a non-inverting polarity and surface mount 16-Pin SOIC package. This device is designed to interface RS-232 communication lines efficiently, supporting dual transmitter and receiver lines at data rates up to 1 Mbps.
Supplying a voltage range from 3V minimum to 5.5V maximum, the transceiver achieves a maximum propagation delay of 0.3 microseconds at a capacitive load. Its supply current is low, approximately 1mA, making it suitable for power-sensitive industrial and electronic applications.
The device operates reliably within a temperature range from -40°C to 85°C, making it fit for varied environments including industrial, telecommunications, and embedded systems that require RS-232 or TTL/CMOS level translation.
The compact SOIC package measures 10.5mm in length, 7.6mm in width, and 2.65mm in height, supporting modern surface mount manufacturing technology for space-saving PCBs.
Non-inverting logic and single-ended input types ensure straightforward interface with CMOS and TTL logic families, enhancing compatibility for electronic and communication equipment assembly.
Operates at supply voltages between 3V and 5.5V. Maximum propagation delay of 0.3µs at capacitive load. Low power consumption with supply current around 1mA. Robust operation between -40°C and 85°C ambient temperatures. Compact surface mount 16-pin SOIC package.
Designed for RS-232 communication protocol line driver and receiver functions. Non-inverting polarity logic ensures signal integrity. Manufactured in China ensuring industrial quality standards.
This line transceiver is ideal for integration in industrial control systems, automotive electronics (non-automotive grade), telecommunications infrastructure, laboratory instrumentation, and other embedded electronic circuitry requiring reliable signal interface between RS-232 and TTL levels.
Explore more semiconductor Line Interface ICs and transceivers at EnvMart to optimize your electronic design and production efficiency.
