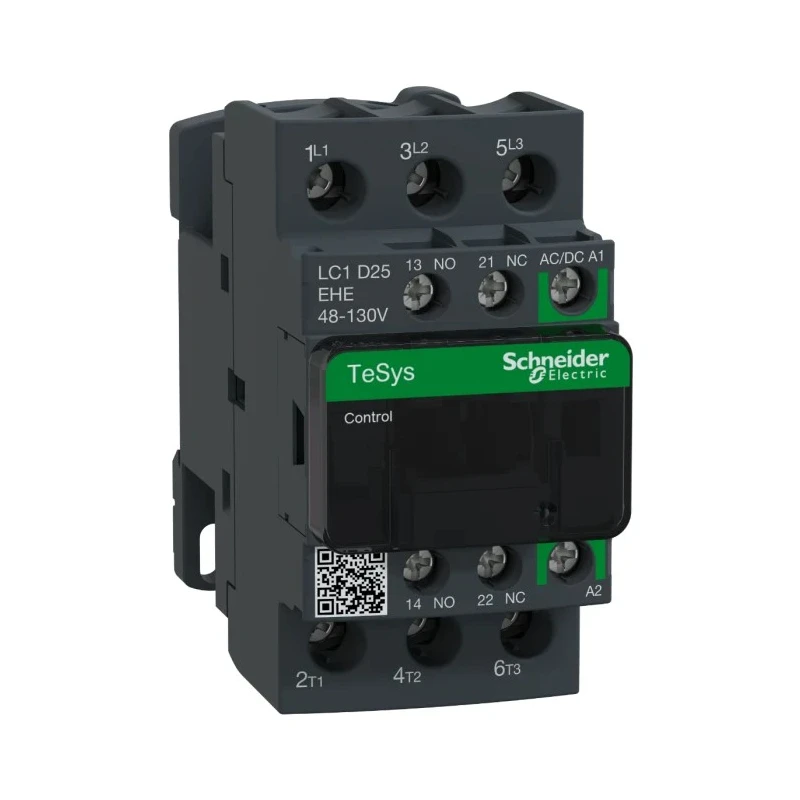

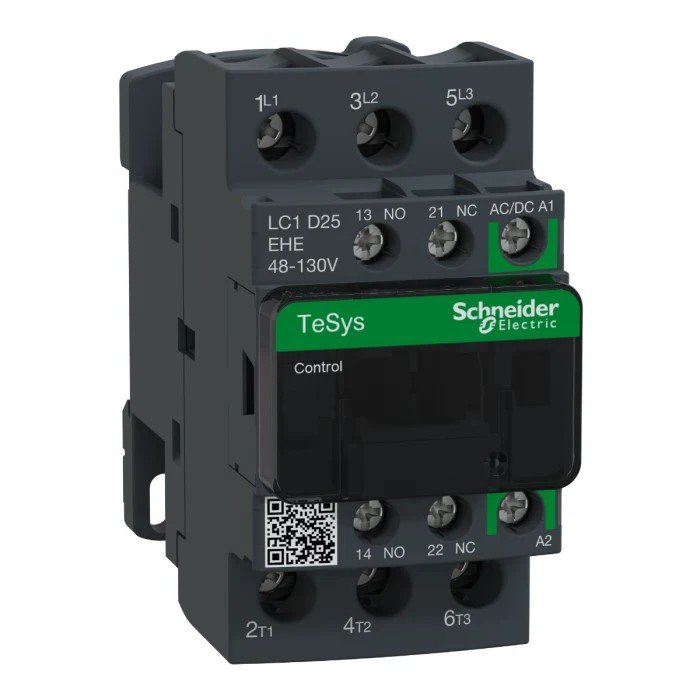

Schneider Electric TeSyS D Contactor 3-Pole 25A 11kW, 110V AC/DC Coil, 130V Control Voltage LC1D25EHE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 45mm |
| Model | LC1D25EHE |
| Depth | 85mm |
| Width | 92mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 11kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac/dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 130V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 110V AC/DC coil and 130V control voltage for flexible operation.
- Supports up to 11 kW power rating, suitable for industrial motor applications.
- Contains 3 normally open contacts and 2 auxiliary contacts with 1 NO and 1 NC configuration.
- Designed for DIN rail mounting with IP20 finger-safe screw terminals.
- Operates reliably between -25°C to 60°C ambient temperatures.
- Compact dimensions of 92mm width, 45mm length, and 85mm depth ensure easy panel integration.
- Compliant with CCC, CSA, EAC, IEC, RoHS, and UL standards ensuring safety and quality.
Product Description
Schneider Electric LC1D25EHE TeSyS D Contactor is a high-quality, reliable device designed for motor control and resistive load switching, operating with 110V AC/DC coil voltage and a 130V control circuit voltage. It features a 3-pole configuration supporting a contact voltage of 690V AC, contact current of 25A, and a power rating of 11 kW, making it suitable for a wide range of industrial applications.
The contactor offers long mechanical and electrical life with excellent resistance to shock and vibration, typical of the TeSyS D range. It includes built-in auxiliary contacts for enhanced switching capabilities and uses screw connections with IP20 finger-safe terminals marked for both North American and International standards. Mounting options include both DIN rail and panel screw mounting, facilitating easy installation.
This contactor operates reliably in ambient temperatures ranging from -25°C up to 60°C, ensuring performance under diverse environmental conditions. Its compact size (92mm width x 45mm length x 85mm depth) supports efficient space usage in control panels.
Designed for motor control and resistive loads, it is compliant with multiple international standards including CCC, CSA, EAC, IEC, RoHS, and UL, supporting safety and environmental compliance. The TeSyS D contactor range also offers bidirectional peak limiting diode suppressors to protect the coil and provides accessory options such as auxiliary contact blocks, time delay blocks, and surge suppressors.
Typical applications include motor control for squirrel cage motors, pumps, compressors, conveyors, lifts, and air conditioning units, classified under utilisation categories AC1 (resistive loads) and AC3 (motor starting and breaking).
Package Contents: Schneider Electric LC1D25EHE TeSyS D Contactor, 3-Pole, 25A, 11kW rating with 110V AC/DC coil and control voltage of 130V. Explore more Schneider Electric automation and control gear products and accessories at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 11 kW, making it suitable for various industrial motor applications.
It operates with a coil voltage of 110V AC/DC, allowing for flexible operation in different electrical environments.
The contactor supports a maximum contact voltage of 690V AC, suitable for high voltage applications.
This model features a 3-pole configuration, which is typical for motor control applications.
The dimensions are 92mm in width, 45mm in length, and 85mm in depth, facilitating easy integration into control panels.
It has an operational current rating of 25A, making it suitable for various loads.
The contactor operates reliably in ambient temperatures ranging from -25°C to 60°C.
It is designed for DIN rail mounting, which simplifies installation in control systems.
This unit includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It is compliant with multiple standards including CCC, CSA, EAC, IEC, RoHS, and UL, ensuring safety and quality.
It is suitable for motor control and resistive load applications, including squirrel cage motors, pumps, and compressors.
It has IP20 finger-safe screw terminals, designed for both North American and International standards.
