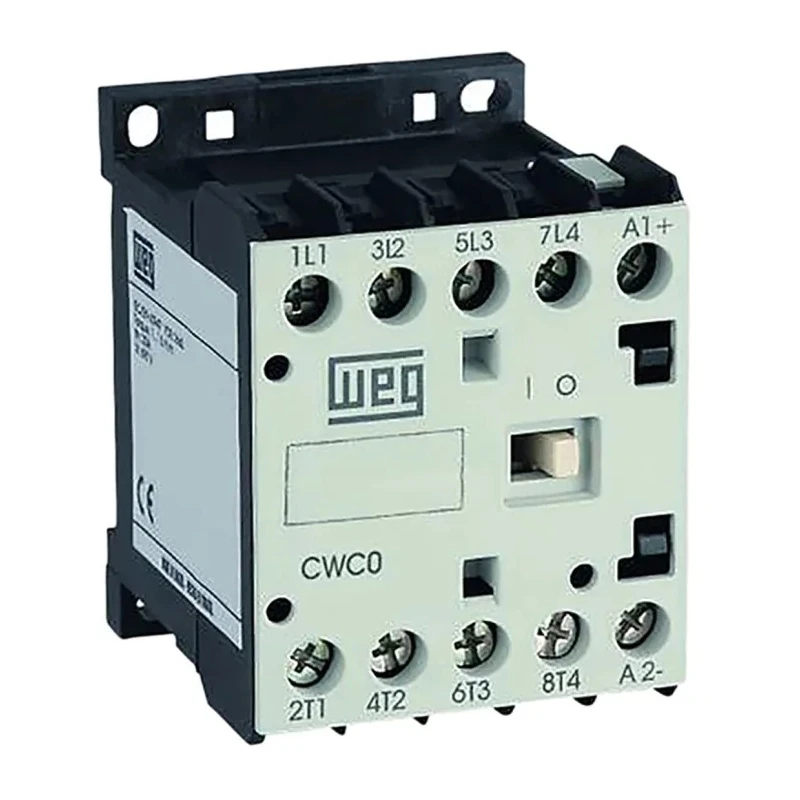

WEG Contactor 4-Pole 16 A 7.5 kW Coil 24V Motor Control DIN Rail Mount CWC016-00-22R03

Free Delivery in India | Lowest Global Shipping Charges

WEG Contactor 4-Pole 16 A 7.5 kW Coil 24V Motor Control DIN Rail Mount CWC016-00-22R03



Category Contactor Brand WEG Condition New

Specifications

Country of Origin	Brazil
Brand	WEG
Function	Motor Control
Length	58mm
Model	CWC016-00-22R03
Depth	52mm
Width	45mm
Mount Type	DIN Rail
Series	CWC
Power Rating	7.5kW
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	4
Standards/Approvals	IEC, RoHS, UL
Contact Voltage	690V ac
Coil Voltage	24V
Normal State Configuration	2 NO/2 NC
Contact Current	16A
Auxiliary Contact Configuration	2 NO/2 NC
Operational Current Ie	16A
Control Circuit Voltage Uc	24V
Contactor Application	Motor Control
Pole and Throw Configuration	4PST

Key Features

The contactor features a robust and compact design ideal for DIN Rail mounts.
Equipped with screw terminals for secure wiring connections.
Includes 2 normally open and 2 normally closed auxiliary contacts.
Operates reliably within a temperature range of -25°C to 55°C.
Built to comply with IEC, RoHS, and UL standards for industrial usage.
Rated for 690V AC contact voltage suitable for various motor control circuits.
Professional-grade modular contactor from WEG's CWC series ensures enhanced durability.

Product Description

WEG CWC016-00-22R03 is a high-quality 4-pole contactor with a 24V coil voltage and a contact current rating of 16 A, delivering a power capacity of 7.5 kW. This device is designed primarily for motor control functions and offers reliable switching in industrial environments. It supports control circuits operating at 24V and motor contact voltages up to 690V AC, making it versatile for various automation and control gear applications.

This contactor features screw terminal connections for secure and efficient installation, and it is suitable for DIN rail mounting or panel installations, providing ease of integration into electrical control panels. The compact and modular design ensures space-saving benefits without compromising robustness or reliability.

Engineered to operate effectively within ambient temperatures ranging from -25°C to 55°C, this contactor meets stringent IEC, RoHS, and UL standards, ensuring compliance with international quality and safety requirements. The pole and throw configuration is 4PST, featuring two normally open (NO) and two normally closed (NC) auxiliary contacts that enhance its control capability.

WEG’s professional CWC series contactors are tested for durability and performance, delivering consistent operation in industrial, manufacturing, automation, and HVAC systems. Their robust build and direct mounting capabilities make them suitable for demanding environments and applications requiring precise motor control.

The contactor features a robust and compact design ideal for DIN Rail mounts. Equipped with screw terminals for secure wiring connections. Includes 2 normally open and 2 normally closed auxiliary contacts. Operates reliably within a temperature range of -25°C to 55°C.

Built to comply with IEC, RoHS, and UL standards for industrial usage. Rated for 690V AC contact voltage suitable for various motor control circuits. Professional-grade modular contactor from WEG's CWC series ensures enhanced durability.

This contactor is essential for industrial automation systems requiring dependable switching of electric motors. It finds applications in electrical panels, HVAC controls, manufacturing plants, and other motor-driven equipment setups. Explore more Contactors for comprehensive control and automation solutions at EnvMart.
