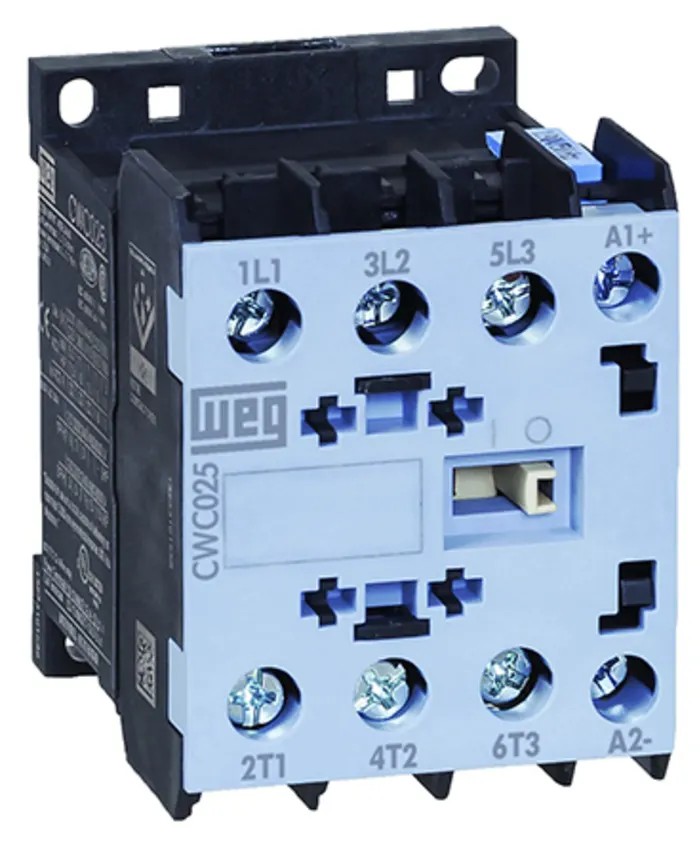

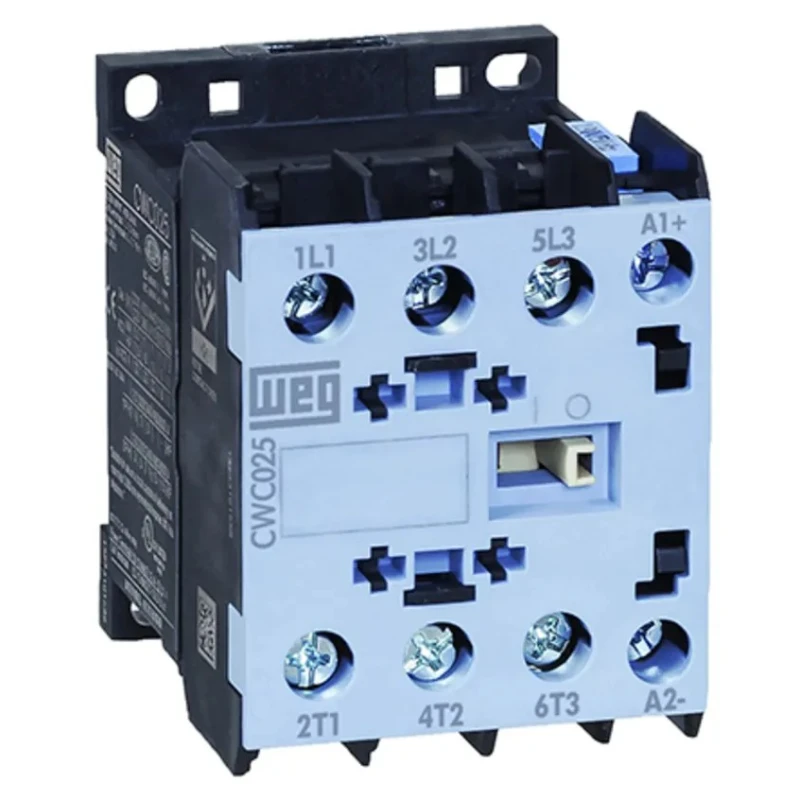

WEG CWC Series 3-Pole Contactor 230V AC Coil Voltage 22A 11kW Power Rating DIN Rail Mount CWC025-00-30D24



Category Contactor Brand WEG Condition New

Specifications

Country of Origin	Brazil
Brand	WEG
Function	Motor Control
Length	58mm
Model	CWC025-00-30D24
Depth	56mm
Width	45mm
Mount Type	DIN Rail
Series	CWC
Power Rating	11kW
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	UL, RoHS, IEC
Contact Voltage	690V ac
Coil Voltage	230V ac
Normal State Configuration	3 NO
Contact Current	22A
Operational Current Ie	25A
Control Circuit Voltage Uc	230V ac
Contactor Application	Motor Control
Pole and Throw Configuration	3PST

Key Features

Compact and modular contactor designed for motor control applications.
Equipped with screw terminals for secure connections.
Mounts on standard DIN rail for easy installation.
Supports contact voltage up to 690V AC and operational current of 25A.
Operates reliably within temperature range from -25°C to 55°C.
Includes 3 normally open (NO) contacts configuration for controlled switching.
Meets international standards UL, RoHS, and IEC for quality and safety.
Professional grade suitable for industrial automation and control systems.

Product Description

WEG CWC025-00-30D24 is a professional 3-Pole contactor from the CWC Series designed specifically for motor control applications with a 230V AC coil voltage and a power rating of 11 kW.

This compact and modular contactor features screw terminals for secure and reliable electrical connections and is suitable for DIN rail mounting, enabling easy integration into automation control panels.

Rated for a contact current of 22A with operational current Ie up to 25A, it supports contact voltage up to 690V AC and has 3 normally open (NO) contacts, ensuring efficient switching capabilities.

It is engineered to perform reliably within a wide temperature range from -25°C to 55°C, suitable for various industrial environments. The contactor complies with international standards UL, RoHS, and IEC, ensuring quality, safety, and environmental compliance.

This WEG CWC contactor series is well-suited for use in industrial automation, electrical motor control, manufacturing equipment, and HVAC systems. Compact and modular contactor designed for motor control applications. Equipped with screw terminals for secure connections.

Mounts on standard DIN rail for easy installation. Supports contact voltage up to 690V AC and operational current of 25A. Operates reliably within temperature range from -25°C to 55°C. Includes 3 normally open (NO) contacts configuration for controlled switching.

Meets international standards UL, RoHS, and IEC for quality and safety. Professional grade suitable for industrial automation and control systems. Explore the comprehensive range of Contactors and automation components at EnvMart for optimized industrial solutions.
