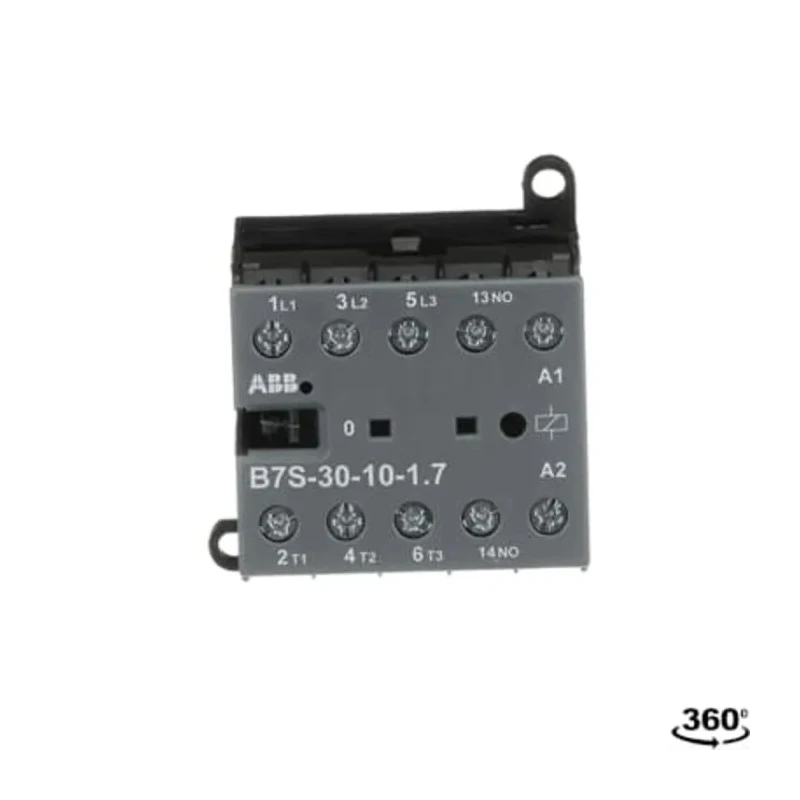

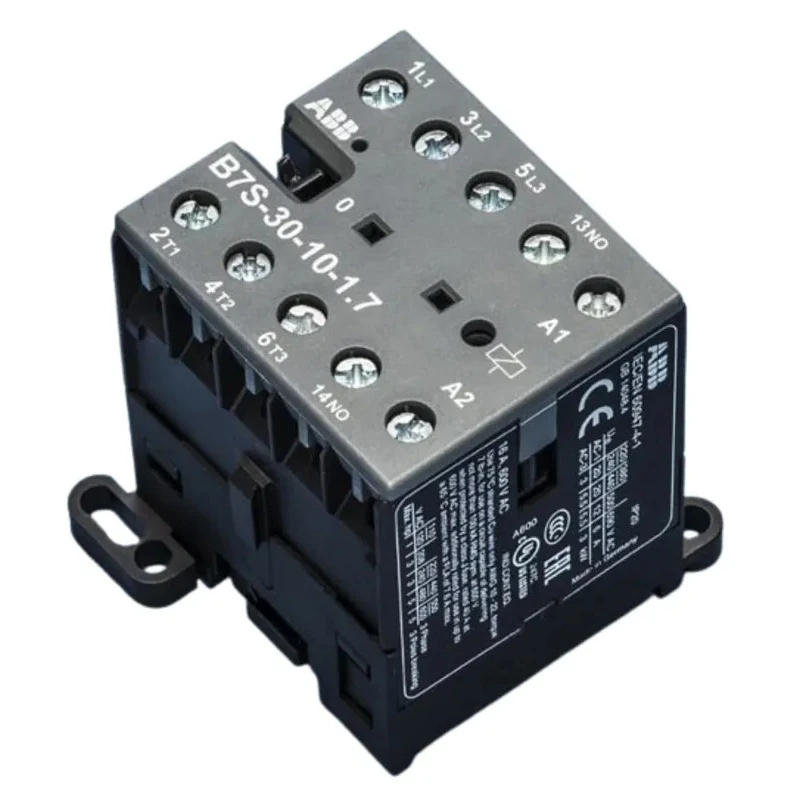

ABB B7S Series 24V DC Coil 3-Pole Contactor 20 A, 5.5 kW Power Rating, Screw Terminal GJL1313001R7101 - B7S-30-10-1.7-71



Category Contactor Brand ABB Condition New

Specifications

Country of Origin	Germany
Brand	ABB
Function	Motor Control
Length	57.5mm
Model	GJL1313001R7101 - B7S-30-10-1.7-71
Depth	46.5mm
Width	52.5mm
Mount Type	DIN Rail
Series	B7S
Power Rating	5.5kW
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	CCC, CSA, EAC, IEC, RoHS, UKCA, UL, CE
Contact Voltage	690V ac
Coil Voltage	24V dc
Normal State Configuration	3 NO
Contact Current	20A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NO
Operational Current Ie	16A
Control Circuit Voltage Uc	24V dc
Contactor Application	Motor Control
Pole and Throw Configuration	3

Key Features

Features a robust DIN Rail mount for versatile installation.
Includes screw terminals ensuring reliable electrical connections.
Operates with a coil voltage of 24V DC for efficient switching.
Has one auxiliary contact with 1 NO configuration for control circuits.
Designed to operate reliably between -25°C and +55°C temperatures.
Supports contact voltage up to 690V AC suitable for diverse industrial applications.
Equipped with 3 NO main contacts for dual circuit reliability and motor control use.
Compact dimensions of 57.5mm length, 52.5mm width, and 46.5mm depth optimize panel space.

Product Description

The ABB GJL1313001R7101-B7S-30-10-1.7-71 is a high-performance 3-pole contactor engineered for precise motor control applications. Featuring a coil voltage of 24V DC and a contact current rating of 20A, it delivers a power capacity of 5.5 kW, making it ideal for controlling single or three-phase electrical loads efficiently.

Its compact and sturdy design incorporates screw terminals for secure electrical connections and a DIN Rail mount for easy installation in control panels. The contactor includes one auxiliary contact configured as 1 NO, allowing integration with control circuits and automation systems.

Operational within a wide temperature range of -25°C to +55°C, this contactor is suitable for demanding industrial environments. It supports a maximum contact voltage of 690V AC and utilizes a 3 NO main contact configuration to provide reliable dual circuit switch performance.

Designed with built-in protective circuitry, the Contactor enhances safety during operation and minimizes coil power consumption, enabling direct control from PLCs for streamlined automation. Its compact dimensions (57.5mm length x 52.5mm width x 46.5mm depth) optimize space in crowded control cabinets.

Manufactured in Germany and conforming to international standards including IEC, UL, CSA, RoHS, UKCA, CE, CCC, and EAC, the ABB B7S series guarantees premium quality and durability. It is well suited for use in industrial automation, motor control centers, HVAC systems, manufacturing plants, and other electrical control applications.

Features a robust DIN Rail mount for versatile installation. Includes screw terminals ensuring reliable electrical connections. Operates with a coil voltage of 24V DC for efficient switching. Has one auxiliary contact with 1 NO configuration for control circuits.

Designed to operate reliably between -25°C and +55°C temperatures. Supports contact voltage up to 690V AC suitable for diverse industrial applications. Equipped with 3 NO main contacts for dual circuit reliability and motor control use.

Compact dimensions of 57.5mm length, 52.5mm width, and 46.5mm depth optimize panel space. Built-in protective circuits offer enhanced operational safety. Manufactured in Germany following rigorous quality standards. Explore the ABB category in EnvMart for comprehensive solutions matching your automation and control gear requirements.
