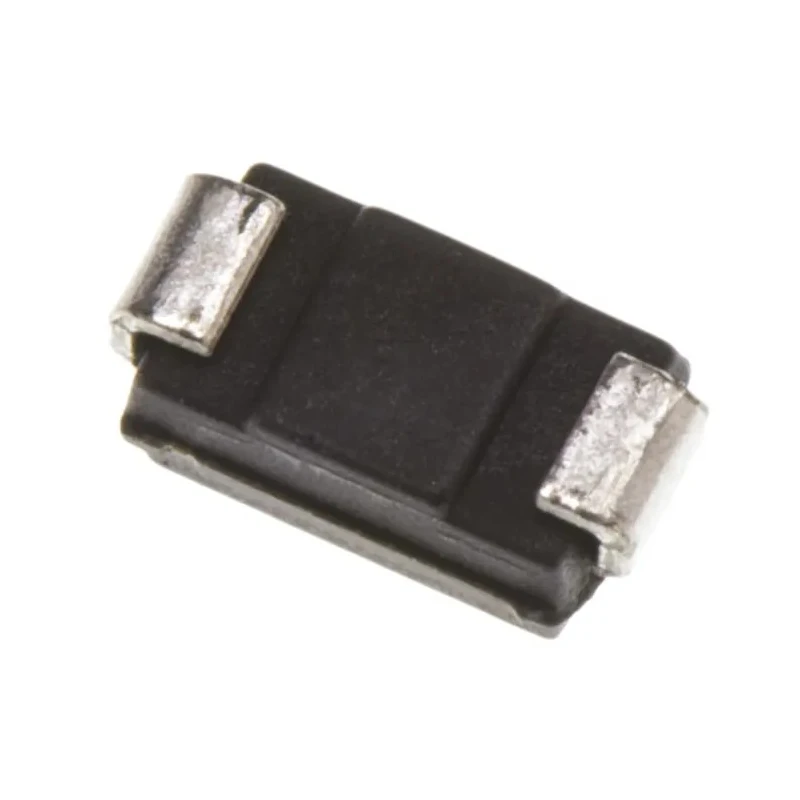

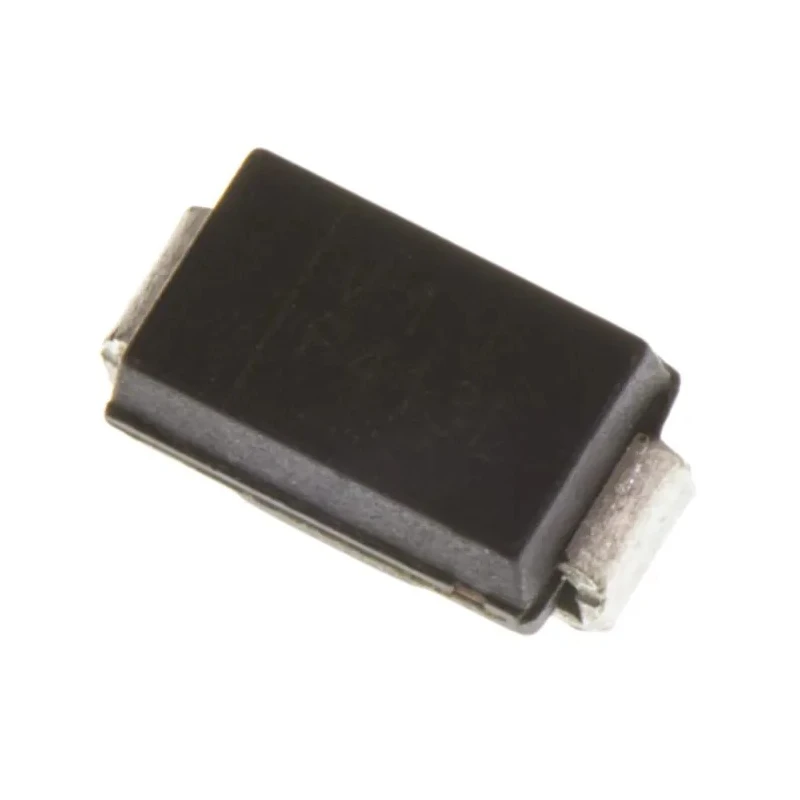

Vishay Schottky Diode 100 V 1.5 A 2-Pin DO-214AC Surface Mount VS-10MQ100-M3/5AT
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4.5mm |
| Brand | Vishay |
| Height | 2.29mm |
| Length | 4.6mm |
| Model | VS-10MQ100-M3/5AT |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC (SMA) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1.5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 850mV |
| Vishay 100V 1.5A, Schottky Diode, 2-Pin DO-214AC 10MQ100NBrand | Vishay |
| Vishay 90 V 1.5 A Diode Schottky 2-Pin DO-214ACBrand | Vishay |
Key Features
- The diode features a surface mount design for compact PCB footprint.
- It offers a maximum continuous forward current of 1.5 A for reliable use.
- The peak reverse repetitive voltage rating is 100 V ensuring voltage protection.
- Maximum forward voltage drop is 850 mV, reducing power loss.
- Operating temperature ranges from -55 to 150 °C for broad application environment.
- Peak non-repetitive forward surge current capability of 120 A for transient handling.
- Equipped with guard ring for enhanced ruggedness and long-term reliability.
- Suitable for switching power supplies, converters, reverse battery protection, and freewheeling diode applications.
Product Description
Vishay VS-10MQ100-M3/5AT is a high-performance Schottky diode featuring a 100 V peak reverse voltage and 1.5 A maximum continuous forward current rating. It is packaged in a compact DO-214AC (SMA) surface mount format, making it ideal for applications demanding low forward voltage drop and space-saving PCB layouts.
This diode operates efficiently at high frequencies and includes a guard ring for ruggedness and enhanced long-term reliability, suitable for industrial, commercial, and electronic manufacturing environments.
Applications include switching power supplies, disk drives, battery chargers, freewheeling diodes, converters, and reverse battery protection circuits. It supports minimum operating temperatures down to -55 °C and maximum operating temperatures up to 150 °C, ensuring performance in harsh environments.
Key features include a maximum forward voltage drop of 850 mV and a peak non-repetitive forward surge current of 120 A, providing durability against transient conditions. The diode is offered as a 2-pin single diode configuration in the reliable Vishay VSX series, designed for surface mount technology.
The diode’s surface mount design enables compact and efficient PCB layouts. Its low forward voltage drop reduces power dissipation in circuits. High surge current capability protects against occasional current spikes. Wide operating temperature range permits usage in diverse industrial settings.
Guard ring technology enhances robustness under electrical stress. Applicable to multiple power electronics applications including battery charging and converters. Meets moisture sensitivity level 1 per J-STD-020, ensuring manufacturing reliability.
Compact dimensions facilitate integration in modern electronic assemblies. Explore additional Vishay semiconductor components and Schottky diodes for your electronic design projects on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
