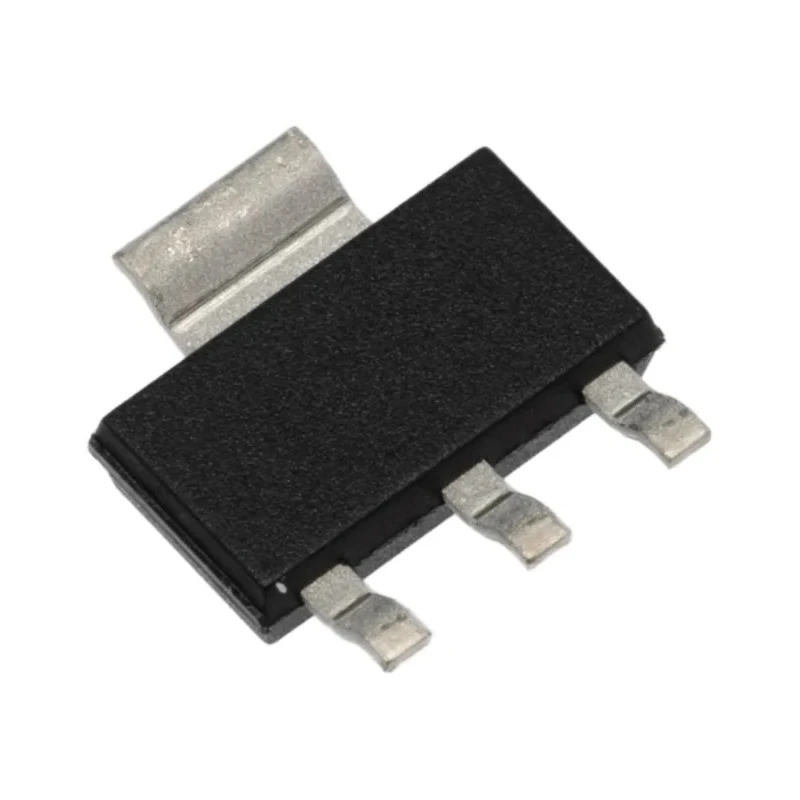

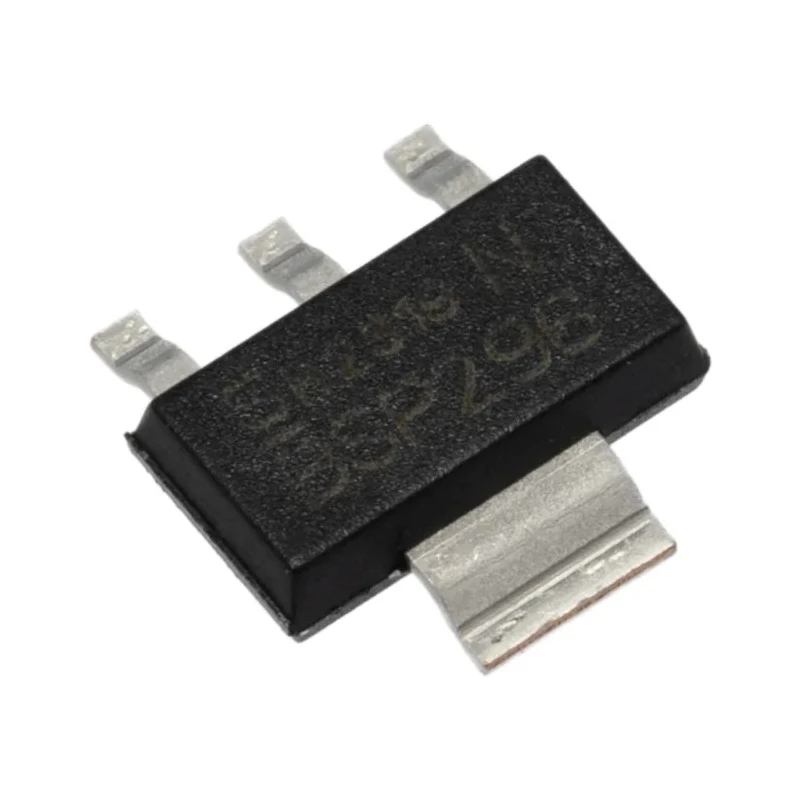

Infineon OptiMOS N-Channel MOSFET 100 V, 1.2 A Continuous Drain Current, Enhancement Mode, 4-Pin SOT-223 BSP296NH6327XTSA1

Infineon BSP296NH6327XTSA1 OptiMOS N-Channel Enhancement Mode MOSFET is designed for applications requiring reliable switching and control in automotive and industrial environments. Its 100 V drain-source rating and 1.2 A continuous current capacity make it suitable for compact power regulation and control systems.

Featuring a surface-mount 4-pin SOT-223 package, it supports efficient thermal conduction and a straightforward footprint for PCB integration. The 800 mΩ typical drain-source resistance minimizes power losses during operation, while the typical gate charge of 4.5 nC enables fast and efficient switching, improving efficiency in PWM applications.

This MOSFET can operate across a broad ambient temperature range from -55 °C to 150 °C and dissipates up to 1.8 W, ensuring durability under fluctuating thermal conditions encountered in automotive control systems, DC/DC converters, and battery management circuits.

AEC-Q101 qualification guarantees its suitability for automotive use cases including control modules, low-power motor drivers, and power distribution networks. Its ±20 V gate-source voltage rating requires appropriate gate drive design to protect the gate oxide layer.

The 100 V drain-source voltage rating is suited to switching high-voltage loads efficiently. The 1.2 A continuous current capability supports moderate load requirements. Surface-mount SOT-223 package enables compact PCB layouts with effective heat dissipation.

Low 800 milliohm drain-source resistance reduces energy loss during conduction. Fast switching supported by a low gate charge of 4.5 nC, beneficial in PWM circuits. Wide operating temperature range from -55 °C to 150 °C for demanding environmental conditions.

AEC-Q101 automotive standard certification ensures reliability in automotive applications. Maximum gate-source voltage tolerance of ±20 V protects gate integrity during operation.

This product is ideal for use in automotive control modules, compact DC/DC power converters, battery management systems, and other industrial electronic controls requiring efficient switching and moderate current capacity. Integration into embedded and portable equipment benefits from the robust thermal and electrical ratings.
