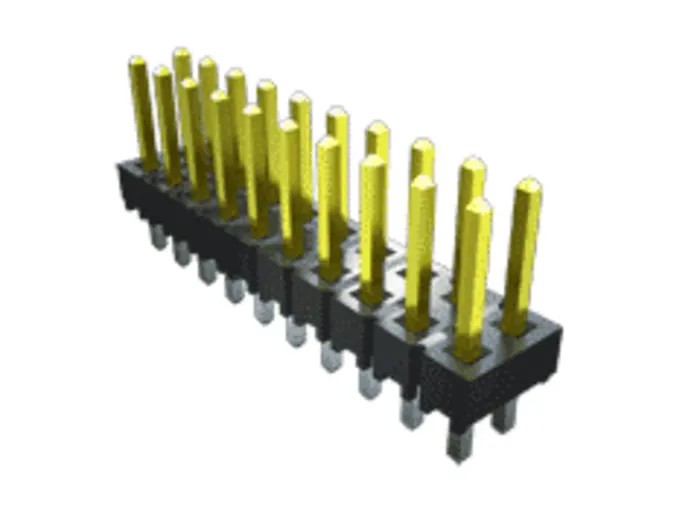

Samtec TSW Series Straight Through Hole Pin Header 14 Contacts 2.54 mm Pitch 2 Row Unshrouded TSW-107-07-S-D

Samtec TSW-107-07-S-D is a Straight Through Hole Pin Header designed for reliable PCB connections. Featuring 14 male contacts with a 2.54 mm pitch arranged in 2 rows, this unshrouded connector is ideal for electronic device assemblies requiring durable and precise board-to-board or wire-to-board interfaces.

The connector uses gold-plated phosphor bronze contacts housed in robust glass filled polyester, ensuring excellent electrical performance and insulation. It supports a maximum voltage of 465V and current up to 4.7A, making it suitable for a broad range of industrial and commercial electronics applications. Operating temperature ranges from -55°C to 125°C allow use in harsh environmental conditions.

This connector comes with through-hole termination type, providing a strong and reliable solder joint. The design includes .025" (0.635 mm) square post contact system and a 2.54 mm row pitch for compatibility with standard PCB layouts. As part of Samtec's Extended Life Product™ line, it meets rigorous quality standards including high mating cycles and 10-year Mixed Flowing Gas testing.

Special features include a variety of post heights, body positions, and plating options to optimize connector cost-effectiveness and ruggedness. The unshrouded design facilitates easy inspection and rework during PCB assembly.

Features 14 male phosphor bronze contacts plated with gold for reliable conductivity. Straight orientation with through-hole mount ensures strong PCB attachment. Constructed with glass filled polyester housing for durability and insulation.

Supports voltage up to 465V and current rating of 4.7A for robust performance. Operating temperature ranges from -55°C to 125°C for wide environmental suitability. Connector system supports both board-to-board and wire-to-board applications.

Offers many plating and ruggedizing options to optimize cost and performance.

Ideal for industrial electronics, manufacturing, telecommunications, and laboratory equipment, this pin header provides dependable performance and long service life. Samtec's reputation for quality and innovation ensures that the TSW-107-07-S-D will satisfy critical design requirements and maintain system integrity.
