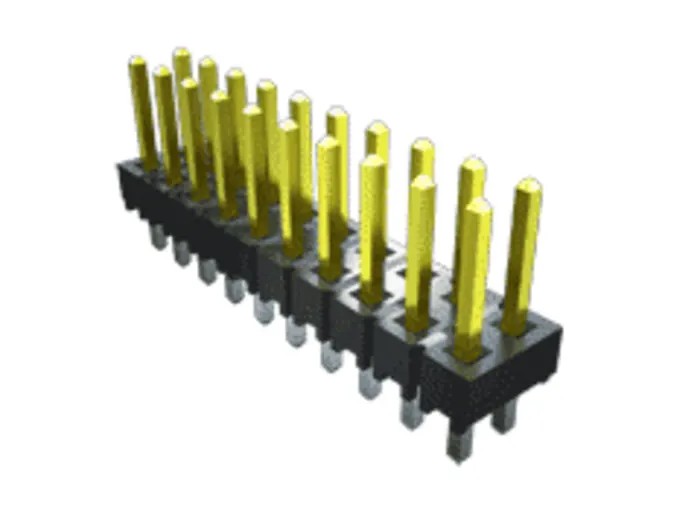

Samtec TSW Series Straight Through Hole Pin Header 14 Contacts 2.54 mm Pitch 2 Row Unshrouded TSW-107-07-G-D

Samtec TSW-107-07-G-D is a high-quality TSW Series straight through hole pin header featuring 14 male contacts arranged in 2 rows with a 2.54 mm pitch. Designed for reliable board-to-board and wire-to-board interconnection, this unshrouded connector boasts a durable glass filled polyester housing ensuring mechanical resilience.

Each contact is crafted from phosphor bronze with gold plating, delivering excellent conductivity and corrosion resistance. Rated at 4.7 amperes current capacity and 465 volts maximum operating voltage, it is engineered for demanding industrial and electronic applications.

The pin header supports operation in harsh temperature ranges from -55°C up to 125°C, making it suitable for use in varied environments including industrial, manufacturing, and electronic assembly plants. Featuring a solder termination through-hole design, it provides strong, stable connections on printed circuit boards.

This connector series offers multiple plating and ruggedizing options to optimize both cost and performance according to use requirements. The contact system utilizes a .025" (0.635 mm) square post designed for extended durability with high mating cycle capability and resistance to mixed flowing gas corrosion effects.

The header is made with glass filled polyester housing for durability. Contacts are male phosphor bronze plated with gold for reliable conductivity. Rated for a current capacity of 4.7 A and a voltage of 465 V. Designed for operation between -55°C and 125°C.

Offers many plating and ruggedizing options to optimize cost and performance. Termination is solder type with a 2.54 mm row pitch and .025" square post contact system. Connector orientation is straight with through-hole mounting.

This header is an extended life product with high mating cycles and resistance to mixed flowing gas.

This TSW series pin header is ideal for electronic, industrial, and manufacturing applications requiring reliable and durable PCB interconnections. Samtec’s stringent quality standards guarantee an extended lifecycle and high performance across diverse applications.
