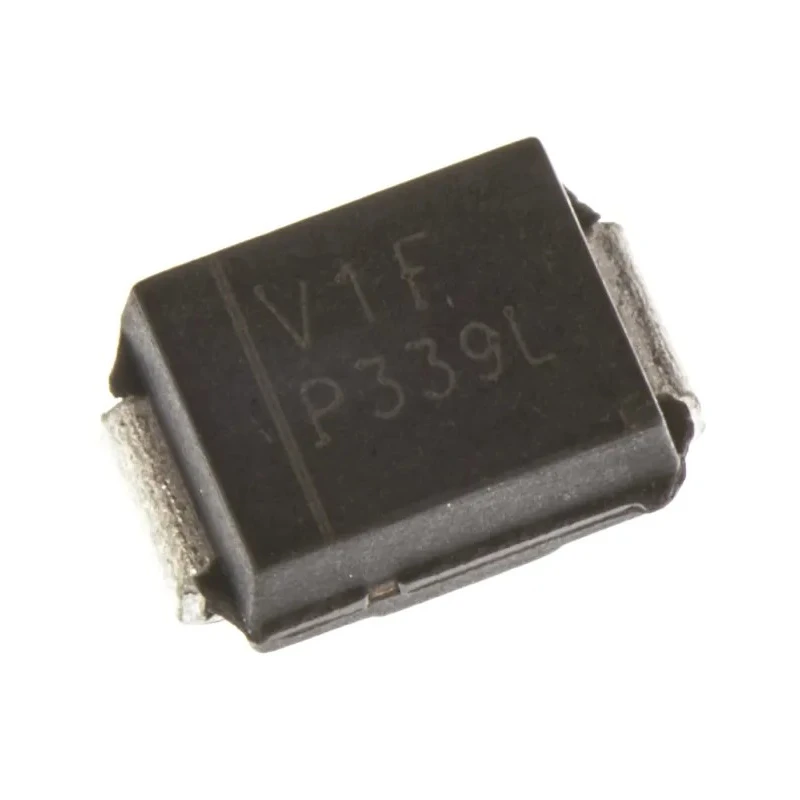

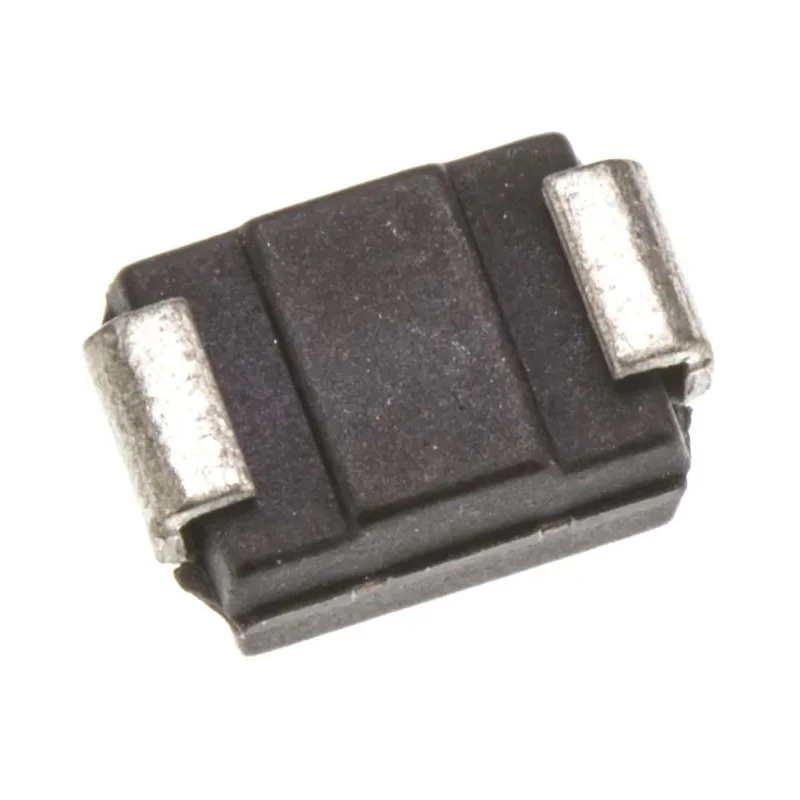

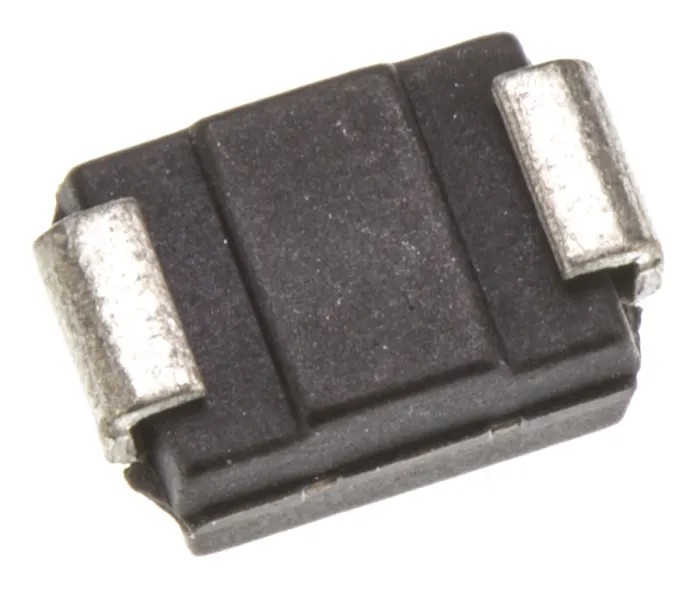

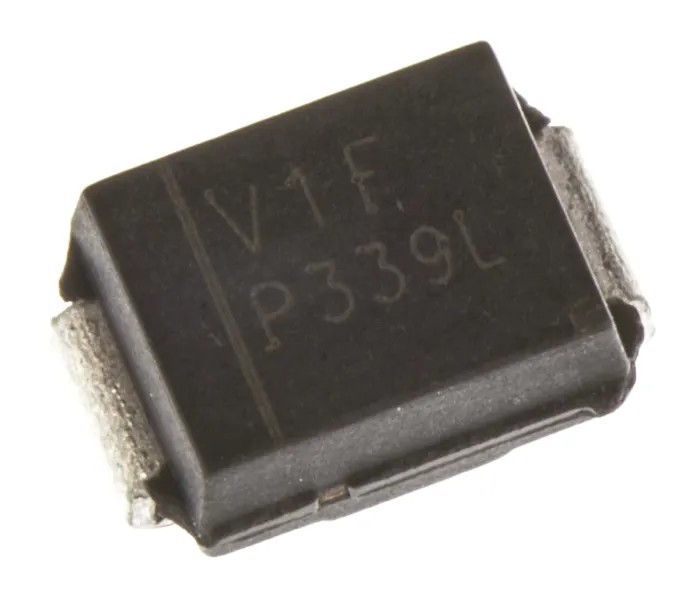

Vishay 40 V 1 A Schottky Diode 2-Pin DO-214AA VS-10BQ040-M3/5BT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Length | 4.7mm |
| Model | VS-10BQ040-M3/5BT |
| Width | 3.8mm |
| Mount Type | Surface |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 430A |
| Maximum Forward Voltage Vf | 0.52V |
Key Features
- Maximum continuous forward current of 1 ampere for reliable operation.
- Peak reverse repetitive voltage rated at 40 volts.
- Extremely low forward voltage of 0.52 volts to reduce power dissipation.
- High surge current capability up to 430 amperes for transient conditions.
- Operating temperature range from -55 to 150 degrees Celsius for harsh environments.
- Compact DO-214AA package with length 4.7 mm and width 3.8 mm for space-constrained PCB layouts.
- Single diode configuration suitable for power rectification tasks.
- Peak reverse current of only 100 microamperes ensuring minimal leakage.
Product Description
Vishay VS-10BQ040-M3/5BT Schottky Diode is a surface mount discrete semiconductor component designed for power rectification in electronic circuits. It supports a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 40 volts, making it suitable for low voltage, high-efficiency rectifying applications.
This diode features a low maximum forward voltage drop of 0.52 volts which reduces conduction losses and helps in energy-efficient designs. The 2-pin DO-214AA package with a compact footprint of 4.7 mm length and 3.8 mm width allows for optimized PCB space utilization.
It offers a high peak non-repetitive forward surge current capacity of 430 amperes, enabling it to withstand high transient load conditions without degradation. The operational temperature range from -55°C to 150°C ensures reliable performance in demanding industrial, automotive, and power supply environments.
The diode’s fast switching capabilities and low reverse leakage current (100 microamperes peak reverse current) make it ideal for switching power supplies, freewheeling diodes, and other high-frequency applications. Its surface mount design supports automated assembly lines for higher production efficiency.
Maximum continuous forward current: 1 A. Peak reverse repetitive voltage: 40 V. Maximum forward voltage drop: 0.52 V. Peak surge current: 430 A. Operating temperature range: -55°C to 150°C. Package type: DO-214AA surface mount.
Length: 4.7 mm, Width: 3.8 mm. Single diode configuration. Low leakage current.
This product serves critical roles in electronics manufacturing, automotive electronics, power converters, industrial automation, and telecommunications equipment. Vishay’s high-performance Schottky diodes are known for their durability, fast recovery, and efficiency, making the VS-10BQ040-M3/5BT a dependable choice for engineers and designers seeking reliable diode solutions.
Explore more Schottky Diodes and Rectifiers at EnvMart for industrial and commercial semiconductor components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-10BQ040-M3/5BT Schottky diode is 1 ampere.
This model has a peak reverse repetitive voltage rating of 40 volts.
The maximum forward voltage drop for this diode is 0.52 volts.
It can handle a peak non-repetitive forward surge current of up to 430 amperes.
The operating temperature range for the VS-10BQ040-M3/5BT is from -55°C to 150°C.
This diode is packaged in a DO-214AA surface mount configuration.
The dimensions of this model are 4.7 mm in length and 3.8 mm in width.
The peak reverse current for the VS-10BQ040-M3/5BT is 100 microamperes.
It features a single diode configuration suitable for power rectification tasks.
This diode is suitable for applications such as switching power supplies, freewheeling diodes, and high-frequency applications.
The VS-10BQ040-M3/5BT has a pin count of 2.
The Vishay VS-10BQ040-M3/5BT is manufactured in India.
