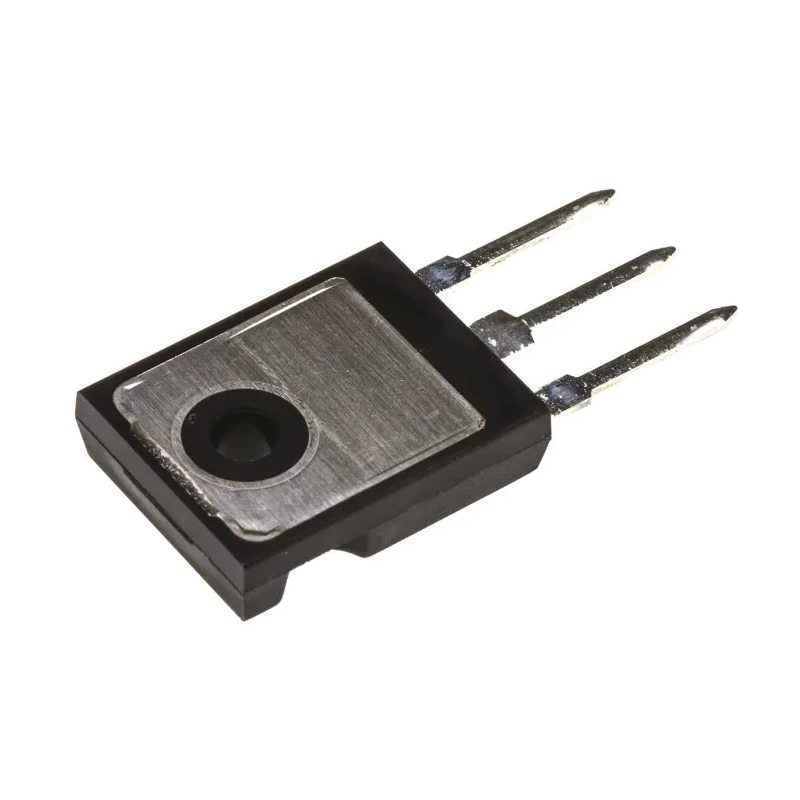

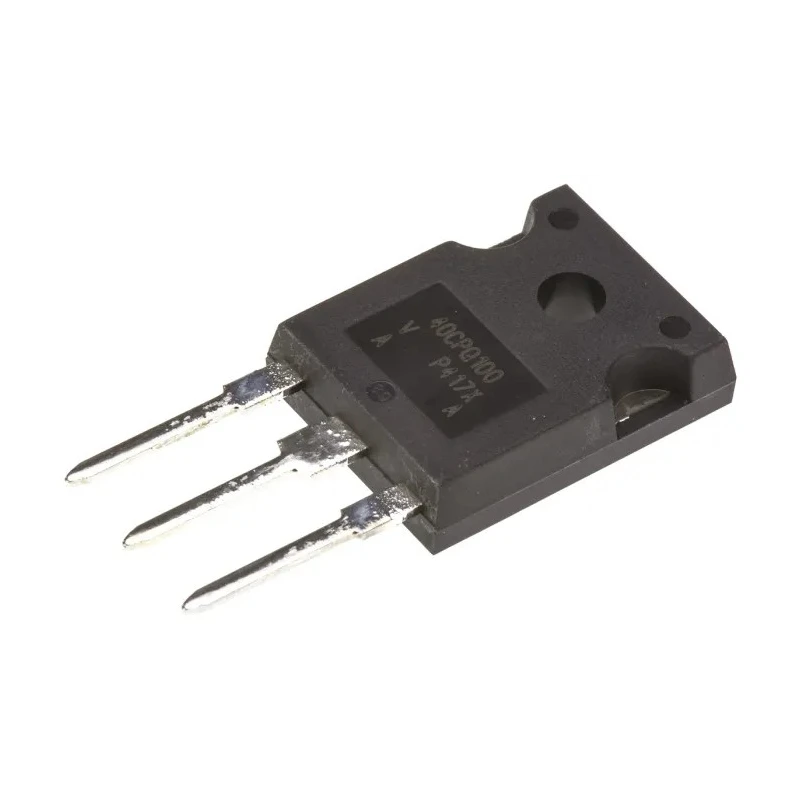

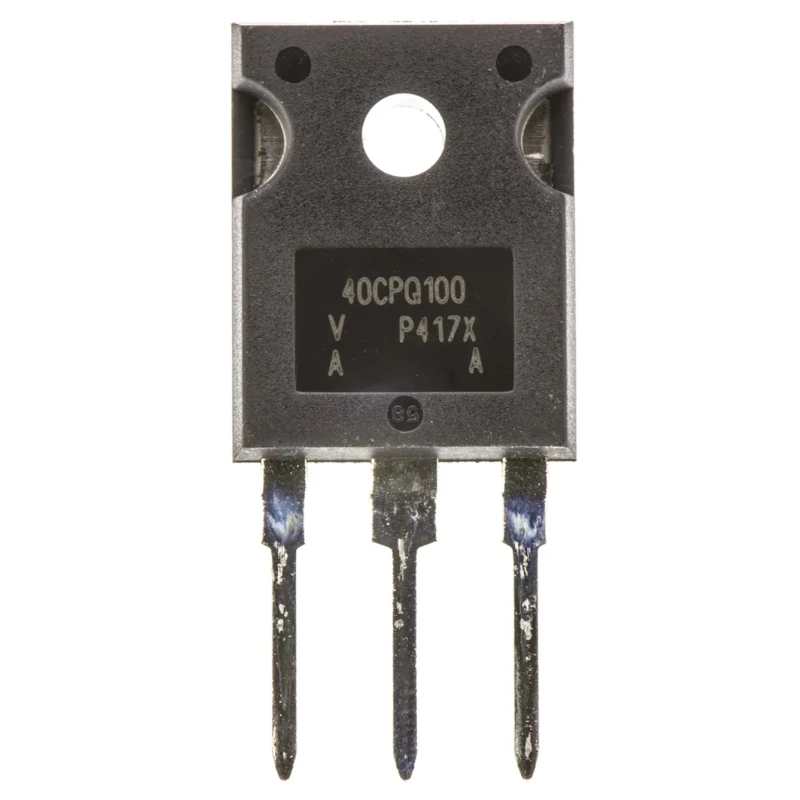

Vishay 100 V 40 A Schottky Diode 3-Pin TO-247AC VS-40CPQ100-N3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 20.7mm |
| Brand | Vishay |
| Height | 20.7mm |
| Length | 15.87mm |
| Model | VS-40CPQ100-N3 |
| Width | 5.31mm |
| Mount Type | Through Hole |
| Series | VS-40CPQ0-N3 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 40A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.25mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 3kA |
| Maximum Forward Voltage Vf | 910mV |
| Vishay 100V 40A, Dual Schottky Diode, 3-Pin TO-247AC VS-40CPQ100-N3Brand | Vishay |
| Schottky barrier diode,40CPQ100 40A 100VBrand | Vishay |
Key Features
- Through Hole mounting ensures reliable PCB integration.
- TO-247AC package provides robust mechanical stability and excellent thermal dissipation.
- Peak Reverse Repetitive Voltage of 100 V supports demanding power applications.
- Maximum Forward Voltage of 910 mV ensures low conduction losses.
- Wide operating temperature range from -55°C to 175°C enables use in harsh environments.
- Peak Non-Repetitive Forward Surge Current rating up to 3 kA supports transient loads.
- Compact dimensions of 15.87 mm length and 20.7 mm diameter fit space-constrained designs.
- Common cathode diode configuration for standard circuit applications.
Product Description
Vishay VS-40CPQ100-N3 is a high-performance Schottky diode designed for power electronics requiring fast switching and low forward voltage drop. Featuring a through-hole mount and TO-247AC package, this diode reliably handles continuous forward currents up to 40 A and reverse repetitive voltages up to 100 V.
The diode exhibits a maximum forward voltage of 910 mV and a peak non-repetitive forward surge current rating of 3 kA, making it suitable for transient and surge conditions in industrial and automotive electronics.
Its operating temperature range from -55°C to 175°C supports usage in demanding environments, including industrial power supplies and automotive applications. Compact physical dimensions (15.87 mm length, 20.7 mm diameter, 5.31 mm width, and 20.7 mm height) ensure efficient PCB integration.
Schottky barrier technology enables low power loss and fast switching, ideal for power rectification and freewheeling diode roles in power management circuits. This diode is ideal for semiconductor circuits in industrial, automotive, and power supply applications where efficiency and reliability are paramount.
Through Hole mounting ensures reliable PCB integration. TO-247AC package provides robust mechanical stability and excellent thermal dissipation. Peak Reverse Repetitive Voltage of 100 V supports demanding power applications.
Maximum Forward Voltage of 910 mV ensures low conduction losses. Wide operating temperature range from -55°C to 175°C enables use in harsh environments. Peak Non-Repetitive Forward Surge Current rating up to 3 kA supports transient loads.
Compact dimensions of 15.87 mm length and 20.7 mm diameter fit space-constrained designs. Common cathode diode configuration for standard circuit applications. Explore more Vishay semiconductor and diode products at EnvMart to meet your industrial and electronic component needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 40 A.
The peak reverse repetitive voltage rating is 100 V.
The maximum forward voltage drop is 910 mV.
This diode operates within a temperature range of -55°C to 175°C.
It features a through-hole mounting type, ensuring reliable PCB integration.
The dimensions are 15.87 mm in length, 20.7 mm in diameter, and 5.31 mm in width.
The peak non-repetitive forward surge current rating is up to 3 kA.
This model has a common cathode diode configuration.
It comes in a TO-247AC package type.
The peak reverse current is 1.25 mA.
This diode is suitable for industrial and automotive electronics, particularly in power management circuits.
The country of origin for this diode is India.
