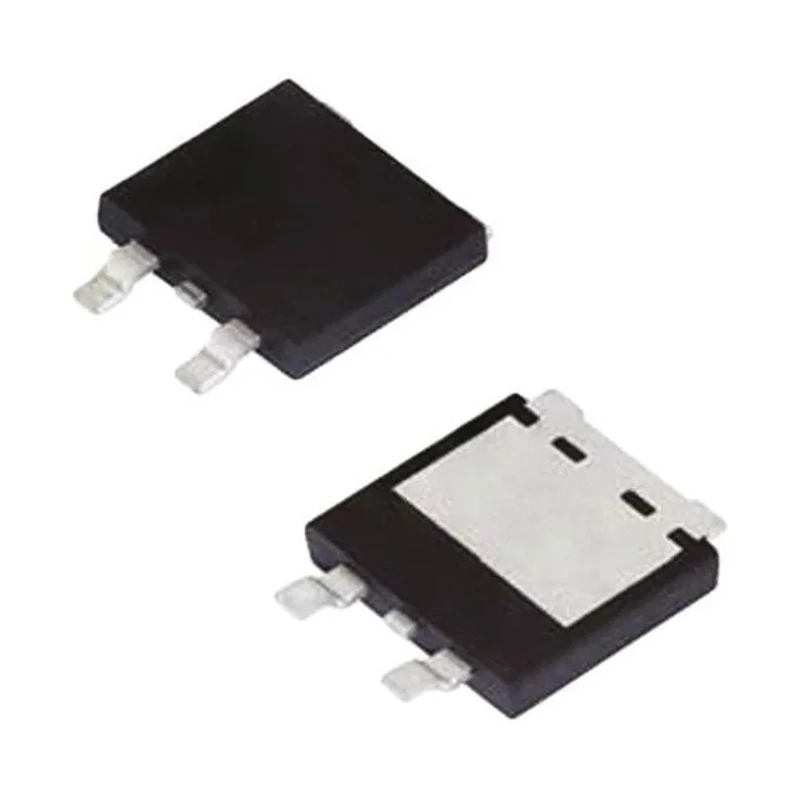

Vishay 100 V 40 A Schottky Diode Surface Mount TO-252 Package V40PW10CHM3/I
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.4mm |
| Length | 6.32mm |
| Model | V40PW10CHM3/I |
| Width | 6.72mm |
| Mount Type | Surface |
| Series | V40X |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 40A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 35mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 240A |
| Maximum Forward Voltage Vf | 890mV |
Key Features
- The diode uses TMBS Trench MOS Barrier Schottky technology for enhanced performance.
- It features a 3-pin DPAK surface mount package suitable for compact PCB designs.
- Maximum forward voltage is 890 mV ensuring efficient conduction with minimal power loss.
- Operating temperature range spans from -40°C to 150°C, making it suitable for demanding industrial environments.
- Peak non-repetitive forward surge current is rated at 240 A for transient load capacities.
- Automotive AEC-Q101 qualified, supporting reliable use in automotive applications.
- Physical dimensions are 6.32 mm length, 6.72 mm width, and 1.4 mm height, enabling space-efficient mounting.
- Low peak reverse current of 35 mA contributes to minimal leakage losses.
Product Description
Vishay V40PW10CHM3/I is a high-performance Schottky diode designed for power electronics applications requiring efficient switching and low forward voltage drop. With a maximum continuous forward current of 40 amperes and peak repetitive reverse voltage of 100 volts, it is well suited for use in power supply circuits, automotive battery management, and motor control modules. The diode utilizes advanced TMBS (Trench MOS Barrier Schottky) technology to achieve superior switching speeds and low conduction losses.
Encapsulated in a compact TO-252 surface mount package with 3 pins, this diode facilitates straightforward PCB assembly and effective thermal management. Its physical dimensions of 6.32 mm length, 6.72 mm width, and 1.4 mm height allow designers to implement space-saving layouts. The maximum forward voltage of 890 mV ensures improved efficiency by minimizing power dissipation during operation.
Vishay’s diode maintains performance stability across a wide temperature range from -40°C to 150°C, supporting demanding industrial and automotive operational conditions. The component’s peak non-repetitive forward surge current rating of 240 A provides resilience against transient loads and inrush currents.
The TMBS technology offers enhanced switching speeds and improved efficiency. The common cathode diode configuration suits typical rectification tasks. Low peak reverse current of 35 mA reduces leakage and increases reliability.
AEC-Q101 automotive certification attests to quality and safety standards compliance. Compact TO-252 package ensures ease of installation and thermal control. Physical dimensions support space-optimized PCB designs in modern electronics.
Wide operating temperature supports automotive and industrial environments.
This Vishay V40PW10CHM3/I Schottky diode is a trusted choice for engineers and designers working in power electronics, automotive electronics, and industrial control applications. It offers a balance of ruggedness, efficiency, and form factor. Explore more Vishay semiconductor components at EnvMart for comprehensive solutions in your electronic design projects.
Explore more products in our Schottky Diodes & Rectifiers category.
