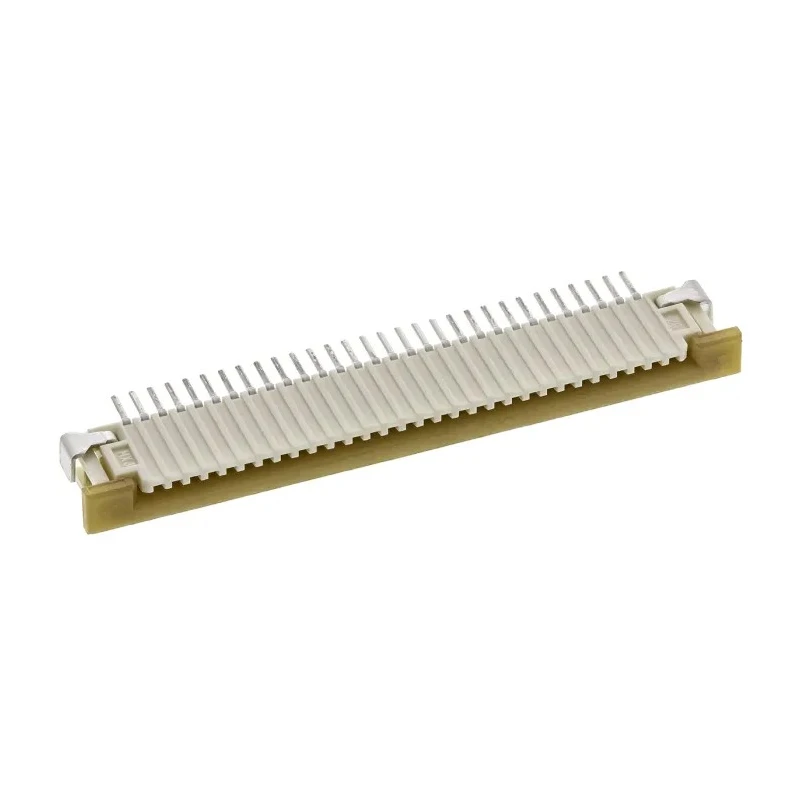

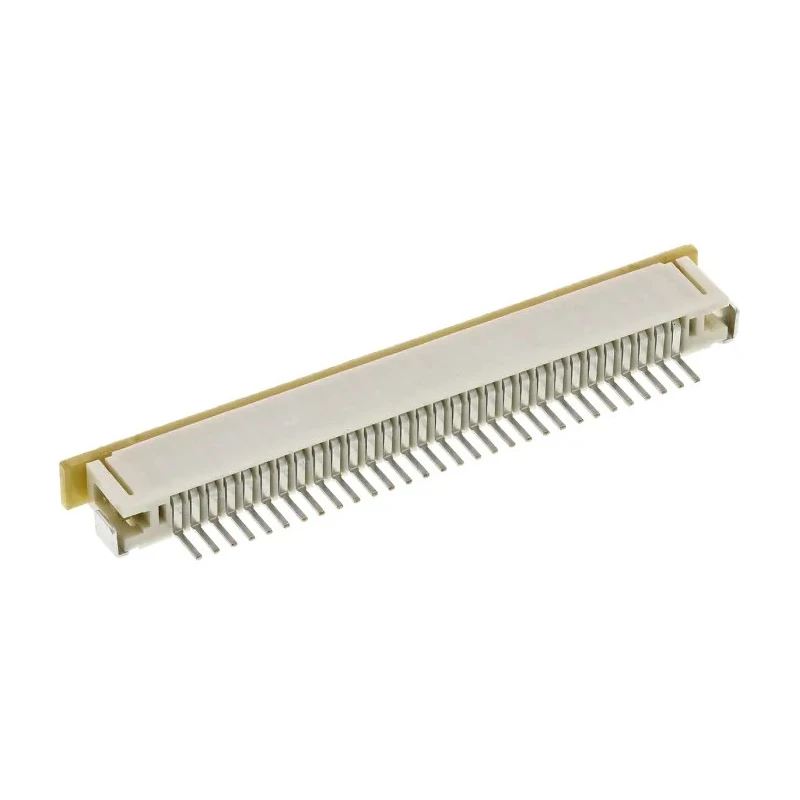

Molex 1 mm Pitch 30 Way Right Angle Female FPC Connector Solder 52271-3079

Molex 52271-3079 is a high-quality 30 Way Right Angle Female FPC Connector featuring a 1 mm pitch designed for surface-mount technology (SMT) applications. This connector utilizes a Zero Insertion Force (ZIF) slide type actuator, providing easy cable insertion and secure retention to ensure reliable electrical contact with minimal wear during repeated cycles.

The connector's contacts are made of phosphor bronze and plated with a tin bismuth alloy, delivering excellent conductivity and durability. The nylon housing provides robust insulation and a compact form factor ideal for use in tight packaging environments.

Operating voltage is rated at 50V AC with a current capacity of 500mA, making it suitable for low-power electronic systems. The connector supports a temperature range from -40°C to 85°C, allowing it to perform reliably in various environmental conditions encountered in automotive, consumer electronics, medical equipment, and telecommunications devices.

Its right angle orientation with bottom contacts facilitates efficient PCB mounting and routing. The solder termination type and solder tabs enhance mechanical stability and strain relief on the PCB, preventing joint damage during mechanical stress or vibration.

Featuring a locking mechanism to maintain secure engagement with the FPC cable, this connector supports designs requiring robust connectivity and repeated cable insertions and removals. The slide type actuator rotates 30 degrees for user-friendly operation, and movable contacts ensure consistent retention force.

Applications include automotive navigation systems, digital cameras, home security devices, tablets, notebooks, GPS, smartphones, and other mobile electronics where compact, reliable FPC connections are essential.

Zero Insertion Force slide type actuator for easy mating and secure connection. Phosphor bronze contacts plated with tin bismuth alloy for durability. Nylon housing ensuring insulation and compact design. Rated 50V AC and 500mA current suitable for low power electronics.

Operational temperature range from -40°C to 85°C. Right angle orientation with bottom contacts for PCB mounting efficiency. Locking mechanism provides secure connector retention. Solder tabs provide strain relief and secure solder tail joints on PCB.

This Molex FPC connector is ideal for industrial, automotive, consumer electronics, medical, and communication equipment assembly. Browse more high-quality FPC Connectors in the Electronics Components category on EnvMart to find a perfect match for your application needs.
