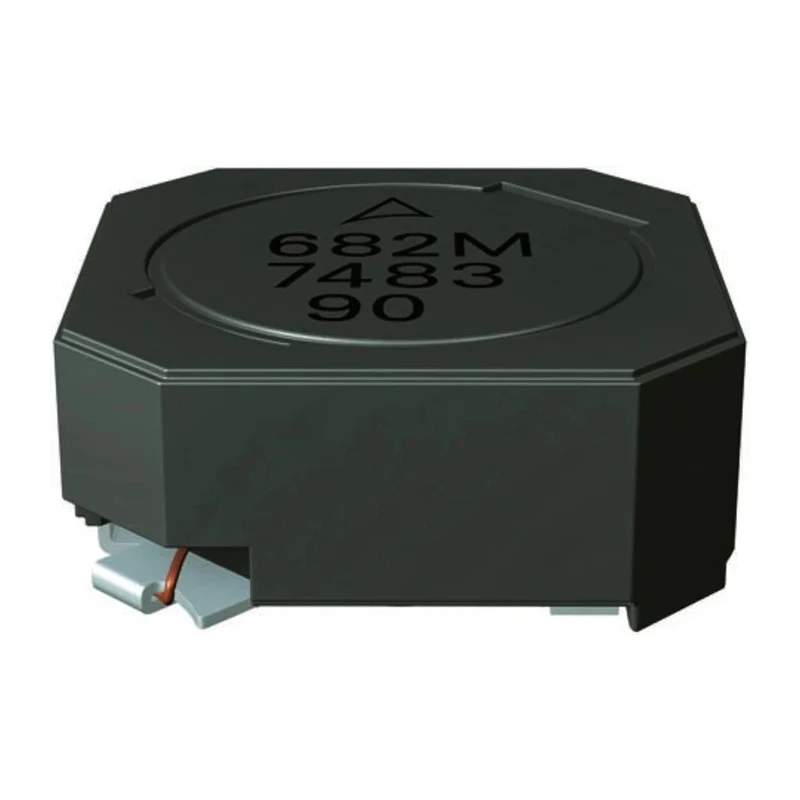

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±20 % 2.25 A Idc B82464G4223M000

Free Delivery in India | Lowest Global Shipping Charges

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±20 % 2.25 A Idc B82464G4223M000



Category Surface Mount Inductors Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	4.8mm
Length	10.4mm
Model	B82464G4223M000
Depth	10.4mm
Packaging	Tape & Reel
Series	B82462-G4
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-55°C
Core Material	Ferrite
Inductance	22μH
Standards/Approvals	RoHS
Maximum DC Current	2.25A
Pin Count	2
Maximum DC Resistance	52mΩ
Inductance Tolerance	±20 %
Termination Style	Solder
Maximum Self Resonant Frequency	13MHz
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

Magnetically shielded design reduces electromagnetic interference in sensitive applications.
Ferrite core construction offers excellent magnetic properties and stability.
Wide operating temperature range from -55°C to 150°C ensures reliability in diverse environments.
Maximum DC current rating of 2.25 A suitable for power supply filtering.
Low maximum DC resistance of 52 mΩ minimizes power loss during operation.

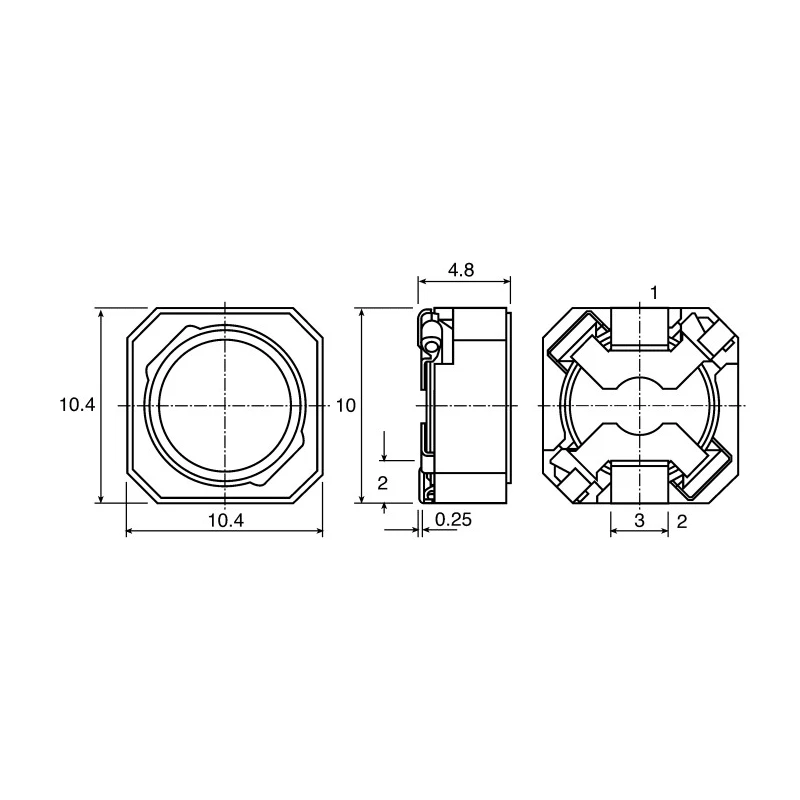

Standard SMT size of 10.4 mm x 10.4 mm with a height of 4.8 mm supports compact PCB layouts.
Automotive grade AEC-Q200 compliant for stringent quality requirements.
Packaging in tape and reel format facilitates automated assembly processes.

Product Description

TDK B82464G4223M000 is a shielded wirewound surface mount inductor featuring a ferrite core, offering an inductance value of 22 μH with a tolerance of ±20 % and a maximum DC current rating of 2.25 A. Designed for compact electronic devices, the inductor’s magnetically shielded construction minimizes electromagnetic interference (EMI), making it ideal for use in power supply filtering and automotive circuits.

The component measures 10.4 mm in length and depth, with a height of 4.8 mm, conforming to a standard SMT footprint to ease PCB integration. It possesses a low DC resistance of 52 mΩ, enhancing efficiency by reducing power losses. This inductor is capable of operating over a wide temperature range from -55°C to 150°C, ensuring dependable performance in harsh and demanding environments.

The B82464G4223M000 model meets the automotive AEC-Q200 standard, demonstrating TDK's commitment to high reliability and quality under rigorous conditions. Its solder termination style guarantees robust mechanical and electrical connections on printed circuit boards.

Packaged in tape and reel format, this inductor supports high-volume manufacturing with automated pick-and-place assembly equipment. The product complies with RoHS regulations, confirming the use of environmentally friendly materials.

Magnetically shielded wirewound inductor. Ferrite core construction for optimal magnetic properties. Inductance: 22 μH with ±20 % tolerance. Maximum DC current: 2.25 A. Low DC resistance of 52 mΩ reduces power loss. Operating temperature range: -55°C to 150°C.

Automotive standard compliance: AEC-Q200. Solder termination style for secure mounting. Packaging: Tape & Reel for assembly efficiency.

This high-quality TDK surface mount inductor is suitable for use in electronic devices requiring stable inductance and minimal electromagnetic interference, including industrial, automotive, and consumer electronics applications. For a broad selection of related components, explore our Electronics Components and Surface Mount Inductors range at EnvMart.
