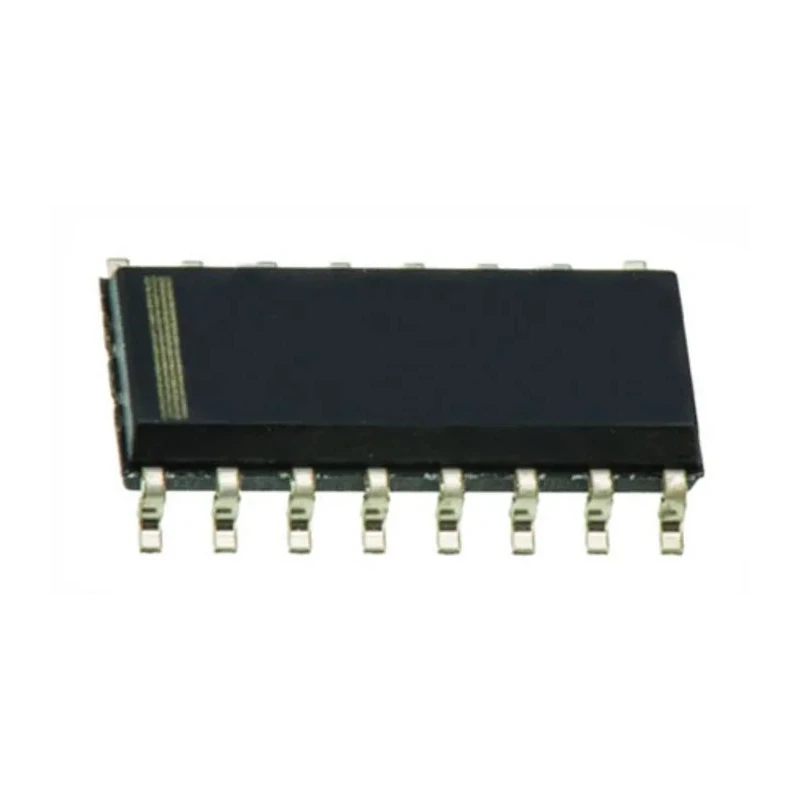

Texas Instruments Instrumentation Amplifier 2.5 mV Input Offset 5 MHz Gain Bandwidth 12 mA SOIC PGA206UA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 2.35mm |
| Length | 10.28mm |
| Model | PGA206UA |
| Mount Type | Surface |
| Series | PGA206 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 16 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 4.5V |
| Supply Current | 12mA |
| GBP - Gain Bandwidth Product | 5MHz |
| Vos - Input Offset Voltage | 2.5 mV |
| Slew Rate | 25V/μs |
| CMRR - Common Mode Rejection Ratio | 75dB |
Key Features
- Compact SOIC 16-pin surface mount package for efficient PCB integration.
- Single channel amplifier designed for precise instrumentation applications.
- Operates from 4.5 V to 18 V supply voltage for versatile power options.
- High common mode rejection ratio of 75 dB for noise reduction.
- Fast slew rate of 25 V/μs supports dynamic signal response.
- Wide operating temperature range from -40°C to 85°C providing environmental reliability.
- Low supply current of 12 mA supports energy-efficient designs.
- Gain bandwidth product of 5 MHz suitable for moderate frequency signal amplification.
Product Description
The Texas Instruments PGA206UA is a high-performance instrumentation amplifier designed to provide precise amplification with a low input offset voltage of 2.5 mV. It features a gain bandwidth product of 5 MHz and operates on a supply voltage range of 4.5 V to 18 V, making it suitable for various industrial, laboratory, and instrumentation applications.
This single-channel device comes in a 16-pin SOIC surface mount package that supports compact PCB designs and efficient mounting. Its high common mode rejection ratio (CMRR) of 75 dB ensures excellent noise reduction, critical for accurate signal processing in environments with electrical interference.
The PGA206UA maintains a fast slew rate of 25 V/μs, allowing it to handle dynamic signal changes effectively. Additionally, it functions reliably within a temperature range from -40°C to 85°C, catering to harsh industrial and automotive testing conditions where temperature fluctuations are common.
Power consumption is optimized with a supply current of only 12 mA, supporting energy-efficient system designs. The amplifier's physical dimensions of 10.28 mm length and 2.35 mm height provide a compact footprint for dense PCB layouts.
Compact SOIC 16-pin package for space-saving PCB integration. Single channel instrumentation amplifier for precise signal conditioning. Low input offset of 2.5 mV for accurate measurement applications. Wide power supply range from 4.5 V to 18 V for versatile use.
High CMRR of 75 dB reduces noise and interference effects. Slew rate of 25 V/μs enables fast response to input changes. Operating temperature range from -40°C to 85°C for robust applications. Supply current of 12 mA supports low power consumption.
Length 10.28 mm and height 2.35 mm for compact board design.
This amplifier is ideal for industrial, laboratory, measurement, and instrumentation use cases requiring precise and stable electronic gain. It facilitates improved production efficiency and accurate electronics performance, commonly used in signal processing circuits.
Explore the Electronics & Electricals category on EnvMart to find complementary semiconductor and instrumentation components for your applications.
Explore more products in our Instrumentation Amplifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input offset voltage of this model is 2.5 mV, which is crucial for accurate measurement applications.
The gain bandwidth product of the PGA206UA is 5 MHz, making it suitable for moderate frequency signal amplification.
This amplifier operates within a supply voltage range of 4.5 V to 18 V, allowing for versatile power options.
The common mode rejection ratio (CMRR) is 75 dB, which helps reduce noise and interference effects in signal processing.
It operates reliably within a temperature range from -40°C to 85°C, suitable for harsh industrial environments.
The slew rate of this instrumentation amplifier is 25 V/μs, enabling it to handle dynamic signal changes effectively.
This model has a length of 10.28 mm and a height of 2.35 mm, providing a compact footprint for PCB designs.
The PGA206UA is a single-channel instrumentation amplifier, designed for precise signal conditioning.
The supply current for this model is 12 mA, supporting energy-efficient designs.
It comes in a compact SOIC 16-pin surface mount package, suitable for efficient PCB integration.
This instrumentation amplifier is commonly used in industrial, laboratory, measurement, and instrumentation applications requiring precise and stable electronic gain.
The PGA206UA is manufactured in India.
