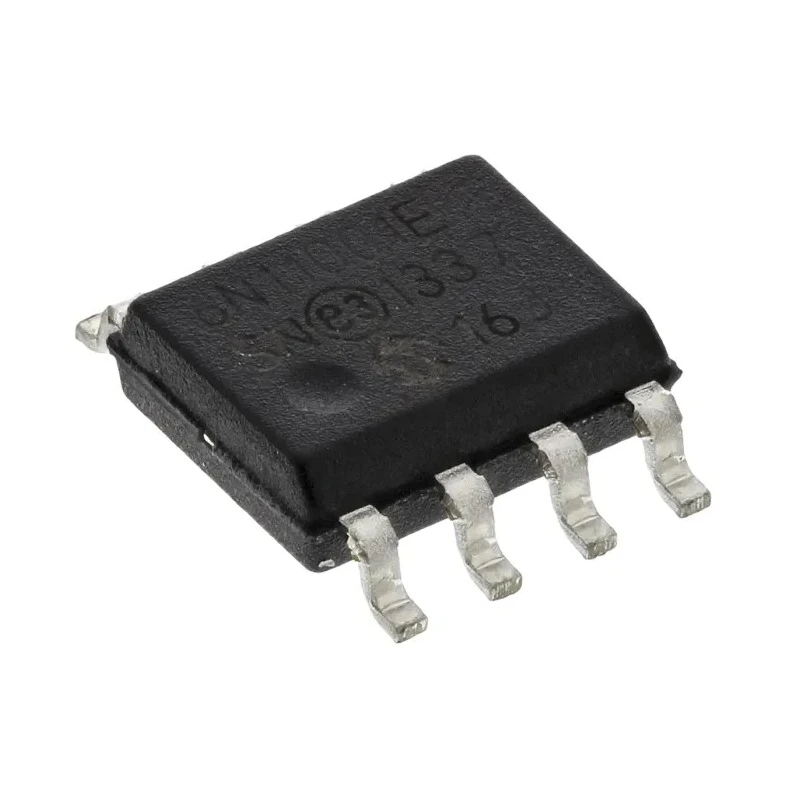

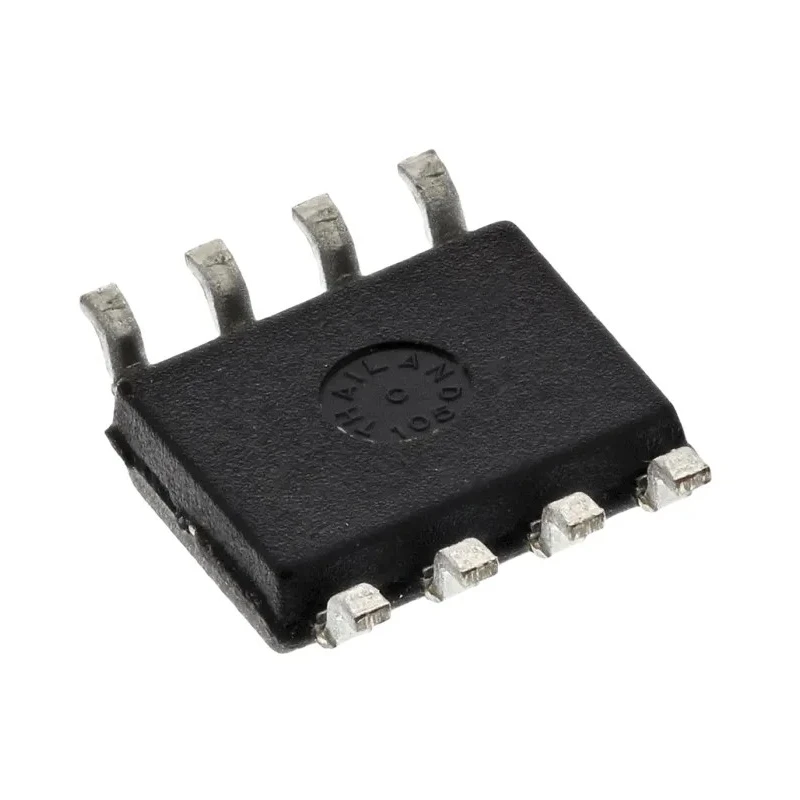

Microchip Instrumentation Amplifier SOIC Package 8-Pin 0.35 V Offset 500 kHz 800 μA MCP6N11
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | MCP6N11 |
| Mount Type | Surface |
| Series | MCP6N11 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Supply Current | 800μA |
| GBP - Gain Bandwidth Product | 500kHz |
| Vos - Input Offset Voltage | 0.35 V |
| Slew Rate | 9V/μs |
| CMRR - Common Mode Rejection Ratio | 70dB |
Key Features
- Features a 0.35 V input offset voltage enhancing signal accuracy.
- Operates with a gain bandwidth product of 500 kHz for fast signal processing.
- Consumes low supply current of 800 μA suitable for low-power applications.
- Supports a supply voltage range from 1.8 V to 5.5 V for flexible deployment.
- Designed with 8-pin SOIC package for surface mount applications.
- Operational temperature range from -40°C to 125°C ensuring robust performance.
- Provides a common mode rejection ratio of 70 dB for noise minimization.
- Compact dimensions with a length of 4.9 mm and height of 1.25 mm.
Product Description
Microchip MCP6N11 Instrumentation Amplifier features a low input offset voltage of 0.35 V and a gain bandwidth product of 500 kHz, packaged in an 8-pin SOIC surface mount form factor. It operates efficiently with a supply voltage range of 1.8 V to 5.5 V and a low supply current of 800 μA, making it suitable for precision amplification tasks in electronic circuits.
This single-channel device excels in providing high accuracy with a common mode rejection ratio of 70 dB, minimizing noise interference in measurement systems. Its wide operating temperature range from -40°C to 125°C ensures reliability in diverse and demanding environments.
The compact dimensions (4.9 mm length and 1.25 mm height) and surface mount design allow easy integration into high-density PCBs commonly used in industrial and instrumentation applications.
Instrumentation amplifiers like the MCP6N11 are widely utilized in industrial automation, laboratory instrumentation, medical devices, and embedded systems where precise differential signal amplification is critical.
Features a 0.35 V input offset voltage enhancing signal accuracy. Operates with a gain bandwidth product of 500 kHz for fast signal processing. Consumes low supply current of 800 μA suitable for low-power applications. Supports a supply voltage range from 1.8 V to 5.5 V for flexible deployment.
Designed with 8-pin SOIC package for surface mount applications. Operational temperature range from -40°C to 125°C ensuring robust performance. Provides a common mode rejection ratio of 70 dB for noise minimization. Compact dimensions with a length of 4.9 mm and height of 1.25 mm.
Ideal for precision instrumentation and measurement in electronic systems. Set contains 1 unit of Microchip MCP6N11 Instrumentation Amplifier supplied in a tube packaging optimized for manufacturing efficiency and easy insertion.
Explore more precision semiconductor components and Instrumentation Amplifiers in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6N11 has a gain bandwidth product of 500 kHz, allowing for fast signal processing.
It features a low input offset voltage of 0.35 V, which enhances signal accuracy.
This model supports a supply voltage range from 1.8 V to 5.5 V, providing flexibility for various applications.
It consumes a low supply current of 800 μA, making it suitable for low-power applications.
The MCP6N11 provides a common mode rejection ratio of 70 dB, which helps minimize noise interference.
This unit has compact dimensions of 4.9 mm in length and 1.25 mm in height, suitable for high-density PCBs.
It operates within a temperature range from -40°C to 125°C, ensuring reliability in various environments.
This model is designed in an 8-pin SOIC package, suitable for surface mount applications.
The MCP6N11 is a single-channel instrumentation amplifier.
The slew rate of this amplifier is 9 V/μs, which affects its response time to changes in input signals.
It is widely utilized in industrial automation, laboratory instrumentation, medical devices, and embedded systems for precise differential signal amplification.
The MCP6N11 is manufactured in Thailand.
