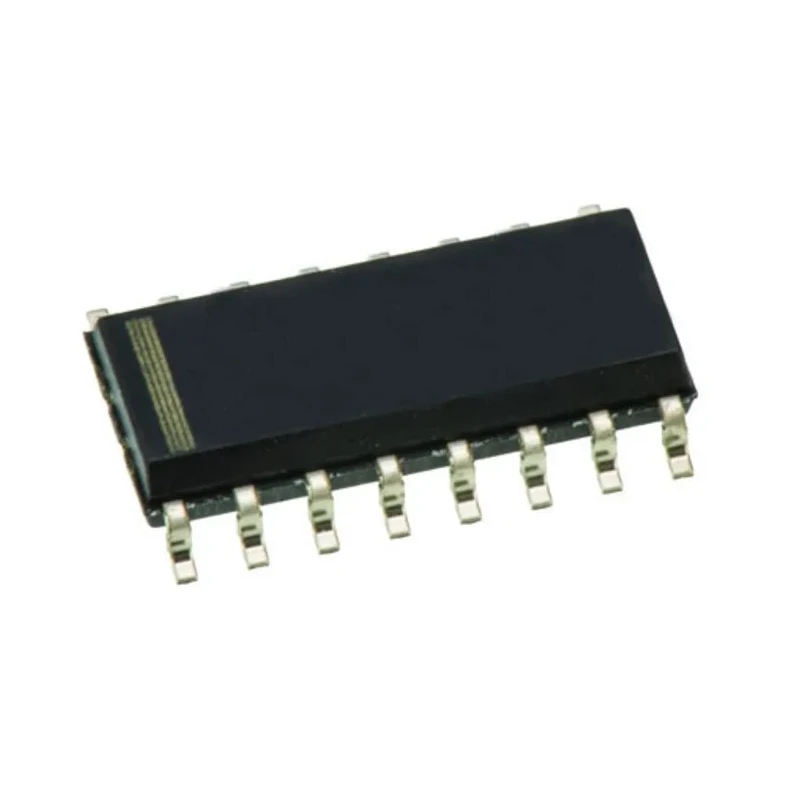

Texas Instruments Instrumentation Amplifier 1 mV Offset 2 MHz, 16-Pin SOIC, 4.5 mA INA111AU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 2.35mm |
| Length | 10.28mm |
| Model | INA111AU |
| Mount Type | Surface |
| Series | INA111 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 16 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 6V |
| Supply Current | 4.5mA |
| GBP - Gain Bandwidth Product | 2MHz |
| Vos - Input Offset Voltage | 1 mV |
| Slew Rate | 17V/μs |
| CMRR - Common Mode Rejection Ratio | 75dB |
Key Features
- Provides accurate amplification with 1 mV input offset voltage.
- Operates over a supply voltage range of 6V to 18V.
- Supports a bandwidth of 2 MHz suitable for high-speed applications.
- Low power consumption with a supply current of 4.5 mA.
- 16-pin surface mount SOIC package ensures easy PCB integration.
- Common Mode Rejection Ratio (CMRR) of 75 dB for noise reduction.
- Designed for reliable operation from -40°C to 85°C.
- Slew rate of 17 V/μs supports fast signal changes.
Product Description
Texas Instruments INA111AU is a precision instrumentation amplifier offering excellent accuracy and low noise performance, suitable for industrial, laboratory, medical, and instrumentation applications. It features a low input offset voltage of 1 mV and a gain bandwidth product of 2 MHz, making it ideal for amplification of low-level signals in demanding environments.
The device operates within a supply voltage range of 6V to 18V, drawing a low supply current of 4.5 mA, which makes it energy efficient for battery-powered and portable systems. Packaged in a compact 16-pin SOIC surface-mount package with pin length of 10.28 mm and height of 2.35 mm, it is designed for easier integration onto PCBs.
With a high common mode rejection ratio (CMRR) of 75 dB, the INA111AU effectively suppresses common mode noise, enabling clean signal extraction in noisy environments. It can reliably operate over a wide temperature range from -40°C to 85°C, making it suitable for harsh industrial settings.
The amplifier features a fast slew rate of 17 V/μs to accurately follow swift signal changes without distortion. Despite its high performance, it does not carry specific industrial standards or approvals, thus requiring application-specific validation.
Key technical specifications include 1 channel operation, surface mount type, and compatibility with a broad range of analog signal conditioning needs. This product enhances precision measurement systems in manufacturing, automation, medical instrumentation, and scientific research.
Provides accurate amplification with 1 mV input offset voltage. Operates over a supply voltage range of 6V to 18V. Supports a bandwidth of 2 MHz suitable for high-speed applications. Low power consumption with a supply current of 4.5 mA.
16-pin surface mount SOIC package ensures easy PCB integration. Common Mode Rejection Ratio (CMRR) of 75 dB for noise reduction. Designed for reliable operation from -40°C to 85°C. Slew rate of 17 V/μs supports fast signal changes.
Explore more high-precision Instrumentation Amplifiers and analog semiconductors at EnvMart to enhance your electronic component selection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input offset voltage of this model is 1 mV, which contributes to its accuracy in amplifying low-level signals.
It operates over a supply voltage range of 6V to 18V, making it versatile for various applications.
This instrumentation amplifier supports a bandwidth of 2 MHz, suitable for high-speed applications.
The supply current for this model is 4.5 mA, which helps in energy-efficient operation, especially in battery-powered systems.
The common mode rejection ratio (CMRR) is 75 dB, which aids in reducing noise in signal processing.
It is designed to operate reliably within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
The slew rate of this model is 17 V/μs, allowing it to accurately follow fast signal changes without distortion.
It is packaged in a 16-pin surface mount SOIC package, facilitating easy integration onto PCBs.
This model supports 1 channel operation, making it suitable for various analog signal conditioning needs.
The dimensions are 10.28 mm in length and 2.35 mm in height, which are suitable for compact applications.
It is suitable for industrial, laboratory, medical, and instrumentation applications, enhancing precision measurement systems.
The gain bandwidth product (GBP) of this model is 2 MHz, providing the necessary bandwidth for high-speed signal amplification.
