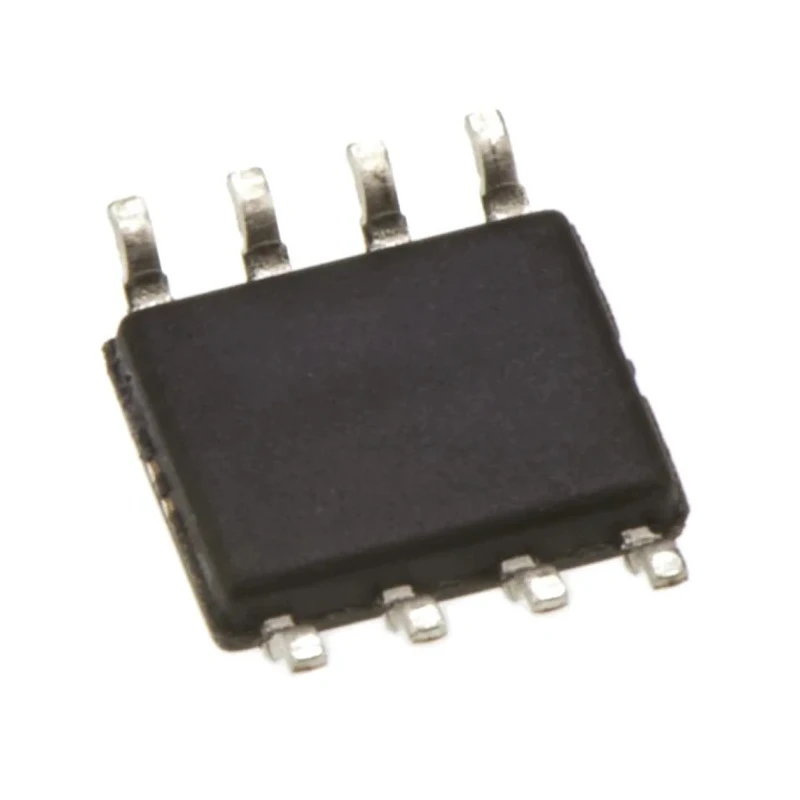

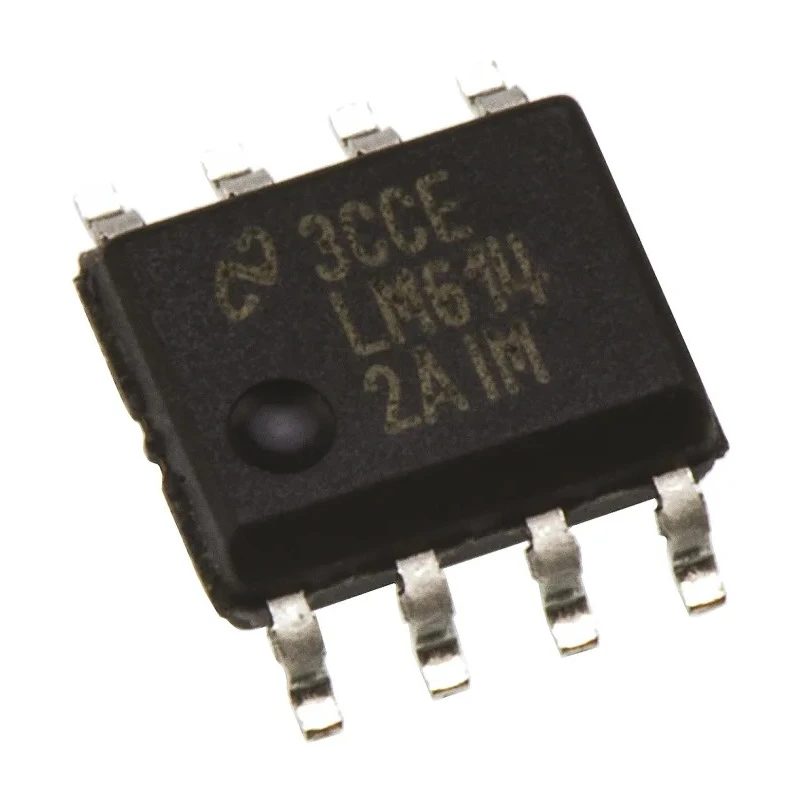

Texas Instruments Instrumentation Amplifier 1 mV Offset 18 MHz 8-Pin SOIC 880 μA LM6142AIM/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.499mm |
| Length | 5mm |
| Model | LM6142AIM/NOPB |
| Mount Type | Surface |
| Series | LM6142 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | EN 61340-5-1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 1.8V |
| Supply Current | 880μA |
| GBP - Gain Bandwidth Product | 18MHz |
| Vos - Input Offset Voltage | 1 mV |
| Slew Rate | 15V/μs |
| CMRR - Common Mode Rejection Ratio | 107dB |
Key Features
- Provides stable 1 mV typical input offset voltage for precise measurements.
- Features 18 MHz gain bandwidth product ensuring high-speed signal amplification.
- Low supply current of 880 μA optimizes power consumption.
- Designed with 8-pin SOIC surface-mount package for reliable PCB integration.
- Supports a wide supply voltage range from 1.8 V to 24 V for versatile applications.
- Maintains 107 dB common mode rejection ratio (CMRR) for improved noise rejection.
- Operates reliably in temperature range from -40°C to 85°C for industrial environments.
- Fast slew rate of 15 V/μs facilitates accurate signal tracking.
Product Description
Texas Instruments LM6142AIM/NOPB is a precision instrumentation amplifier designed for high accuracy and reliable operation in industrial and laboratory applications. Featuring a typical 1 mV input offset voltage, it delivers exceptional signal integrity across a broad bandwidth of 18 MHz.
This 8-pin SOIC package component supports surface mounting with a compact 5 mm length and 1.499 mm height, enabling seamless PCB integration in space-constrained environments. The amplifier operates on supply voltages ranging from 1.8 V minimum up to a maximum of 24 V, catering to diverse power requirements.
With a typical supply current of only 880 μA, the LM6142AIM/NOPB ensures minimal power consumption, ideal for battery-powered and low-power designs. The device features a high common mode rejection ratio of 107 dB, significantly reducing the influence of noise and interference in measurement systems.
It sustains reliable performance over a wide temperature range from -40°C to 85°C, making it suitable for automotive and industrial conditions. The high slew rate of 15 V/μs further enhances its ability to accurately amplify rapidly changing signals.
Typical input offset voltage: 1 mV for precise measurement. Gain bandwidth product of 18 MHz supports high-frequency signals. Low supply current of 880 μA conserves power. Compact surface-mount 8-pin SOIC package with dimensions of 5 mm length and 1.499 mm height.
Wide operating voltage range from 1.8 V to 24 V. High CMRR of 107 dB ensures excellent noise rejection. Operating temperature range -40°C to 85°C for industrial robustness. Slew rate of 15 V/μs for fast signal response.
This instrumentation amplifier is ideal for industrial automation, laboratory instruments, signal conditioning systems, and precision measurement electronics where accurate and stable amplification of low-level signals is critical.
Explore the broad selection of precision amplifiers on EnvMart for high-quality semiconductor components and trusted brands.
Explore more products in our Instrumentation Amplifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The typical input offset voltage of this model is 1 mV, which is designed for precise measurements.
It has a gain bandwidth product of 18 MHz, allowing for high-speed signal amplification.
This unit operates with a supply voltage ranging from 1.8 V to 24 V, making it versatile for various applications.
The typical supply current is 880 μA, optimizing power consumption for low-power designs.
The CMRR for this model is 107 dB, which improves noise rejection in measurement systems.
It operates reliably within a temperature range of -40°C to 85°C, suitable for industrial environments.
This model has a length of 5 mm and a height of 1.499 mm, designed for surface mounting.
This instrumentation amplifier features 2 channels, allowing for differential signal amplification.
The slew rate is 15 V/μs, facilitating accurate signal tracking for rapidly changing signals.
It comes in an 8-pin SOIC surface-mount package, which is suitable for reliable PCB integration.
This model complies with EN 61340-5-1 standards, ensuring it meets certain safety and performance criteria.
It is suitable for industrial automation, laboratory instruments, signal conditioning systems, and precision measurement electronics.
