Texas Instruments Instrumentation Amplifier, , 150 μV Offset, 1 MHz Gain Bandwidth, 8-Pin VSSOP, 200 μA Supply INA826AIDGK

Texas Instruments INA826AIDGK Instrumentation Amplifier is a high precision analog IC designed to amplify differential signals with excellent accuracy and stability. It features a low input offset voltage of 150 μV, enabling reliable operation in sensitive measurement and test equipment.

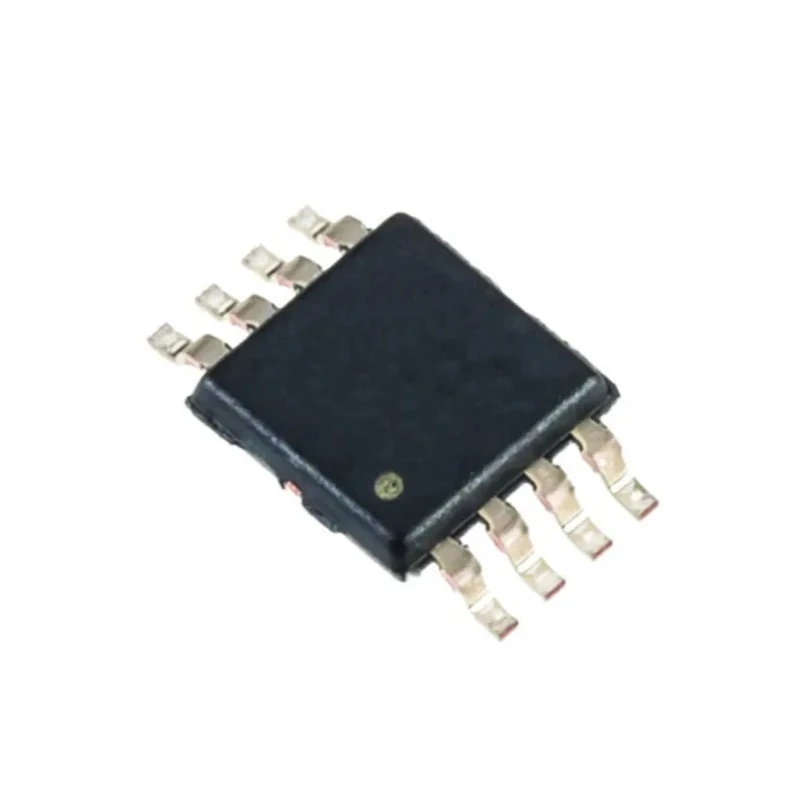

This single-channel amplifier comes in an 8-pin VSSOP surface-mount package, measuring 3.1 mm in length and 0.95 mm in height, ensuring space-efficient PCB integration. It supports supply voltages ranging from 2.7V up to 36V and draws only 200 μA of current, making it ideal for low power and portable applications.

The INA826AIDGK provides a gain bandwidth product of 1 MHz and a high slew rate of 1 V/μs, allowing it to handle fast changing signals while preserving signal integrity. With a high common mode rejection ratio (CMRR) of 80 dB, the amplifier effectively rejects noise and interference commonly found in industrial and laboratory environments.

Designed for robust operation, it works reliably across a wide temperature range from -40°C to 125°C, catering to demanding industrial and automotive applications. The absence of specific standards or automotive certifications makes it suitable for general precision measurement, industrial controls, and instrumentation tasks.

This product is well-suited for industrial automation, instrumentation, medical equipment, and laboratory electronics where precise differential signal amplification is critical. Its small form factor and low power consumption also support portable electronic instruments and sensor interfaces.

Low input offset voltage of 150 μV ensures precision measurement. Wide supply voltage range (2.7V to 36V) supports diverse applications. Compact 8-pin VSSOP package enables efficient PCB layout. High common mode rejection of 80 dB minimizes noise effects.

Wide operating temperature range suits harsh environments. Low 200 μA supply current promotes energy efficiency. Gain bandwidth of 1 MHz supports fast signal processing. Slew rate of 1 V/μs optimizes transient response. Explore more Instrumentation Amplifiers and semiconductor solutions at EnvMart for your electronic design and manufacturing needs.
