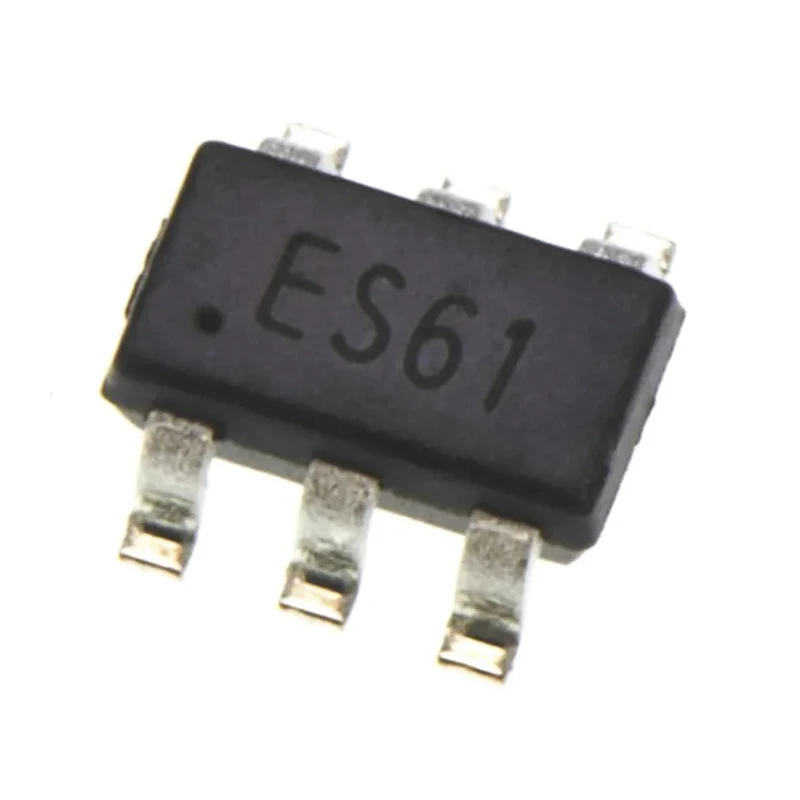

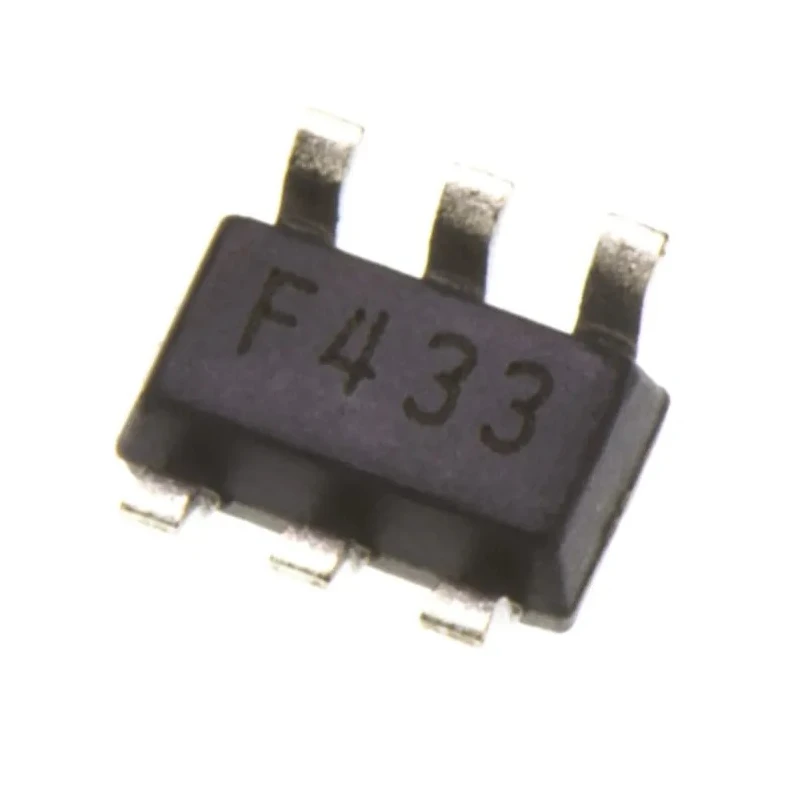

STMicroelectronics 4-Element Uni-Directional TVS Diode, 400 W, 6-Pin SOT-23 ESDA6V1SC6
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3.05mm |
| Model | ESDA6V1SC6 |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | ESDAxxSCx |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Number of Elements per Chip | 4 |
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.1V |
| Maximum Reverse Stand-off Voltage Vwm | 5.2V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 18A |
| Maximum Reverse Leakage Current | 20μA |
Key Features
- Uni-directional TVS diode provides effective electrostatic discharge protection.
- Features four elements per chip in a compact SOT-23 surface mount package.
- Maximum peak pulse power dissipation of 400 W ensures strong surge tolerance.
- Operates with a minimum breakdown voltage of 6.1 V and stand-off voltage of 5.2 V.
- Capable of handling peak pulse currents up to 18 A for transient events.
- Suitable for circuit protection in sensitive applications requiring reliable ESD immunity.
- Wide operating temperature range from -40°C to 125°C.
Product Description
STMicroelectronics ESDA6V1SC6 is a uni-directional transient voltage suppressor (TVS) diode designed for effective circuit protection against electrostatic discharge and fast transient events. This device integrates four elements per chip in a compact SOT-23 surface mount package, making it highly suitable for space-constrained applications on printed circuit boards and electronic devices.
With a peak pulse power dissipation of up to 400 W and a maximum peak pulse current of 18 A, the ESDA6V1SC6 offers solid performance in suppressing voltage spikes and surges. The minimum breakdown voltage is 6.1 V, while the maximum reverse stand-off voltage is 5.2 V, enabling robust protection without impacting normal circuit operations.
This TVS diode operates reliably over a wide temperature range, from -40°C to 125°C, allowing for safe deployment in environments subject to temperature extremes. The surface mount configuration supports rapid production and efficient integration into automated manufacturing lines.
ESDA6V1SC6 provides common anode configuration, helping to simplify circuit design and facilitate signal integrity across sensitive tracks. ESD protection is built-in, meeting demanding standards for electronic assemblies where static discharge is a critical concern.
Typical use cases include protection of data lines, interfaces, and power rails in consumer electronics, industrial controllers, automotive electronics, and communication devices. This diode is particularly effective in applications requiring reliable ESD immunity and transient protection for board-level components.
Uni-directional TVS diode provides effective electrostatic discharge protection. Features four elements per chip in a compact SOT-23 surface mount package. Maximum peak pulse power dissipation of 400 W ensures strong surge tolerance.
Operates with a minimum breakdown voltage of 6.1 V and stand-off voltage of 5.2 V. Capable of handling peak pulse currents up to 18 A for transient events. Suitable for circuit protection in sensitive applications requiring reliable ESD immunity.
Wide operating temperature range from -40°C to 125°C. Explore more TVS Diode solutions and advanced transient protection products from STMicroelectronics in the EnvMart Electronics & Electricals catalog.
