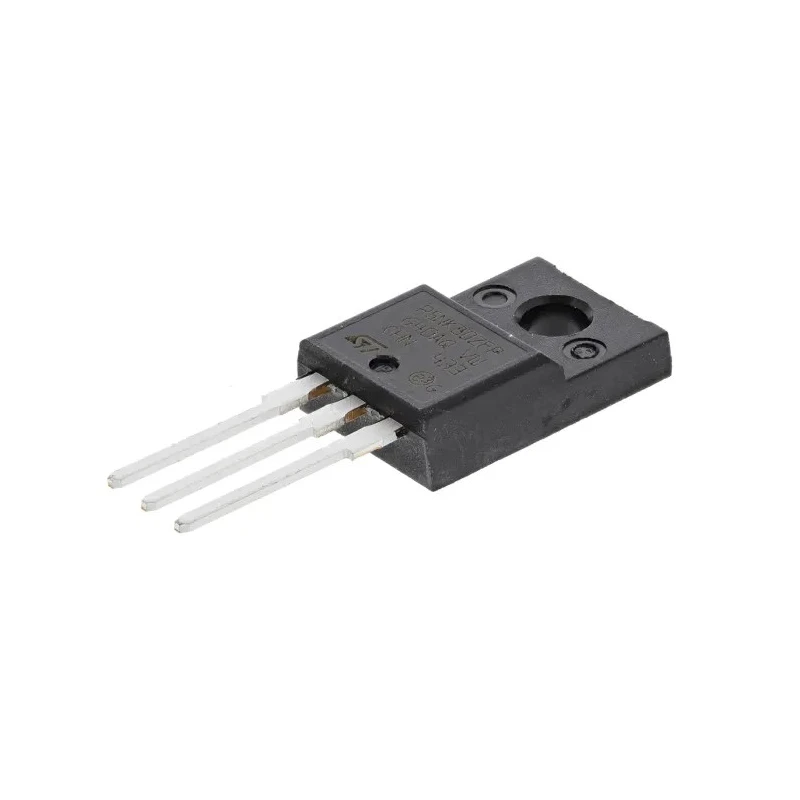

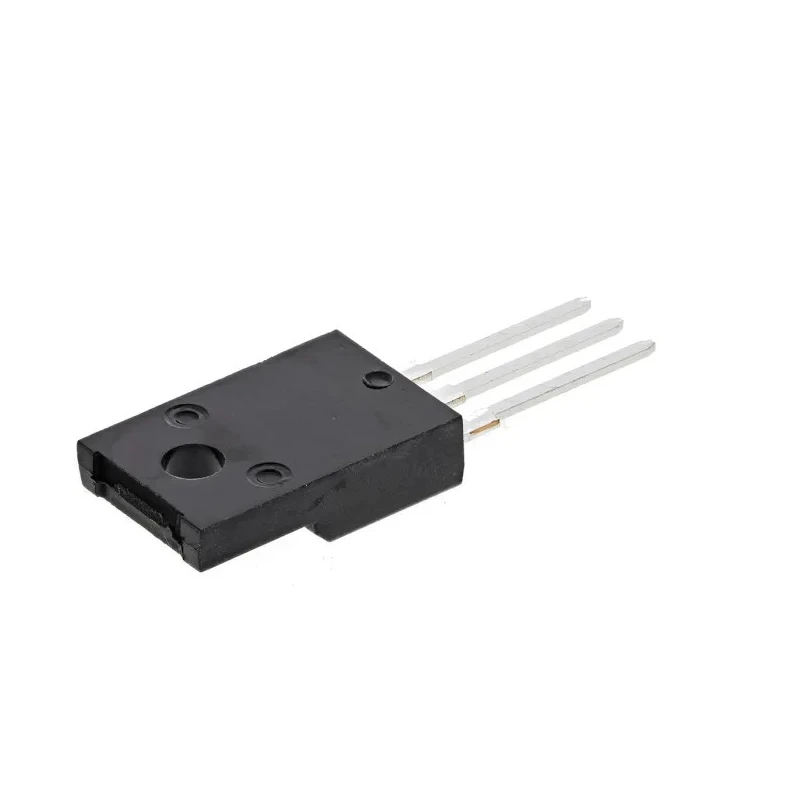

STMicroelectronics MDmesh SuperMESH N-Channel MOSFET 800 V, 4.3 A, 30 W, Enhancement Mode, TO-220 Package STP5NK80ZFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | STP5NK80ZFP |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | MDmesh, SuperMESH |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 4.3A |
| Maximum Drain Source Voltage Vds | 800V |
| Maximum Drain Source Resistance Rds | 2.4Ω |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 30W |
| Typical Gate Charge Qg @ Vgs | 32.4nC |
| Maximum Gate Source Voltage Vgs | -30, +30V |
| Forward Voltage Vf | 1.6V |
Key Features
- Enhancement mode N-Channel device suitable for high voltage switching applications.
- TO-220 through-hole package provides easy mounting and reliable mechanical support.
- Maximum continuous drain current of 4.3 amperes ensures effective power handling.
- Maximum drain-source voltage of 800 volts allows for high-voltage operation.
- Low on-resistance of 2.4 ohms minimizes conduction losses.
- High maximum power dissipation of 30 watts ensures thermal reliability.
- Operating temperature range from -55°C up to 150°C for wide environmental adaptability.
- Typical gate charge of 32.4 nanocoulombs for efficient switching performance.
Product Description
The STMicroelectronics STP5NK80ZFP is a high-performance MDmesh SuperMESH N-Channel MOSFET designed for industrial and electronic applications requiring efficient high-voltage switching capability. Featuring an 800 V maximum drain-source voltage and a continuous drain current of 4.3 A, this device operates in enhancement mode to provide reliable and robust switching.
Housed in a 3-pin TO-220 through-hole package, the MOSFET offers ease of mounting and superior mechanical durability. Its low drain-source resistance of 2.4 ohms reduces conduction losses, enhancing overall circuit efficiency.
The device supports a maximum power dissipation of 30 W, enabling it to maintain performance under demanding thermal conditions. Its operating temperature range from -55°C to 150°C ensures suitability for various industrial environments, including automotive and power management systems.
This MOSFET features a typical gate charge of 32.4 nC facilitating rapid switching, while the gate-source voltage limits of -30 V to +30 V protect it from voltage transients during operation. The forward voltage drop of 1.6 V makes it effective for power conversion applications.
Applications include power supplies, motor drives, lighting controls, and other electronic devices requiring high voltage and efficient conduction with compact packaging. Enhancement mode N-Channel transistor with MDmesh SuperMESH design.
High voltage rating suitable for industrial power systems. Enhanced thermal performance with 30 W dissipation capability. Suitable for through-hole mounting on PCB. Robust gate voltage tolerance and stable switching parameters.
Ideal for use in power switching, motor control, and electronic converters.
STMicroelectronics products are well-known for quality and performance in semiconductor components, ensuring consistency and reliability for demanding electrical and electronic applications. Explore more semiconductor and MOSFET options in EnvMart's Electronics & Electricals category for comprehensive selection.
