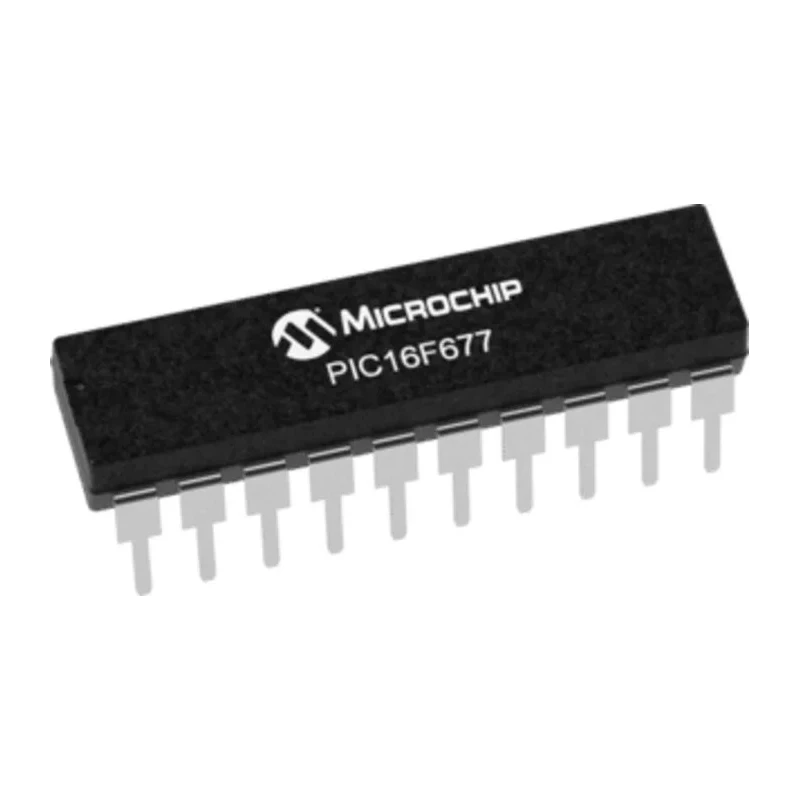

Microchip 8-bit PIC Microcontroller 20 MHz 3.5kB FLASH 20-Pin PDIP PIC16F677-I/P

Microchip PIC16F677-I/P is an 8-bit PIC microcontroller designed with Microchip’s well-known PIC architecture for embedded system applications. It offers a maximum clock speed of 20 MHz and 3.5kB of non-volatile FLASH program memory, housed in a 20-pin PDIP package suitable for through-hole mounting.

This microcontroller features a data bus width of 8-bit and supports up to 25 programmable digital I/O pins, providing system designers significant flexibility for multiple interface requirements. It includes 12 channels of 10-bit analog-to-digital converters (ADC) and 2 analog comparators for precision signal processing in sensing and control applications.

Operating voltage ranges from a minimum of 2V up to 5.5V, powering embedded devices with low power consumption and a maximum power dissipation of 800 mW. The device works reliably within a temperature range of -40°C to 85°C, suitable for a variety of industrial and commercial environments.

Additional peripherals include two timers, watchdog timer for safety, and an in-circuit serial programming (ICSP) interface which facilitates firmware updates without device removal. Manufactured with a RISC instruction set architecture, the PIC16F677-I/P MCU supports efficient code execution over its 35 instructions and an 8-level hardware stack.

The dimensions of the package are 26.92 mm in length, 7.11 mm in width, and 4.95 mm in height, making it suitable for compact PCB designs requiring through-hole components.

This microcontroller is excellent for use in industrial automation, consumer electronics, instrumentation, and other embedded control applications that benefit from a mid-range MCU with diverse peripheral integration.

Built on PIC architecture with 8-bit data bus width. Program memory size of 3.5kB using FLASH technology. Operates at voltage range from 2V to 5.5V with a maximum power dissipation of 800mW. Features 25 programmable I/Os and 12-channel 10-bit ADC.

Includes 2 analog comparators and 2 timers for enhanced functionality. Suitable for operating temperature range from -40°C to 85°C. Package dimensions: Length 26.92 mm, Width 7.11 mm, Height 4.95 mm. Through-hole mount type for robust PCB integration.

RISC instruction set architecture with 35 instructions and an 8-level hardware stack. Ideal for embedded applications requiring mid-range CPU performance and flexible peripheral integration. Discover a wide range of Microcontrollers and electronic components at EnvMart for your diverse industrial, commercial, and academic projects.
