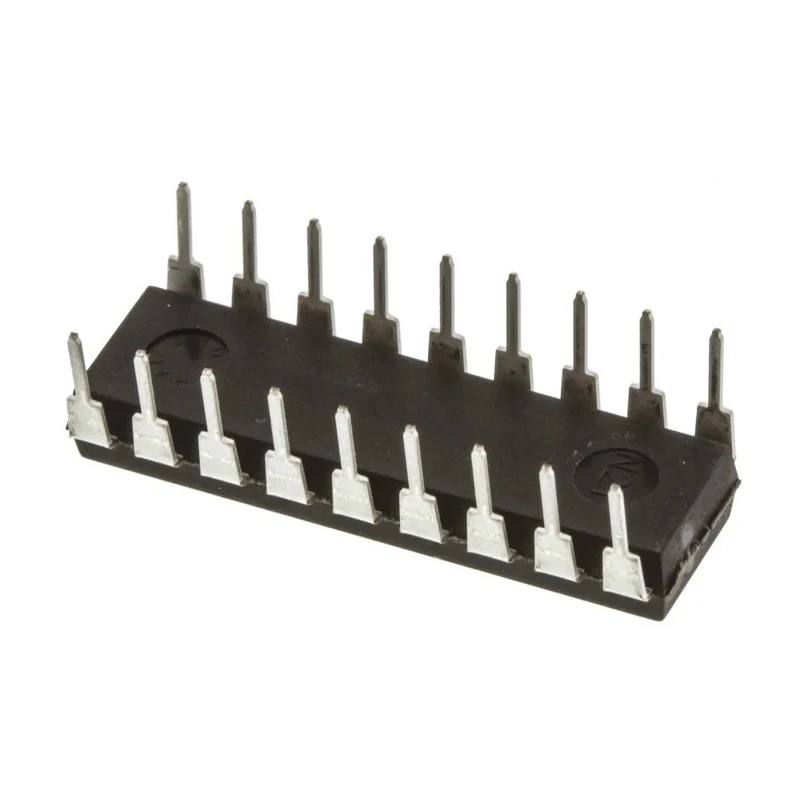

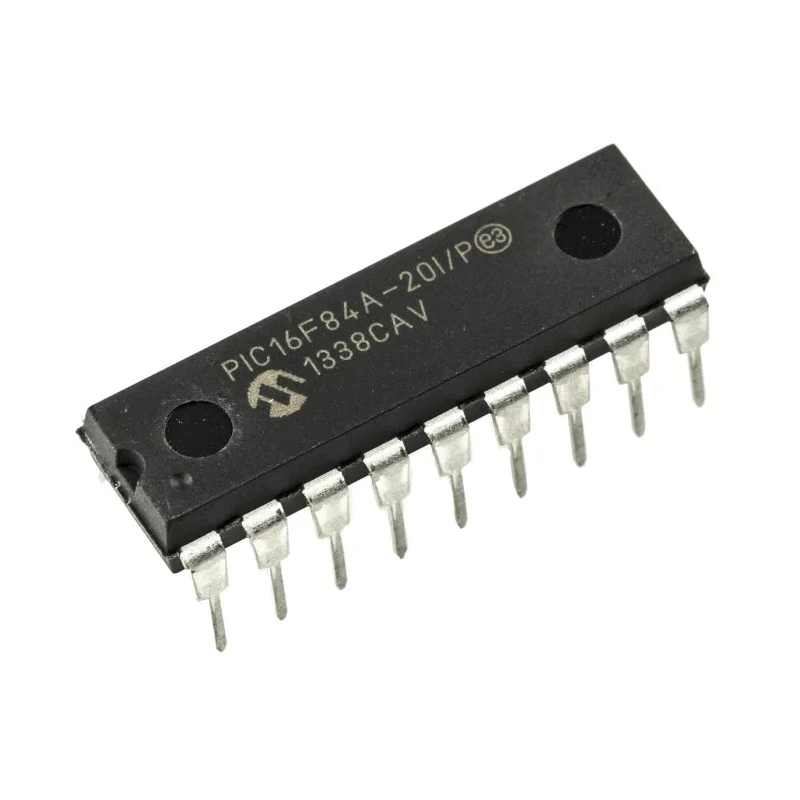

Microchip 8-Bit PIC Microcontroller 20 MHz, 1kB FLASH, 18-Pin PDIP PIC16F84A

Microchip PIC16F84A is an 8-bit microcontroller featuring a 20 MHz maximum clock frequency and 1kB FLASH program memory. It is built on Microchip's acclaimed Mid-range core architecture, delivering up to 5 MIPS with a 35-instruction set and 8-level deep hardware stack, ideal for embedded system designs.

This model includes 13 programmable I/O pins for diverse applications, alongside 68 bytes of RAM and 64 bytes of EEPROM memory enabling efficient data management. It operates over a wide supply voltage range (2 V to 6 V) with a maximum power dissipation of 800 mW, ensuring robustness in various operating conditions.

Additional core features include an 8-bit timer and watchdog timer for timing operations and system reliability, as well as power-on reset, brown-out reset, power-up timer, and oscillator start-up timer safeguards.

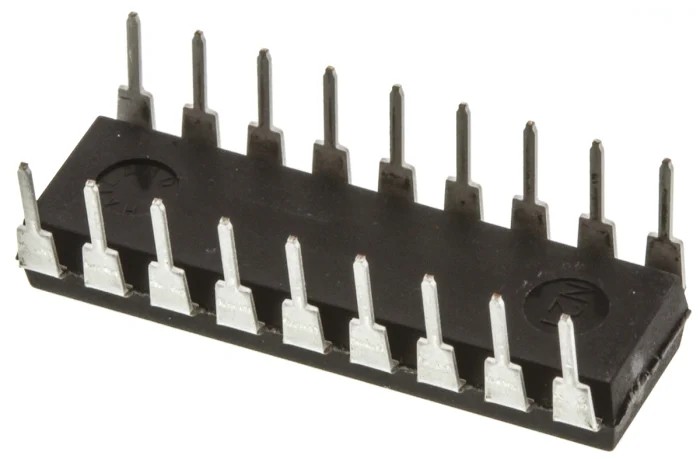

The device is housed in an 18-pin PDIP through-hole package with compact dimensions of 22.99 mm length, 6.6 mm width, and 3.68 mm height, supporting easy integration into printed circuit boards.

Operating temperature spans from -40°C to 85°C, making it suitable for industrial, automotive, and general embedded applications. The Microchip PIC16F84A supports in-circuit serial programming (ICSP), enabling efficient programming and debugging.

This microcontroller is RoHS compliant and meets environmental standards, making it suitable for green manufacturing processes.

Microchip’s PIC16F84A microcontroller is widely used in electronics manufacturing, embedded systems design, control systems, and educational prototypes, offering a reliable and versatile platform.

Explore more microcontrollers and semiconductor components within the Electronics & Electricals category on EnvMart for your design and manufacturing needs. Incorporates Microchip's Mid-range PIC architecture with 35 instructions.

Features 13 programmable I/O pins for versatile interfacing. Operates with a minimum supply voltage of 2 V and maximum of 6 V. Equipped with 68 bytes of RAM and 64 bytes EEPROM for data storage. Provides a hardware stack depth of 8 levels supporting 5 MIPS performance.

Includes integrated peripherals such as one 8-bit timer and Watchdog timer. Ensures reliable operation with Power-On Reset, Brown-Out Reset, and Oscillator Start-Up Timer. Suitable for through-hole mounting with an 18-pin PDIP package dimensioned 22.99 x 6.6 x 3.68 mm.

Designed to operate within temperature range from -40°C to 85°C. Supports in-circuit serial programming (ICSP) for easy development updates. Browse the Microcontroller category on EnvMart for comprehensive semiconductor solutions.
