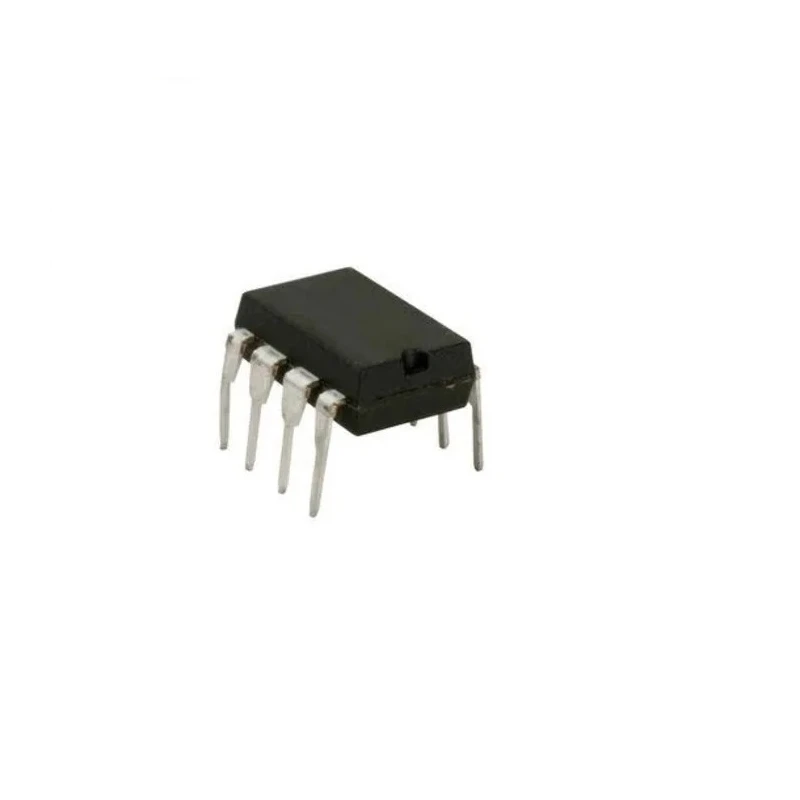

Microchip 8-bit PIC Microcontroller 20 MHz, 1.75kB FLASH, 8-Pin DIP PIC12F629-E/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.98mm |
| Length | 5.33mm |
| Model | PIC12F629-E/P |
| Width | 6.35mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 64bit |
| Interface Type | GPIO |
| Standards/Approvals | RoHS Compliant |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 1.75kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 6 |
| Analogue Comparators | 1 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 10 bit |
| Program Memory Type | FLASH |
Key Features
- Operates over a wide voltage range from 2.5 V to 5.5 V ensuring versatile use.
- Features 1.75kB of programmable FLASH memory for efficient code storage.
- Equipped with 64-bit RAM and 6 programmable I/O pins for interfacing flexibility.
- Includes 10-bit ADC for precise analogue signal processing.
- Supports 20 MHz maximum clock frequency delivering fast instruction execution.
- Compliant with RoHS standards for environmental safety.
- Wide operating temperature range from -40°C to 85°C suitable for industrial environments.
- Utilizes RISC instruction set architecture with only 35 instructions for ease of programming.
Product Description
Microchip PIC12F629-E/P is a compact 8-bit CMOS microcontroller designed for embedded system applications, featuring a 20 MHz maximum clock frequency and 1.75kB FLASH program memory. It is housed in a standard 8-pin DIP package, making it compatible with various PCBs and designs.
Operating across a wide supply voltage range of 2.5 V to 5.5 V, this microcontroller provides flexibility for low power and high performance environments. It includes a 64-bit RAM for data storage and 6 programmable I/O pins with individual direction control and high current sink/source capability, ideal for direct LED driving and control applications.
Built with a RISC instruction set architecture, it simplifies programming with only 35 single-cycle instructions except branches, ensuring efficient processing. It incorporates peripherals such as a 10-bit ADC for analogue-to-digital conversion, a single analogue comparator, one timer, and a watchdog timer with an independent oscillator to enhance system reliability.
The device supports power saving sleep mode, brown-out detection, and includes power-up and oscillator start-up timers for stable operation after power interruptions. Programmable code protection enhances security against unauthorized access to software.
Wide operating voltage range from 2.5 V to 5.5 V for flexible power options. 16-level hardware stack depth supports nested function calls and interrupts. 6 programmable I/O pins with high current capabilities for flexible interfacing.
Low power consumption modes for energy-efficient designs. Brown-out detection and power-on reset ensure stable startup.
This microcontroller is ideal for industrial automation, consumer electronics, measurement instruments, and automotive applications requiring reliable and compact MCU solutions. The device complies with RoHS environmental standards exemplifying responsible manufacturing.
Explore the full range of Microchip Microcontrollers at EnvMart to find solutions tailored to your embedded system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz, allowing for fast instruction execution.
It operates over a wide voltage range from 2.5 V to 5.5 V, providing flexibility for various applications.
This microcontroller features 1.75 kB of programmable FLASH memory for efficient code storage.
The dimensions of this model are 5.33 mm in length, 6.35 mm in width, and 1.98 mm in height.
It includes 6 programmable I/O pins, which allow for flexible interfacing options.
This model utilizes a RISC instruction set architecture, simplifying programming with only 35 instructions.
Yes, it includes a 10-bit ADC for precise analogue signal processing.
The maximum operating temperature for the PIC12F629-E/P is 85°C, making it suitable for industrial environments.
Yes, it is compliant with RoHS standards, ensuring responsible manufacturing practices.
This model includes one timer, which can be used for various timing applications.
The microcontroller has a 64-bit RAM size for data storage purposes.
It comes in a standard 8-pin DIP package, making it compatible with various PCBs and designs.
