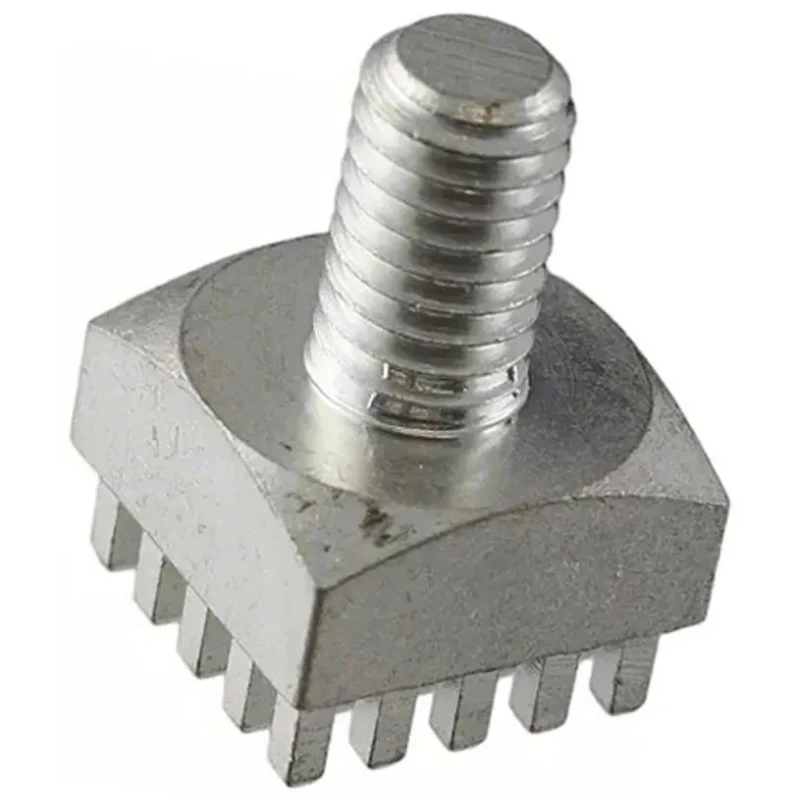

Wurth Elektronik Brass Screw Terminal Vertical 250A M6 REDCUBE Series 7461098

Wurth Elektronik 7461098 Brass Screw Terminal Vertical 250A is a powerful and reliable component engineered for efficient high-current transfer applications on printed circuit boards (PCBs). This screw terminal belongs to the REDCUBE power elements series, providing up to 250 amperes of current capacity supported by its robust brass body with tin plating.

The vertical orientation with a pitch of 2.54mm, 25 legs, and 5 rows make this terminal suitable for complex circuit board layouts. The M6 screw size further assures secure fastening and excellent electrical connectivity. A key innovation in this product is its press-fit technology, which produces a secure gas-tight connection to the PCB. This press-fit mounting eliminates the need for soldering, reducing thermal stress on the circuit board and enhancing vibration and shock resistance.

Manufactured under stringent standards including RoHS, DIN EN 61760-2, DIN ISO 2768-1m, and DIN 76-1:2016-08, the 7461098 terminal is ideal for industrial and commercial electronic applications. Its rugged construction makes it suitable for use in power supplies, converters, battery systems, and sectors such as medical, automotive, industrial, agricultural, wind, and solar energy systems.

This screw terminal power element can be seamlessly integrated into automated production lines employing simple press-fit tooling, ensuring cost-effective and high reliability in high current PCB applications.

The terminal supports a maximum current of 250A for efficient power transmission. Constructed from brass with tin plating for durability and corrosion resistance. Features vertical orientation with 25 legs and 5 rows for versatile PCB integration.

Includes M6 screw size and snap-in design allowing secure fixation on the PCB. Employs REDCUBE series technology with press-fit mounting for gas-tight electrical connections. Meets RoHS compliance and multiple DIN standards ensuring high quality and safety.

Eliminates need of soldering, making the installation process faster and more reliable. Explore more Wurth Elektronik Screw Terminals and connectors on EnvMart for reliable electronic components designed to meet rigorous industrial demands.
