Vishay 60 V 5 A Surface Mount Schottky Barrier Rectifier 3-Pin TO-277A SS5P6-M3/86A

Free Delivery in India | Lowest Global Shipping Charges

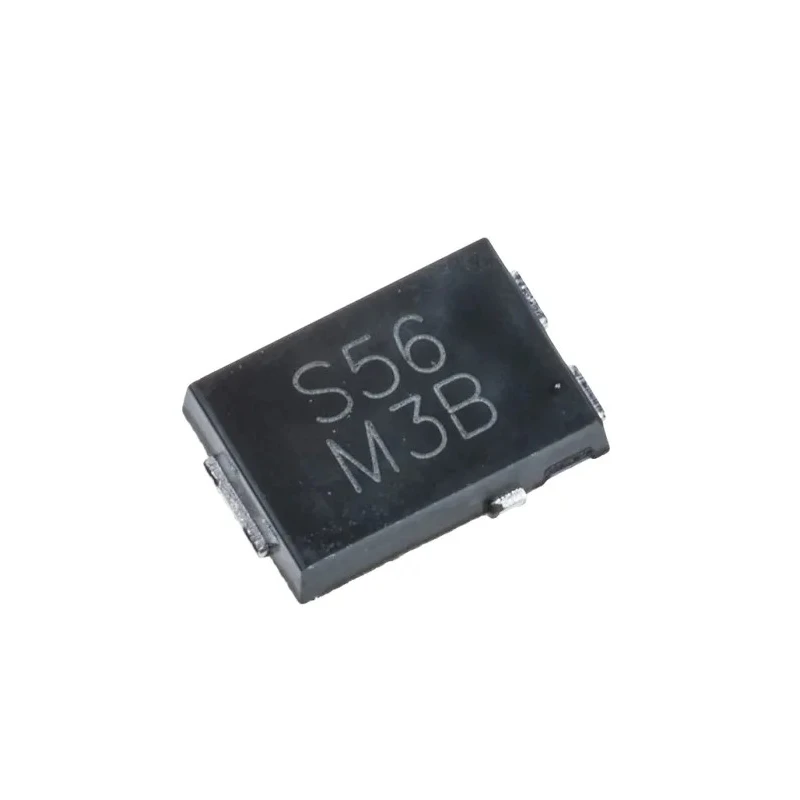

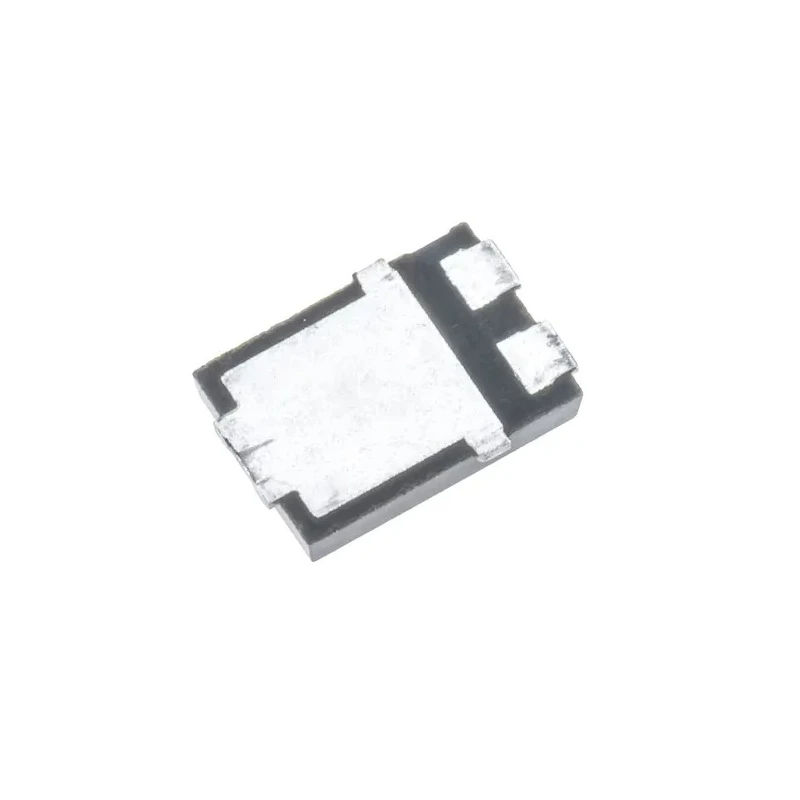

Vishay 60 V 5 A Surface Mount Schottky Barrier Rectifier 3-Pin TO-277A SS5P6-M3/86A

Name: Vishay 60 V 5 A Surface Mount Schottky Barrier Rectifier 3-Pin TO-277A SS5P6-M3/86A
Brand: Vishay
SKU: 218075



Category Semiconductor Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1.2mm
Length	4.35mm
Model	SS5P6-M3/86A
Width	6.15mm
Mount Type	Surface
Series	eSMP
Maximum Operating Temperature	150°C
Package Type	TO-277A
Minimum Operating Temperature	-55°C
Standards/Approvals	J-STD-020, J-STD-002, JESD 22-B102, JESD 201 Class 2, AEC-Q101, UL 94 V-0, RoHS
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	5A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	150μA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	690mV

Key Features

Features a maximum continuous forward current of 5 A.
Supports peak reverse repetitive voltage of 60 V.
Single diode configuration with 3-pin TO-277A package type.
Maximum forward voltage of 690 mV ensures low power loss.
Operates reliably between -55°C to 150°C temperature range.
Complies with automotive standard AEC-Q101 and multiple industrial certifications including RoHS.
Compact dimensions with 6.15 mm width, 4.35 mm length, and 1.2 mm height.
Supports peak non-repetitive forward surge current up to 150 A.

Product Description

Vishay SS5P6-M3/86A is a high-performance surface mount Schottky barrier rectifier featuring a compact 3-pin TO-277A package. Rated for 60 V peak reverse voltage and 5 A continuous forward current, it is ideal for electronic applications requiring fast switching with minimal forward voltage drop.

This Schottky diode ensures efficient operation due to its low forward voltage of 690 mV and fast reverse recovery, minimizing power loss in circuits. It operates across a wide temperature range from -55°C up to 150°C, making it suitable for industrial and automotive use cases.

Certified to standards including AEC-Q101 automotive qualification, J-STD-020, and RoHS compliance, this rectifier meets stringent reliability and safety requirements. Its dimensions of 6.15 mm width, 4.35 mm length, and 1.2 mm height allow integration into compact semiconductor assemblies.

The device supports a peak non-repetitive forward surge current of 150 A, providing robustness for transient voltage spikes. Its single diode configuration and 3-pin layout facilitate easy PCB mounting in surface mount designs.

Maximum continuous forward current: 5 A. Peak reverse repetitive voltage: 60 V. Forward voltage drop: 690 mV. Operating temperature range: -55°C to 150°C. Compliance with automotive and industrial standards, including AEC-Q101 and RoHS.

Compact TO-277A surface mount package. Peak surge current up to 150 A. Single Schottky diode configuration with 3 pins.

This Vishay Schottky Barrier Rectifier is suitable for electronic components manufacturing, power supply systems, automotive electronics, and Semiconductor discrete device applications. Its robust electrical characteristics and certified reliability make it a dependable choice for engineers and designers in high-speed switching and low loss rectification.

Explore further electronic components and Schottky diode options in the EnvMart catalog for diverse industrial and commercial applications.
