ROHM General Purpose Diode 750 V 1 A 2-Pin SOD-128 Surface Mount RR1LAM6STR

ROHM RR1LAM6STR General Purpose Diode is designed for electronic and industrial applications requiring efficient rectification with reliable performance. Featuring a peak reverse voltage of 750 V and continuous forward current of 1 A, it is well-suited for power conversion, protection circuits, and signal rectification in semiconductor and discrete electronics assemblies.

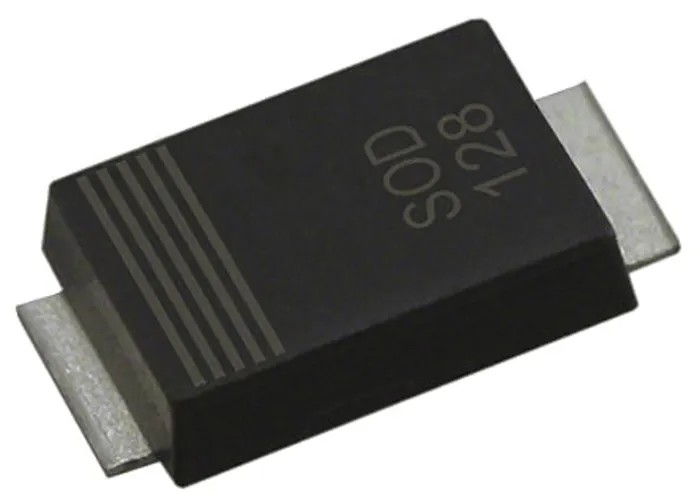

This diode comes in a surface mount package type SOD-128, measuring 3.7 mm in length, 2.5 mm in width, and 0.95 mm in height, making it compatible with compact printed circuit board designs and automated assembly processes.

The device operates robustly within a temperature range from -55°C to 150°C, making it applicable in automotive electronics, industrial control systems, and consumer electronic devices requiring thermal endurance.

Key technical features include a low forward voltage drop of 1.1 V enhancing energy efficiency and a peak non-repetitive forward surge current rating of 30 A to handle transient electrical stresses.

This diode features a single diode configuration ideal for general purpose rectification applications. Pin count of 2 supports straightforward circuit mounting and design simplicity. Complies with RoHS regulations, ensuring environmentally responsible manufacturing.

Compact SOD-128 package streamlines integration into dense electronic assemblies. High voltage and current ratings provide robust operational capability under demanding workloads. Low leakage current with peak reverse current of 10 mA to maintain circuit integrity.

Wide operating temperature range supports diverse industrial and commercial usage scenarios. Commonly utilized in industrial, automotive, power supply, and electronic instrumentation sectors. Explore more Semiconductor and diode products from ROHM in the Electronics & Electricals category on EnvMart.
