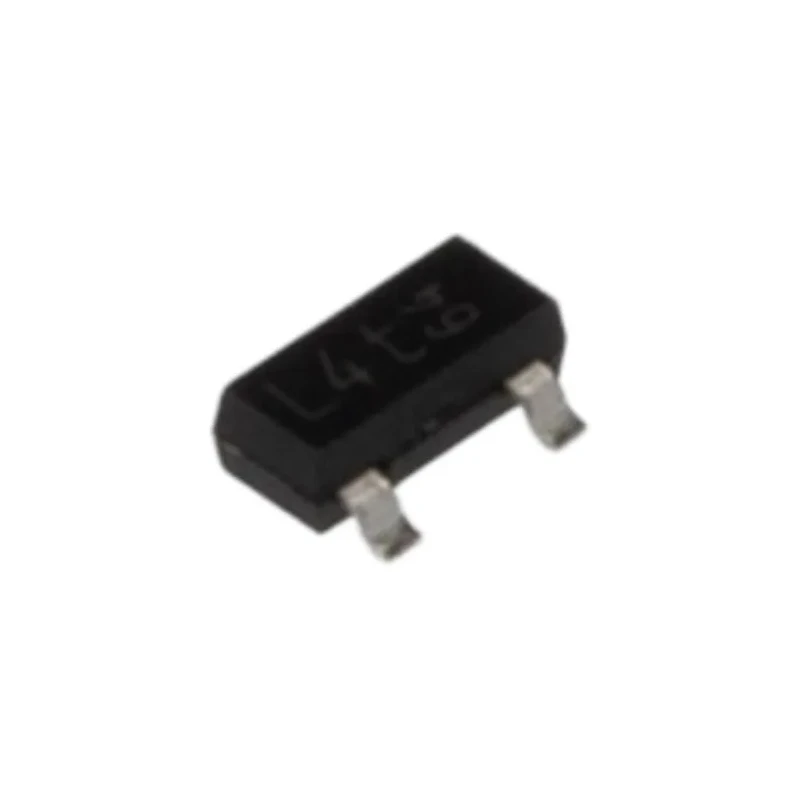

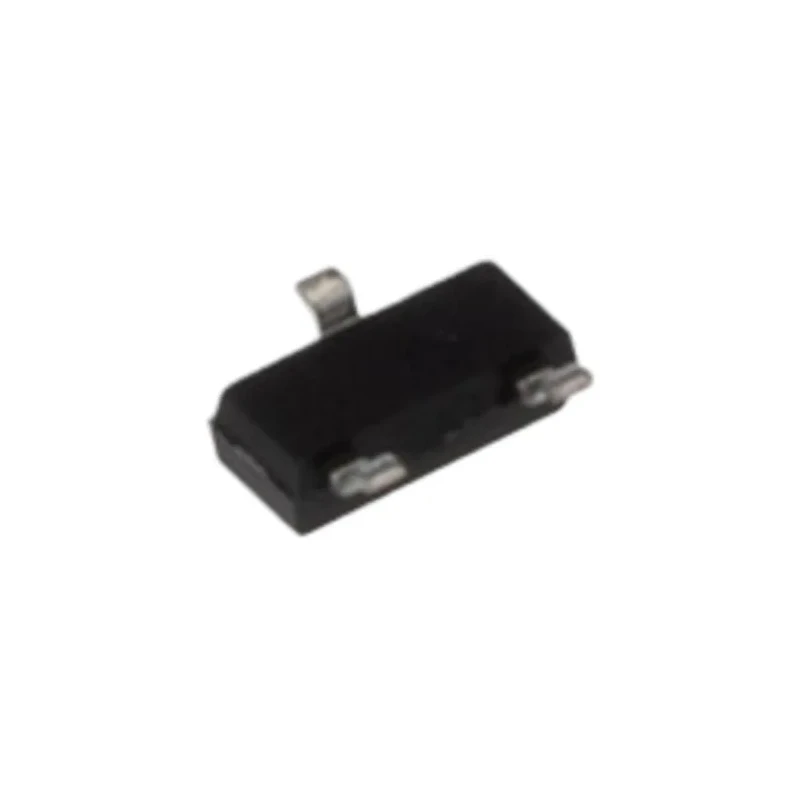

Nexperia 30 V 200 mA Schottky Diode 3-Pin SOT-23 BAT54,215

The Nexperia BAT54,215 is a high-efficiency Schottky diode designed for use in compact and low-profile applications. Packaged in a 3-pin SOT-23 surface-mount form factor, the diode offers a maximum continuous forward current of 200 mA with a peak reverse repetitive voltage of 30 volts, making it suitable for a variety of low voltage electronic circuits.

This diode exhibits a low forward voltage drop of 800 mV, which helps reduce power losses and improve overall circuit efficiency. The fast peak reverse recovery time of 5 nanoseconds supports its performance in switching and rectifier applications where rapid response times are critical.

Engineered to withstand operating temperatures ranging from -65°C to 125°C, the BAT54,215 diode is robust for industrial, automotive, and consumer electronics use. Its compliance with the automotive AEC-Q101 standard further assures its suitability for automotive electronic circuits requiring stringent quality standards.

Measuring only 3 mm in length, 1.4 mm in width, and 1 mm in height, this diode optimizes board space, enabling designers to implement compact and efficient layouts.

Ideal for use in rectification, freewheeling, and protection applications, the BAT54,215 is an excellent choice for engineers looking for reliable and efficient discrete semiconductor devices.

This diode features a maximum continuous forward current of 200 mA. Peak reverse repetitive voltage is rated at 30 V, suitable for low voltage applications. Compact SOT-23 surface-mount package dimensions: 3 mm length, 1.4 mm width, and 1 mm height.

Low forward voltage drop of 800 mV ensures minimal power loss during operation. Fast reverse recovery time of 5 nanoseconds supports high-speed switching. Designed to operate efficiently across a temperature range from -65°C to 125°C.

Complies with automotive standard AEC-Q101, ensuring reliable performance in automotive electronics.
