IXYS 300 V 30 A General Purpose Diode 4-Pin SOT-227 DSEP2x31-03A

Free Delivery in India | Lowest Global Shipping Charges

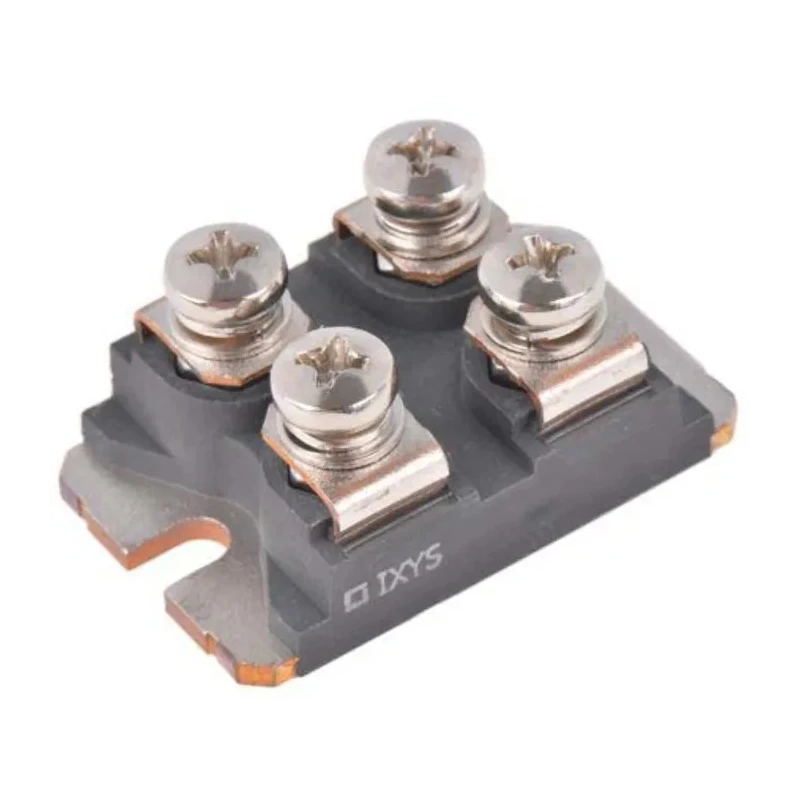

IXYS 300 V 30 A General Purpose Diode 4-Pin SOT-227 DSEP2x31-03A

Name: IXYS 300 V 30 A General Purpose Diode 4-Pin SOT-227 DSEP2x31-03A
Brand: IXYS
SKU: 204020
Price: 41.27 USD
Availability: InStock



Category Semiconductor Brand IXYS Condition New

Specifications

Country of Origin	India
Brand	IXYS
Height	12.22mm
Length	38.23mm
Model	DSEP2x31-03A
Width	25.25mm
Mount Type	Panel
Series	DSEP2x31
Maximum Operating Temperature	125°C
Package Type	SOT-227
Minimum Operating Temperature	-40°C
Pin Count	4
Maximum Continuous Forward Current If	30A
Peak Reverse Repetitive Voltage Vrrm	300V
Diode Configuration	Isolated
Rectifier Type	General Purpose
Peak Reverse Current Ir	12.5A
Peak Non-Repetitive Forward Surge Current Ifsm	300A
Maximum Forward Voltage Vf	1.4V

Key Features

Offers isolated diode configuration in a panel mount type.
Features fast recovery epitaxial diode technology for improved switching efficiency.
Supports high surge current of up to 300 A non-repetitive peak forward.
Maximum forward voltage is 1.4 V ensuring efficient power handling.
Designed for operating temperature from -40°C to 125°C.
Compact dimensions measuring 38.23 mm length, 25.25 mm width, and 12.22 mm height.
4-pin configuration suitable for discrete semiconductor applications.
Compatible with various industrial, power electronics, and electronic component assemblies.

Product Description

The IXYS DSEP2x31-03A is a 300 V, 30 A general purpose diode housed in a 4-pin SOT-227 package, specifically designed for high reliability and efficient switching in industrial and electronic applications.

This diode module incorporates isolated fast recovery epitaxial diode (FRED) technology, allowing minimal reverse recovery currents which significantly reduce power losses and enhance switching performance.

Featuring a maximum continuous forward current of 30 A and peak non-repetitive forward surge current capability of 300 A, it is ideal for use in power supplies, converters, and various discrete semiconductor applications requiring robust diode performance.

Its compact panel mount design with dimensions of 38.23 mm length, 25.25 mm width, and 12.22 mm height facilitates easy integration in industrial electronic assemblies where space and thermal management are critical.

The device operates reliably over a temperature range from -40°C up to 125°C, suitable for harsh environmental conditions encountered in manufacturing, HVAC, laboratory equipment, and general industrial electronics.

This diode does not meet automotive standards but is valuable in a broad range of power switching and rectification roles beyond automotive domains. Isolated diode configuration optimizes electrical insulation and simplifies mounting.

Fast recovery behavior reduces electromagnetic interference and radio frequency interference issues. Robust construction ensures avalanche voltage rating for reliable operation under transient conditions. Low leakage current enhances efficiency for power management applications.

Suitable for engineers and technicians designing semiconductor-based power electronics systems who require durable and high-performance diodes in a reliable package format. Explore EnvMart for more power Semiconductor solutions from IXYS and related advanced components.
