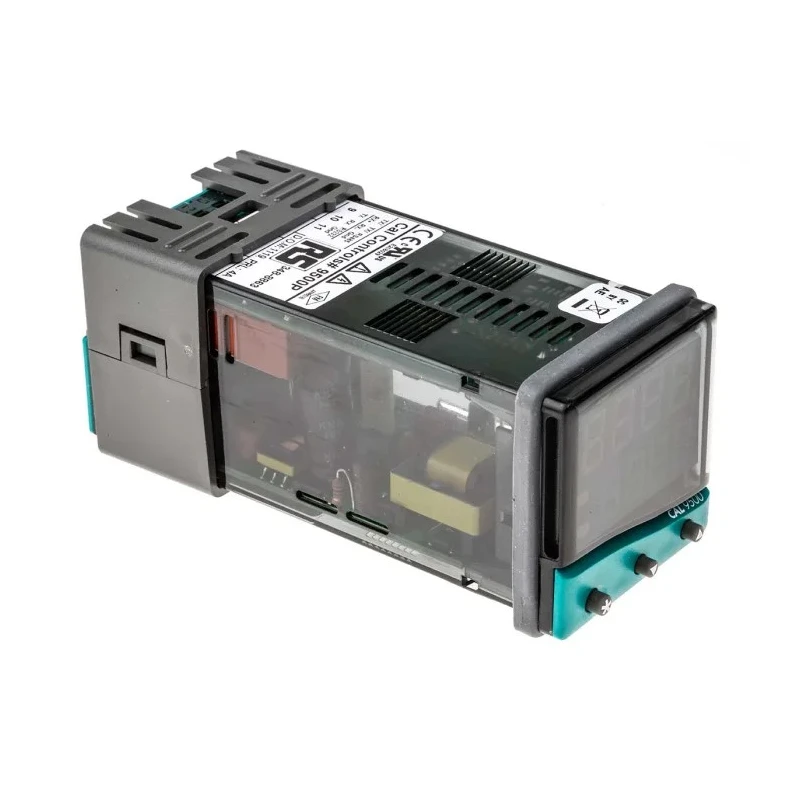

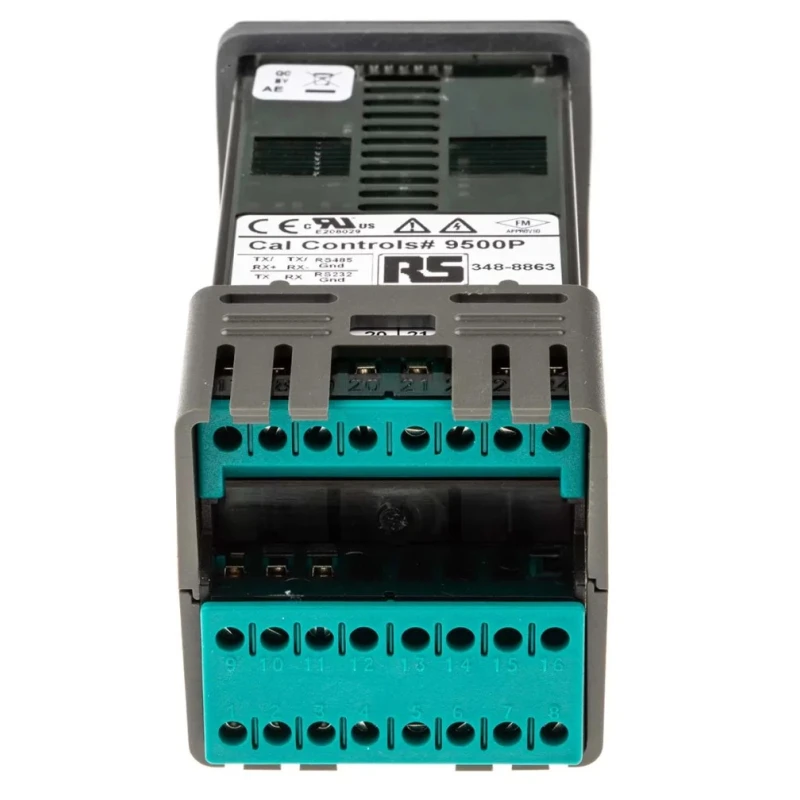

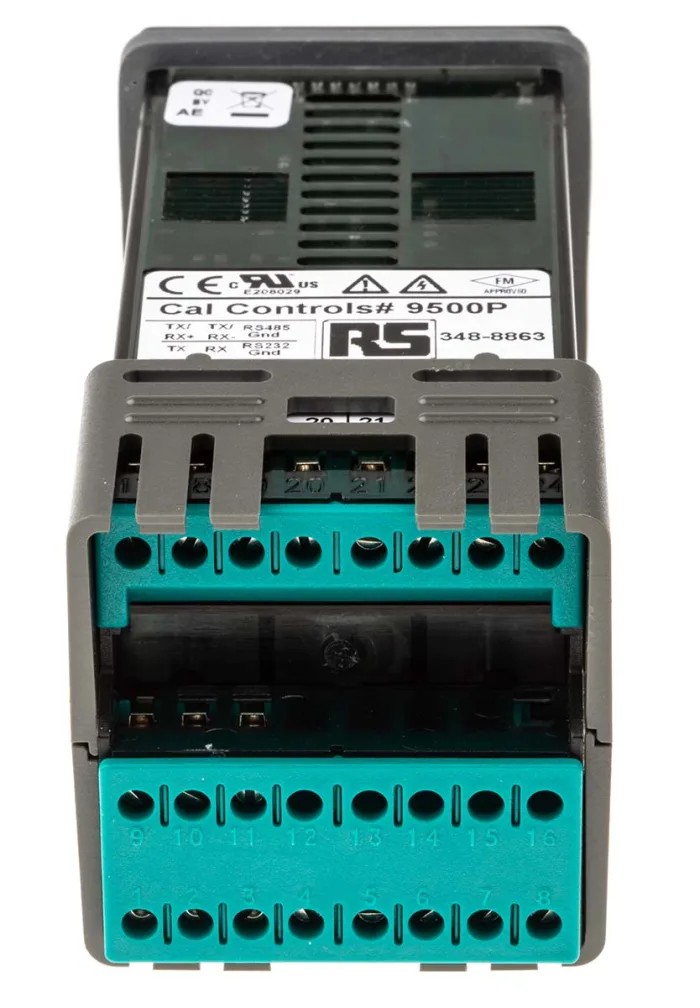

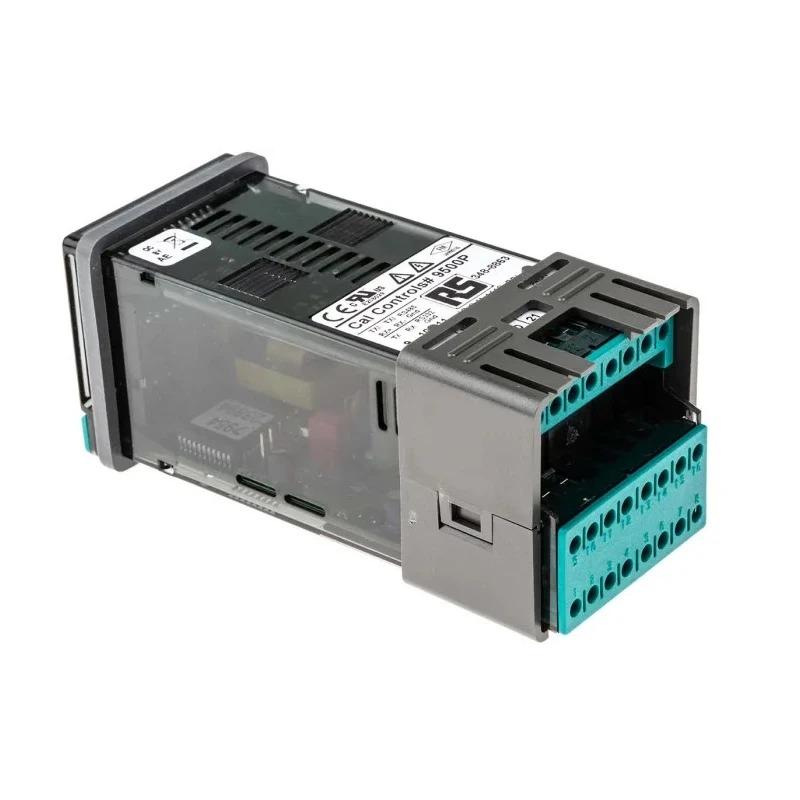

CAL 9500 Panel PID Temperature Controller, 2 Output Relay, SSD, 240V ac, Panel Mount, IP66 Rated 95001PA000

CAL 95001PA000 is a high-precision Panel PID Temperature Controller designed for rigorous industrial, laboratory, and manufacturing process control applications. It features a 240V AC supply voltage and dual output technique combining two relays and one solid-state relay to provide reliable and flexible temperature management.

The controller is built in a compact 48mm x 48mm form factor (1/16 DIN) and mounts easily on panels with a panel depth of 106.7mm. The device includes a robust smoked fascia with rubberised buttons offering an impact-resistant interface that simplifies user interaction and configuration.

Temperature control is managed accurately within a range of 0°C to 50°C, suitable for applications like bottling, beverage production, dairy, furnaces, ovens, kilns, plastics processing, and rubber manufacturing. The integrated programmer function supports up to 31 programs with 126 segments, making it ideal for complex temperature profile control.

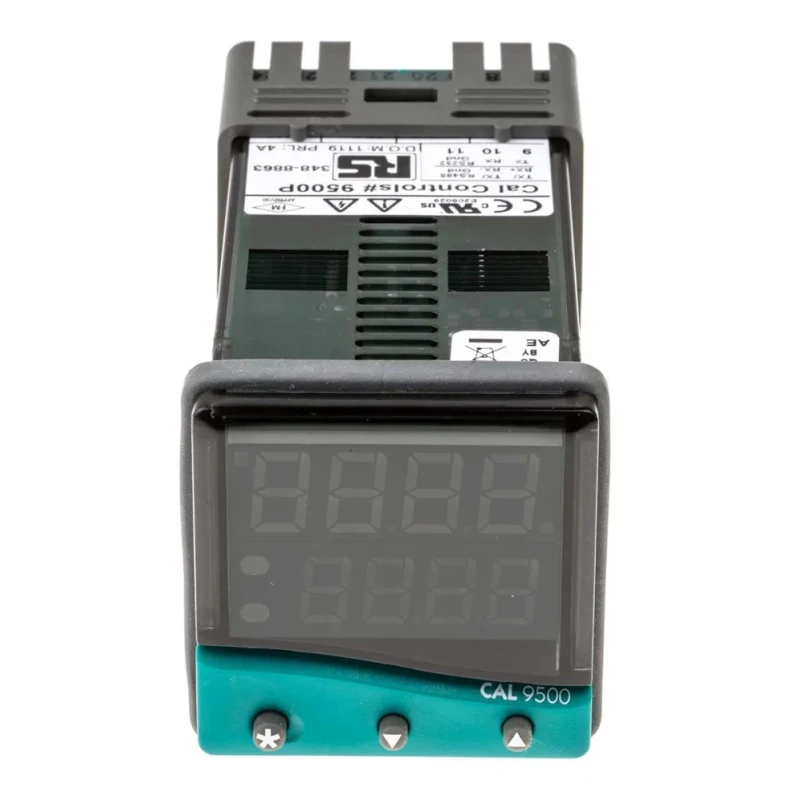

The controller displays temperature readings clearly on a 2 x 4 digit LED display, supported by two output LEDs. Its feature set includes easy auto-tuning of PID parameters and the optional CALgrafix configuration and data logging software for enhanced device programming and monitoring.

Designed for durability and compliance, the controller carries certifications including UL, FM, CE, and cUL, and is sealed to IP66 standards, protecting against ingress of dust and water, thereby ensuring dependable operation in harsh industrial environments.

Equipped with dual output types: Relay and Solid State Relay for flexible control options. Operates between 0°C to 50°C to suit various industrial environments. Compact 48mm x 48mm panel mount housing with 106.7mm panel depth for space-efficient installation.

Features a 2 x 4 digit LED display with output indicators for clear operational feedback. IP66 rated for robust protection against dust and moisture. Supports PT100 and thermocouple input sensor types to accommodate a wide range of temperature measurement requirements.

Includes simple auto PID tuning and CALgrafix software for configuration and data logging. Worldwide certifications including UL, FM, CE, and cUL ensure compliance with safety standards.

This Temperature Controller is ideally suited for industrial automation, laboratory equipment, food processing, plastics, rubber manufacturing, and scientific instrumentation. Its efficient and reliable temperature management ensures high process accuracy, minimizing overshoot and supporting complex temperature programming.

Explore the full range of temperature control solutions at EnvMart for seamless integration and reliability in your industrial processes.
