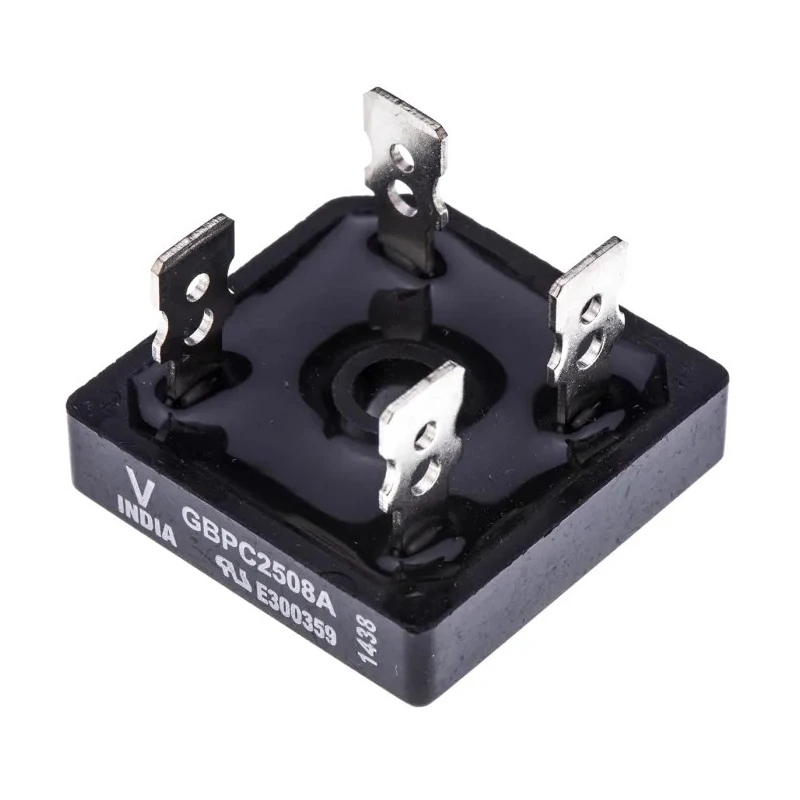

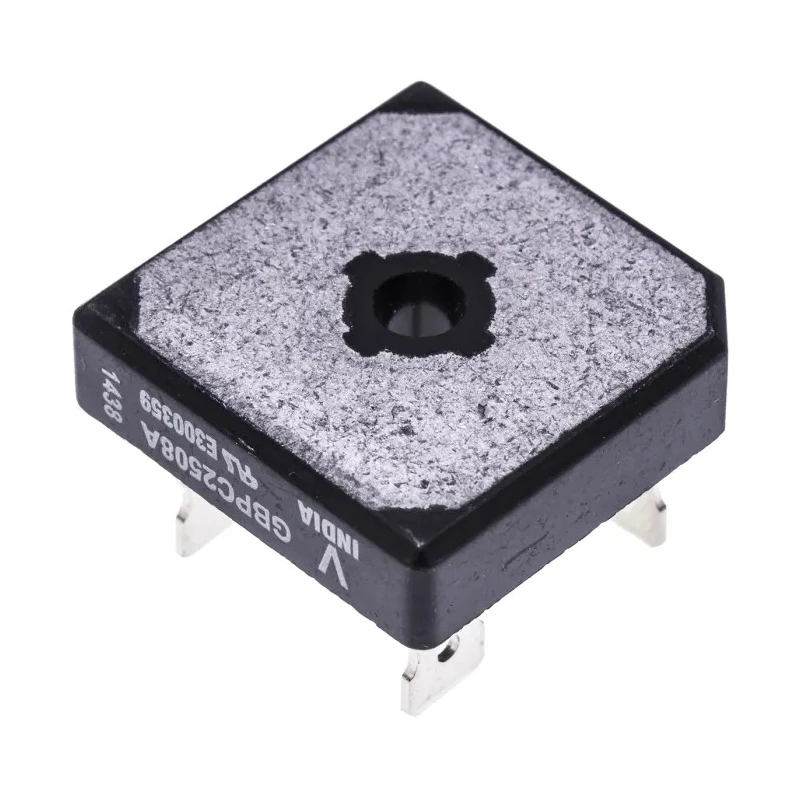

Vishay Bridge Rectifier 800 V 420 A 4-Pin Single VS-GBPC2508A

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 800 V 420 A 4-Pin Single VS-GBPC2508A

Name: Vishay Bridge Rectifier 800 V 420 A 4-Pin Single VS-GBPC2508A
Brand: Vishay
SKU: 182945
Price: 4.95 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	7.7mm
Length	28.6mm
Model	VS-GBPC2508A
Width	28.6mm
Mount Type	Screw
Series	VS-GBPC
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBPC
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	800V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	420A
Forward Current If	25A
Peak Forward Voltage Vf	1.1V
Universal, 3-way terminals	Push-on, wrap around or solder
Vishay Bridge Rectifier, 600 V 420 A, 4-Pin SingleBrand	Vishay

Key Features

The rectifier operates at a peak reverse voltage of 800 V.
It supports a forward current of 25 A and peak surge current of 420 A.
The device features a compact size with 28.6 mm length, 28.6 mm width, and 7.7 mm height.
Maximum operating temperature is 150°C, with a minimum operating temperature of -55°C.
It has a four-pin GBPC package type suitable for screw mounting.
The configuration is single-phase with low peak reverse current of 5 μA.
The peak forward voltage drop is 1.1 V ensuring efficient conduction.
Universal 3-way terminals allow push-on, wrap around, or solder connections.

Product Description

Vishay VS-GBPC2508A Bridge Rectifier is a high-performance semiconductor device designed for full-wave rectification converting AC input to DC output. Rated for a peak reverse repetitive voltage of 800 V and capable of handling a continuous forward current of 25 A, it ensures reliable operation under demanding industrial and electronic applications.

This single-phase bridge rectifier comes in a compact GBPC package with dimensions of 28.6 mm length, 28.6 mm width, and 7.7 mm height, facilitating easy integration into electronic circuits requiring efficient thermal dissipation and electrical insulation.

The device supports a peak non-repetitive forward surge current of 420 A, suitable for transient load conditions. It is rated to operate in temperature ranges from -55°C to 150°C, providing robustness in harsh environments. The low peak reverse current of 5 μA minimizes leakage, enhancing overall circuit performance.

Designed with universal 3-way terminals allowing push-on, wrap-around, or solder mounting methods, this rectifier offers installation flexibility in various application scenarios. High peak reverse voltage rating of 800 V for superior blocking capability.

Continuous forward current rating of 25 A ensures stable current conduction. Compact dimensions allow for efficient PCB layout and thermal management. Wide operating temperature range enables use in industrial and automotive environments.

Low forward voltage drop of 1.1 V for energy-efficient operation. Flexible terminal options simplify mounting and maintenance. High surge current capacity supports transient electrical loads.

This bridge rectifier is widely used in industrial electronics, power supplies, HVAC systems, and manufacturing automation where robust and efficient AC to DC conversion is critical. Vishay's reputation for quality and reliability makes the VS-GBPC2508A a trusted choice for engineers and designers.
