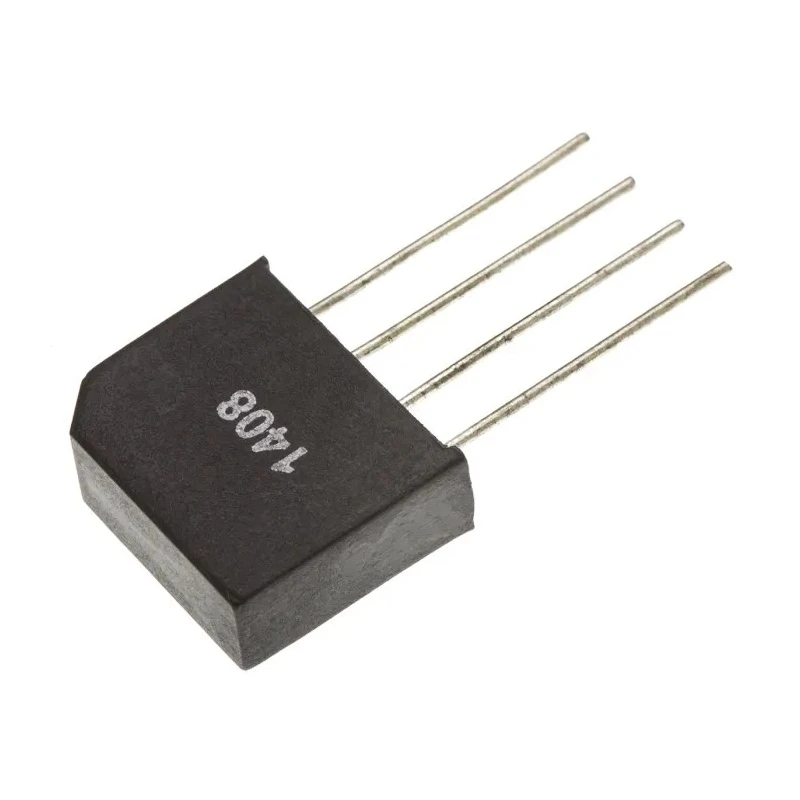

Vishay Bridge Rectifier 400 V 63 A 4-Pin Through Hole D-44 Package VS-2KBP04

The Vishay VS-2KBP04 Bridge Rectifier is a single-phase device designed for converting alternating current (AC) into direct current (DC) using a full-wave rectification method. Rated for a peak reverse repetitive voltage of 400 V and a forward current of 2 A, it can handle a surge current up to 63 A, making it suitable for industrial and consumer electronic equipment requiring robust power conversion.

Its through hole mounting and compact D-44 package with dimensions 17.5 mm length, 6.8 mm width, and 15 mm height allow for straightforward PCB mounting and integration in space-constrained designs.

The device operates efficiently within a temperature range from -40°C minimum to 150°C maximum, ensuring thermal reliability under demanding conditions. Additionally, it features a low peak forward voltage of 1 V, minimizing power loss during operation.

This rectifier is constructed by four single diodes connected to form a full bridge, ensuring consistent polarity output irrespective of AC input waveform polarity. The product meets industrial standards for discrete semiconductors and is widely employed in power supplies, battery chargers, industrial control, and various electronic circuits.

Through hole mount type for stable mounting. Compact and reliable D-44 package design. Wide operating temperature range (-40°C to 150°C). High surge current capability of 63 A. Low forward voltage drop of 1 V for efficiency.
