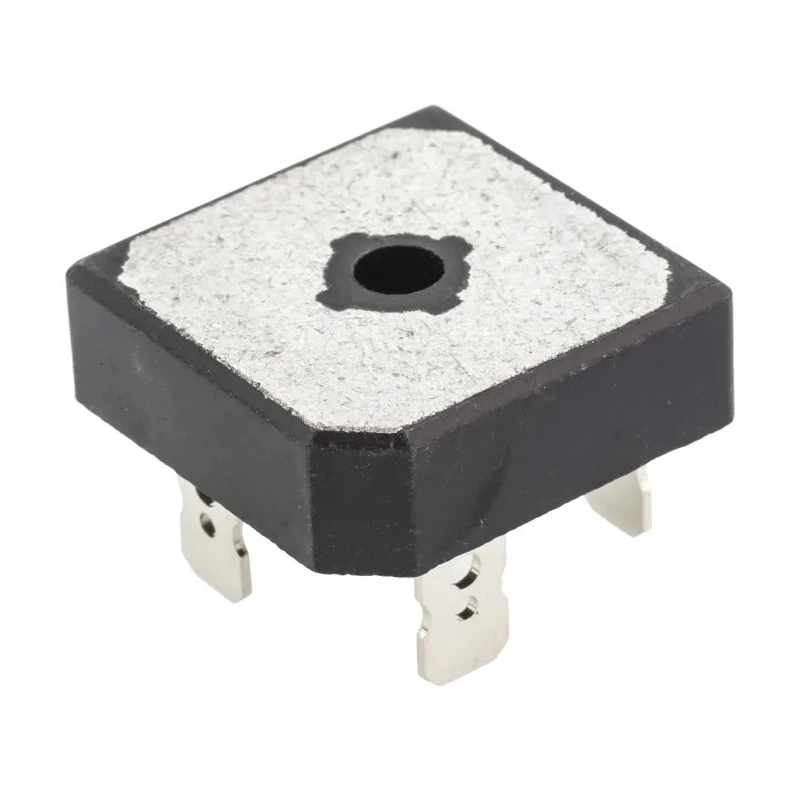

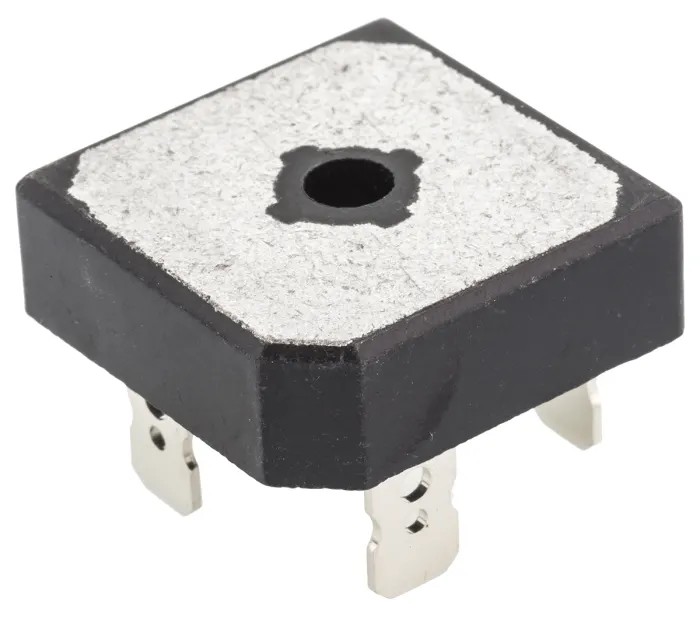

Vishay Bridge Rectifier 400 V 420 A, Single Phase, 4-Pin, Screw Mount, VS-26MB40A

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 400 V 420 A, Single Phase, 4-Pin, Screw Mount, VS-26MB40A

Name: Vishay Bridge Rectifier 400 V 420 A, Single Phase, 4-Pin, Screw Mount, VS-26MB40A
Brand: Vishay
SKU: 172289
Price: 11.9 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	9.8mm
Length	28.5mm
Model	VS-26MB40A
Width	28.5mm
Mount Type	Screw
Series	VS-26MB
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	D-34
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	400V
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	420A
Forward Current If	25A
Peak Forward Voltage Vf	1.11V
Universal, 3 way terminals	push-on, wrap around, or solder
Vishay Bridge Rectifier, 100 V 420 A, 4-Pin SingleBrand	Vishay

Key Features

Compact encapsulated single-phase design for efficient operation.
Rated for a forward current of 25 amperes and peak non-repetitive surge current of 420 amperes.
Features a screw mount type with 4-pin configuration for secure installation.
Maximum operating temperature up to 150 degrees Celsius and minimum operating temperature of -55 degrees Celsius.
High thermal conductivity electrically insulated package with nickel-plated terminals.
Universal 3-way terminals allowing push-on, wrap around, or solder connections.
Designed for general purpose and instrumentation applications in industrial settings.
Manufactured in India ensuring quality standards.

Product Description

Vishay VS-26MB40A Bridge Rectifier is a highly reliable electronic component designed for converting alternating current (AC) into direct current (DC) in full-wave rectification applications. It supports a peak reverse repetitive voltage of 400 V and a forward current of 25 A, suitable for industrial, instrumentation, and general-purpose electronic circuits.

This single-phase bridge rectifier features an encapsulated D-34 package with a 4-pin screw mount configuration, enabling secure and versatile mounting options. The universal 3-way terminals support push-on, wrap around, and solder methods, improving installation flexibility.

The device operates reliably within a temperature range of -55°C to +150°C due to its high thermal conductivity and electrically insulated casing. Nickel-plated terminals allow soldering using lead-free SAC305 alloy at temperatures between 260°C and 275°C, ensuring environmental compliance.

With compact dimensions of 28.5 mm in length, 28.5 mm in width, and 9.8 mm in height, the VS-26MB40A provides an excellent power-to-volume ratio. The bridge rectifier is UL E300359 approved, underscoring its quality and safety for industrial use.

Typical uses include power supply circuits, industrial control systems, instrumentation, and any application requiring efficient AC to DC conversion with high surge current capability.

Compact encapsulated single-phase design for efficient operation. Rated forward current of 25 amperes and peak surge current of 420 amperes. Screw mount type with 4-pin configuration. Wide operating temperature range from -55°C to 150°C.

Universal 3-way terminals with push-on, wrap around, and solder options. Nickel-plated solderable terminals supporting lead-free solder. High thermal conductivity and electrically insulated package. Compact dimensions: 28.5mm x 28.5mm x 9.8mm.

UL E300359 approved ensuring safety and compliance. Made in India. Explore more Bridge Rectifiers and semiconductor components on EnvMart for your electronic design and industrial needs.
