Vishay Bridge Rectifier 1000 V 52 A Through Hole 4-Pin Single VS-1KAB100E

Free Delivery in India | Lowest Global Shipping Charges

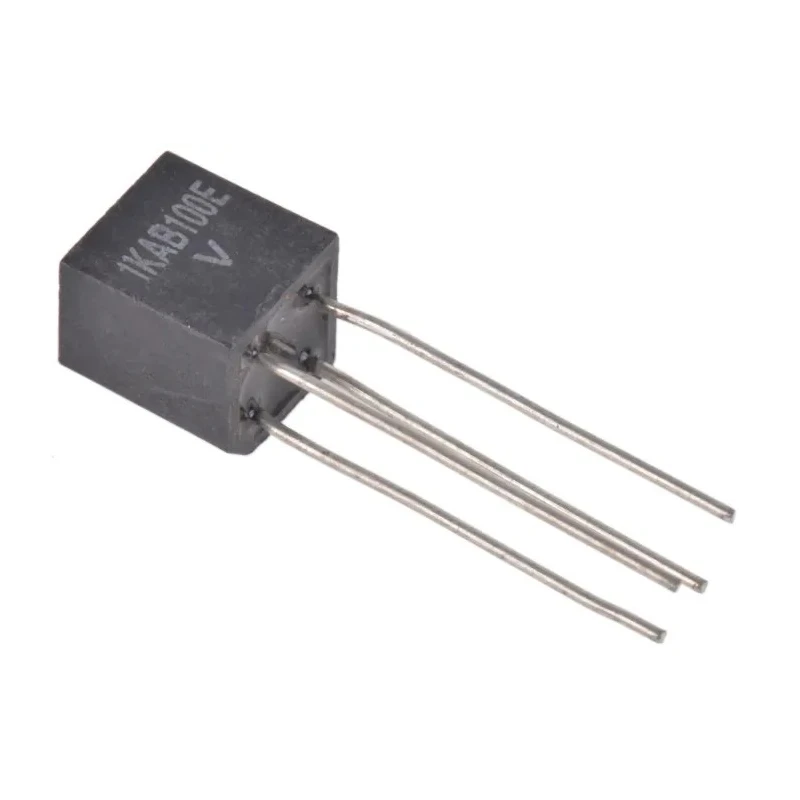

Vishay Bridge Rectifier 1000 V 52 A Through Hole 4-Pin Single VS-1KAB100E

Name: Vishay Bridge Rectifier 1000 V 52 A Through Hole 4-Pin Single VS-1KAB100E
Brand: Vishay
SKU: 182920
Price: 1.79 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	10mm
Length	9.5mm
Model	VS-1KAB100E
Width	9.5mm
Mount Type	Through Hole
Series	VS-1KAB-E
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	D-38
Minimum Operating Temperature	-40°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	52A
Forward Current If	1.2A
Peak Forward Voltage Vf	1.1V
Vishay Bridge Rectifier, 800 V 52 A, 4-Pin SingleBrand	Vishay

Key Features

Designed for through hole mounting with a D-38 package type.
Operates reliably between -40°C to 150°C maximum temperature.
Features a peak forward voltage of 1.1 V and a peak reverse current of 10 μA.
Compact dimensions of 9.5 mm length, 9.5 mm width, and 10 mm height.
Ideal for full-wave rectification applications providing stable DC output from AC input.
Series VS-1KAB-E ensures high reliability and maximum thermal performance.
Manufactured in India with no automotive standard certifications.

Product Description

Vishay VS-1KAB100E Bridge Rectifier is a high-performance semiconductor device designed for converting alternating current (AC) input into direct current (DC) output for full-wave rectification tasks in electronic circuits.

This bridge rectifier offers a peak reverse repetitive voltage rating of 1000 V and a substantial forward current capacity of 52 A, providing robust and reliable operation in diverse industrial and electronic applications.

Featuring a 4-pin single configuration with a D-38 package and through hole mounting type, the device is compact with dimensions of 9.5 mm in length, 9.5 mm in width, and 10 mm in height, making it suitable for efficient PCB assembly and reliable thermal performance.

The VS-1KAB100E operates over a wide temperature range from -40°C minimum to a maximum of 150°C, ensuring stable performance even in demanding environmental conditions. This bridge rectifier exhibits a peak forward voltage of 1.1 V and a very low peak reverse current of 10 μA, contributing to efficient power conversion and minimal losses.

The product series VS-1KAB-E by Vishay is known for its compact wire-lead design, facilitating easy assembly and inventory management while delivering high reliability and excellent thermal characteristics for industrial, commercial, and laboratory electronics.

Designed for through hole mounting with a D-38 package type. Operates reliably between -40°C to 150°C maximum temperature. Features a peak forward voltage of 1.1 V and a peak reverse current of 10 μA. Compact dimensions of 9.5 mm length, 9.5 mm width, and 10 mm height.

Supports full-wave rectification applications with high surge current capacity. Manufactured in India with no automotive standard certifications.

This Vishay bridge rectifier is ideally suited for use in power supplies, industrial electronics, and electronic equipment requiring stable, efficient AC to DC conversion with high reliable surge current handling and thermal stability.
